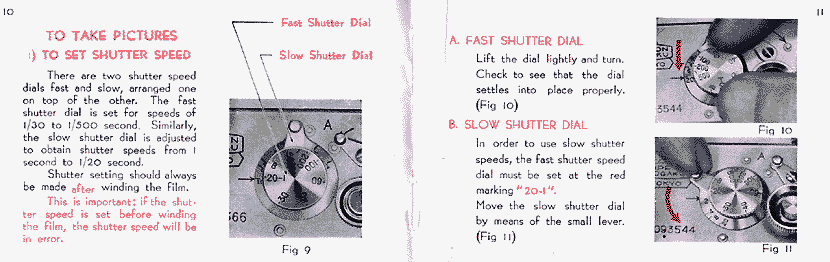

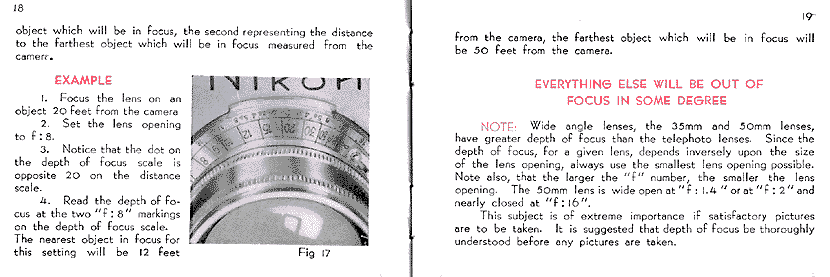

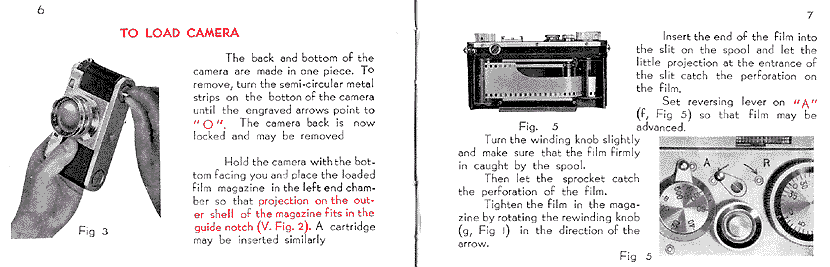

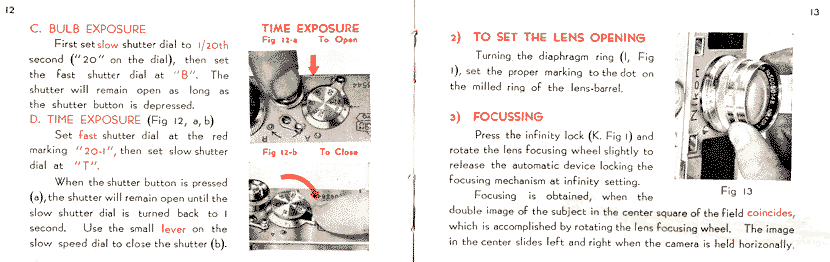

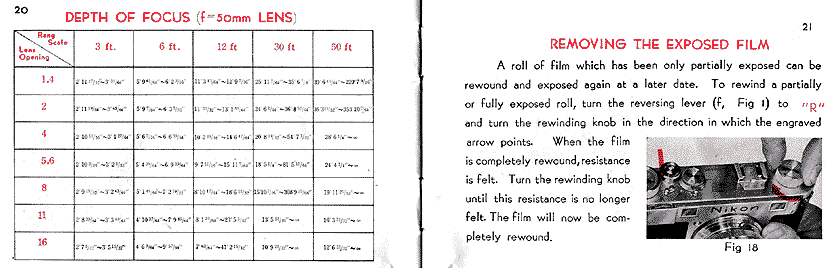

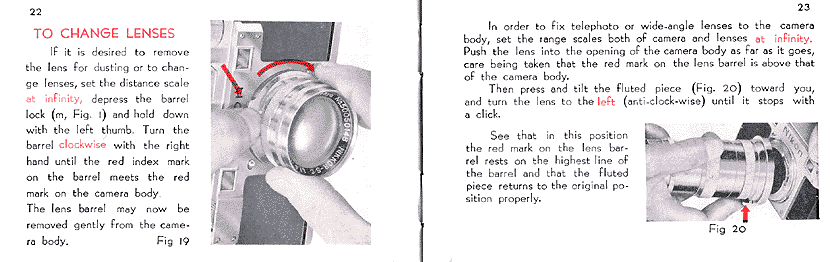

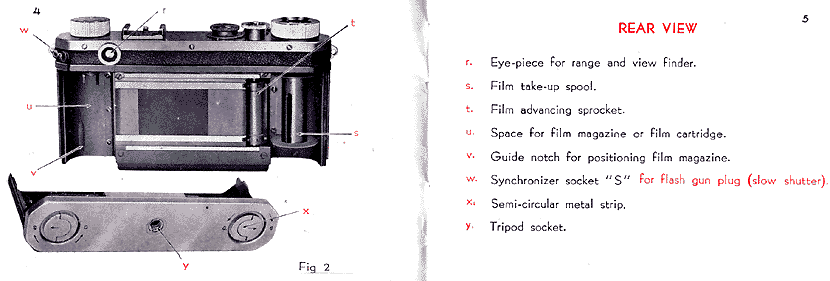

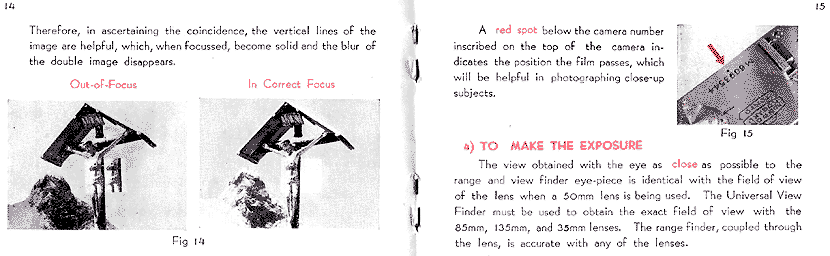

Modern Classic Series : Nikon S Rangefinder camera Instruction Manual

File size: 63K HTML Loading....

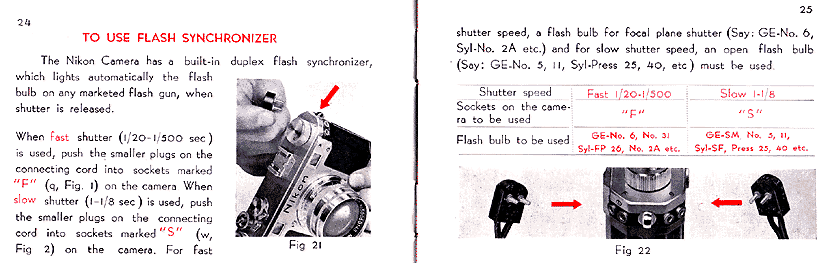

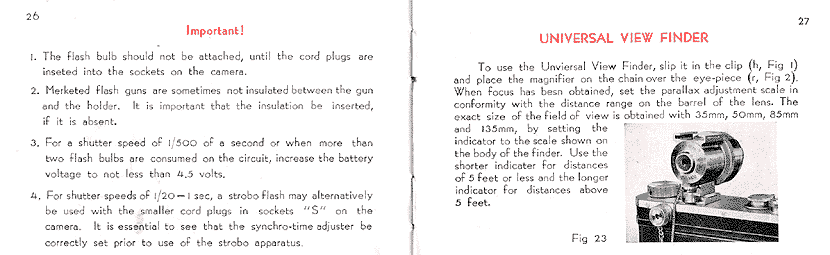

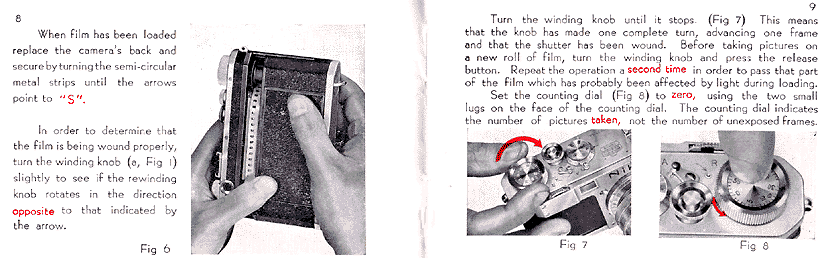

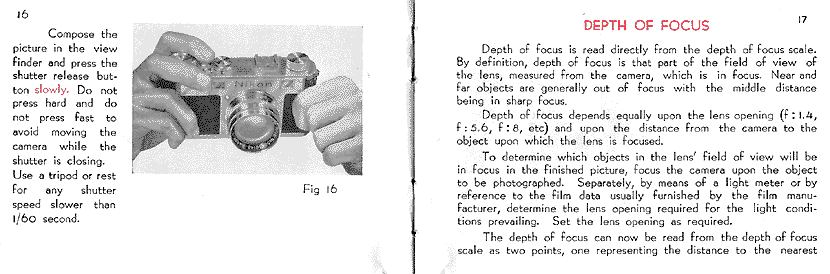

Sorry... you may think quality aspect of this Nikon S rangefinder camera user's manual is a little less desirable. Well, I could create a much better version in my own way but in order to preserve the original "flavor" of an old vintage camera as well as the '50 printed media which, indirectly reflects the printing technology used during that era, I have decided to retain the various copies in their original form via scanning. It was not a lazy job but I would like to present it this way. However, I have tried to reduced the image size for each of this scanned copies in order to improve their download speed for you (each Gif file approx. 28k ~ 41k) measures 830 pixels (Width)..
