Nikon S2 Rangefinder camera
User's/ Instruction Manual -Index Page


File size: 63K HTML Loading....

Instruction Manual Nikon S2 front and rear cover

IMPORTANT NOTE:

This instruction manual is NOT prepared by me. The original scanned copies were found on rangefinderforum via a post by Mr.RRAMIG where you should use the source as the reference for this Nikon S2 manual. What I did was to recompile the images and made them easier to view refer/ download as reading references. Further, should one day the Company decides to abadone the manual, at least just let this section be an archive or mirror their original scanned works. If you fnd it useful, you should SEND A THANK YOU NOTE to Mr. Mr.RRAMIG@ranefinderforum

The pages are good if you are only interested in certain segement of information. But if you prefer a full scale PDF form of instruction manual for this camera, you can DOWNLOAD A COPY HERE (EXTERNAL LINK via NIKON WEB.COM)

For other issues, you may use the | Message Board | to post your view(s).and or question(s) that relate to the Camera/Lenses.

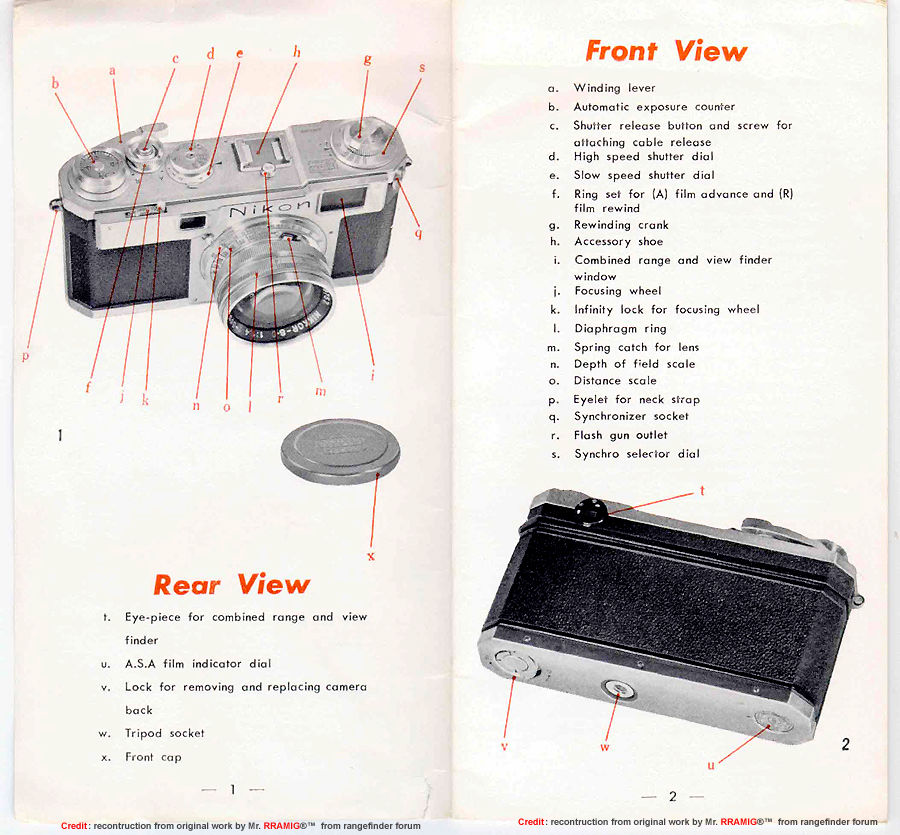

Instruction Manual Nikon S2, Page 1-2 nomencluture

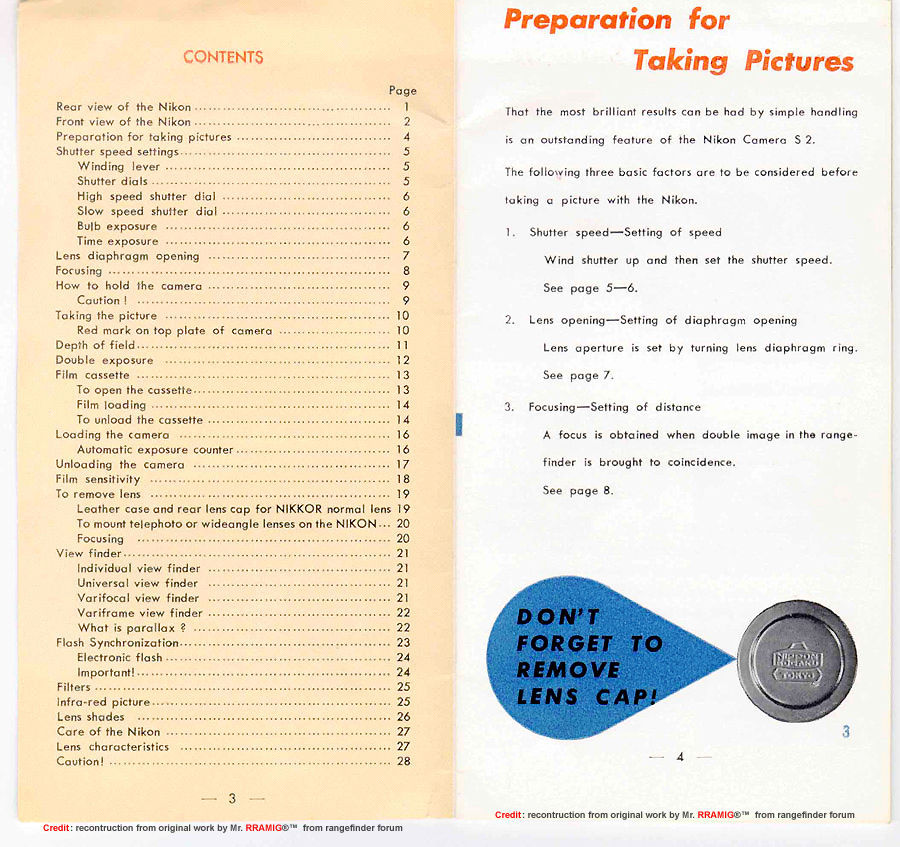

Instruction Manual Nikon S2, Page 2/3 index



Page 1 ~ Page 4


Instruction Manual Nikon S2, Page 4/5 preparing the setup of S2 camera

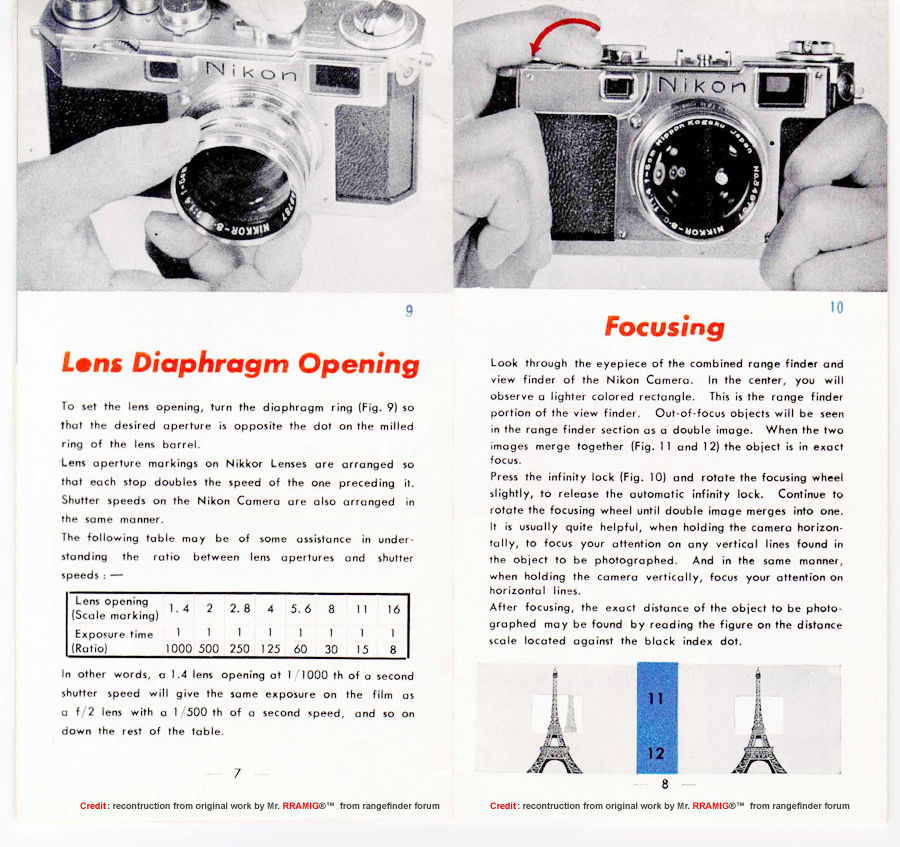

Instruction Manual Nikon S2, Page 7/8 lens diaphragm and focusing



Page 5 ~ Page 8

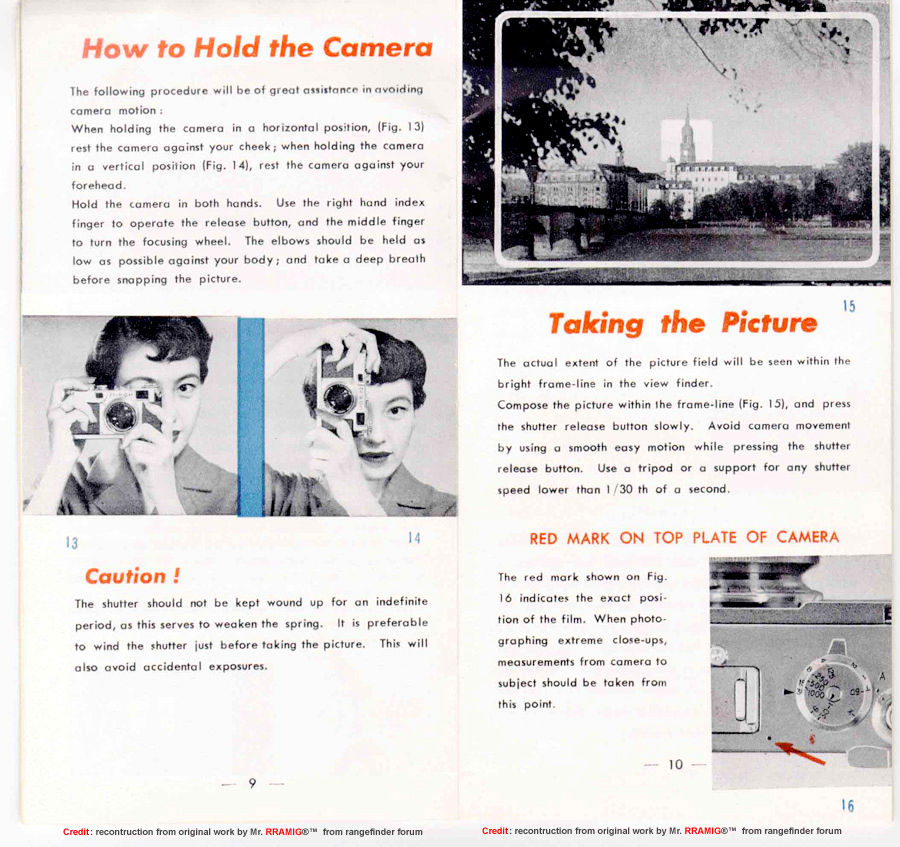

Instruction Manual Nikon S2, Page 9/10 setup up and handling

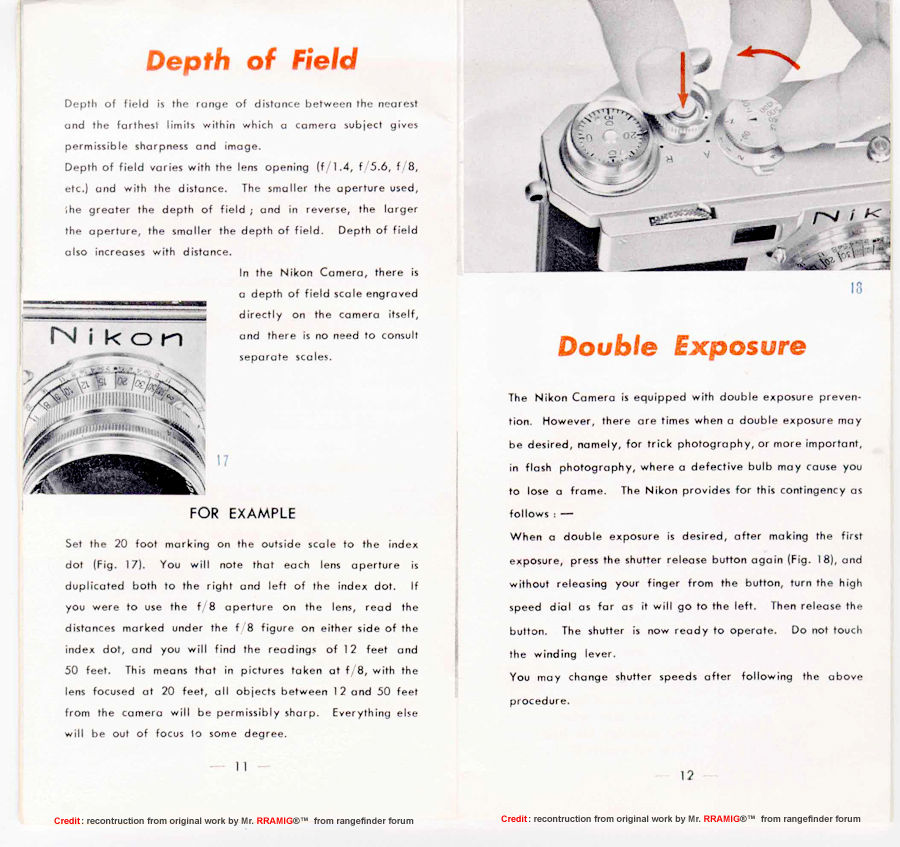

Instruction Manual Nikon S2, Page 11/12 Depth of field handling and double exposure



Page 9 ~ Page 12


Instruction Manual Nikon S2, Page 13/14 Film cassette and film loading

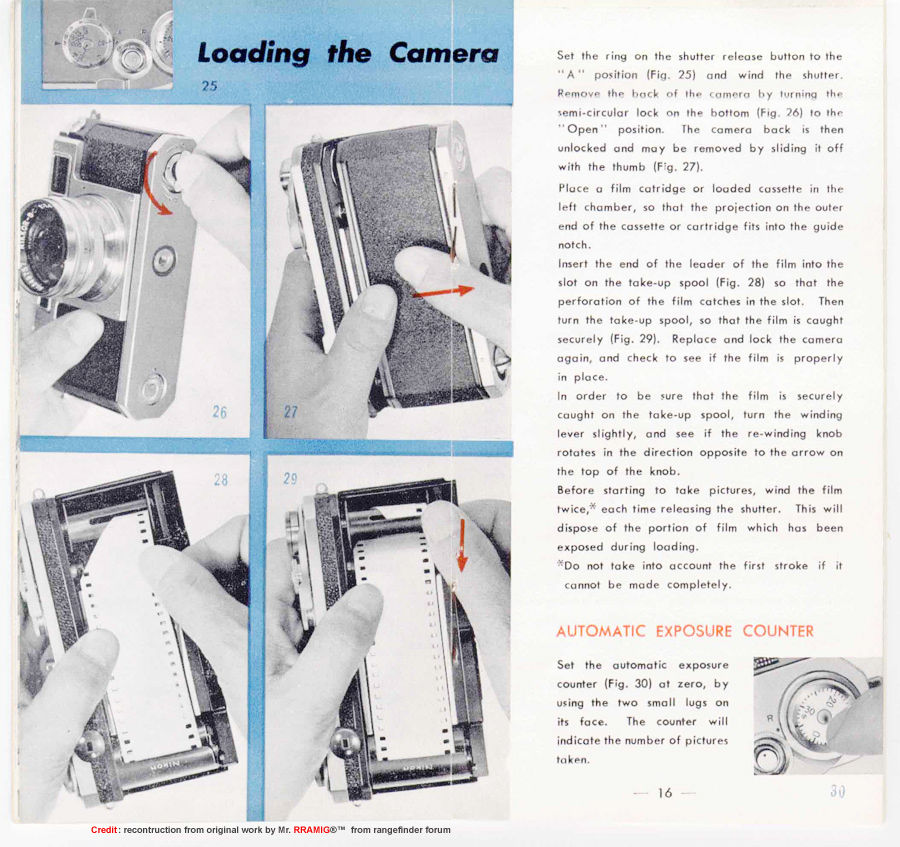

Instruction Manual Nikon S2, Page 15/16 loading film and counter reset



Page 13 ~ Page 16

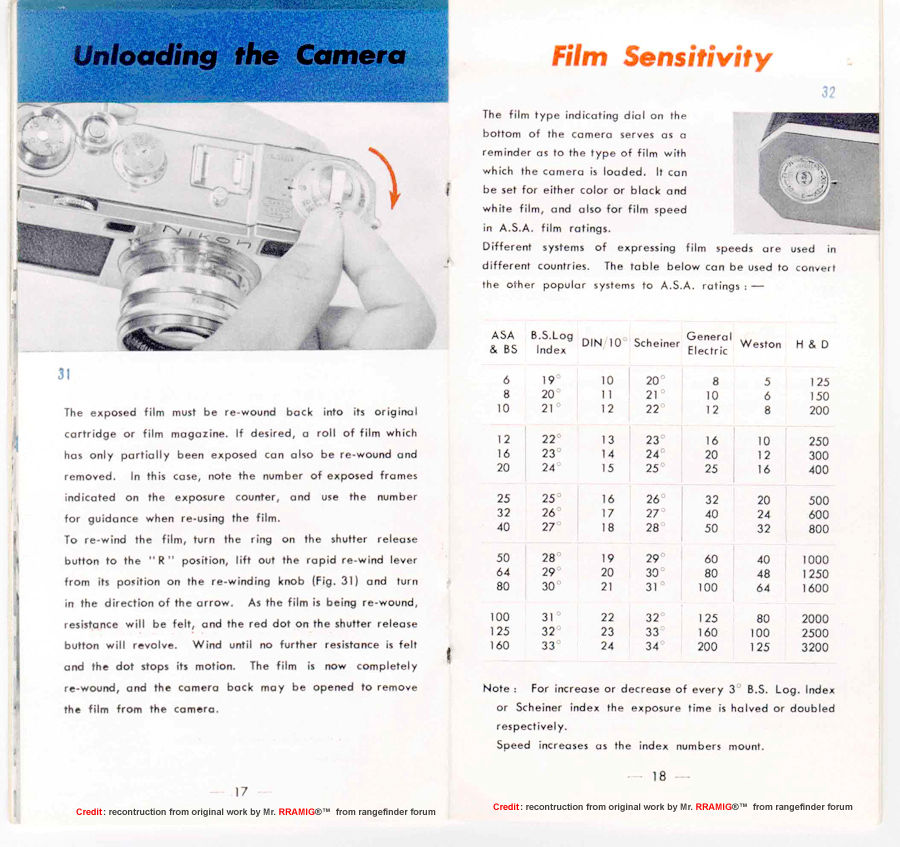

Instruction Manual Nikon S2, Page 17/18 unloading film from camera and film sensitivity guide

Instruction Manual Nikon S2, Page 19/20 mounting and lens removing



Page 17 ~ Page 20


Instruction Manual Nikon S2, Page 21/22 Viewfinder options

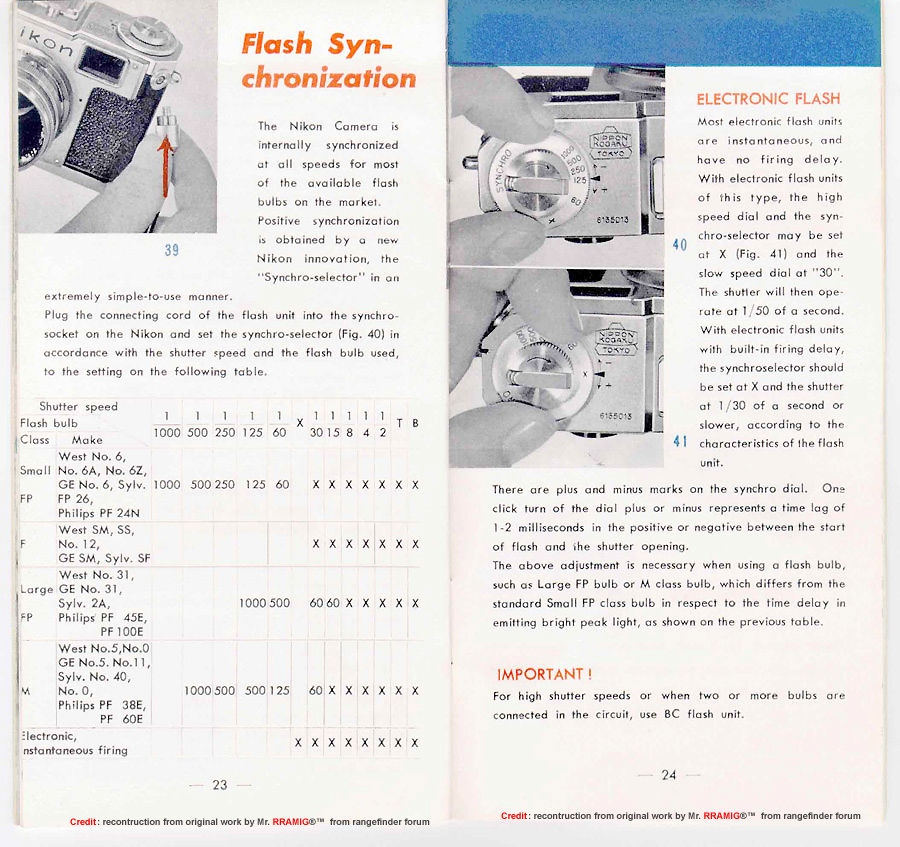

Instruction Manual Nikon S2, Page 23/24 Flash handling and sync



Page 21 ~ Page 24

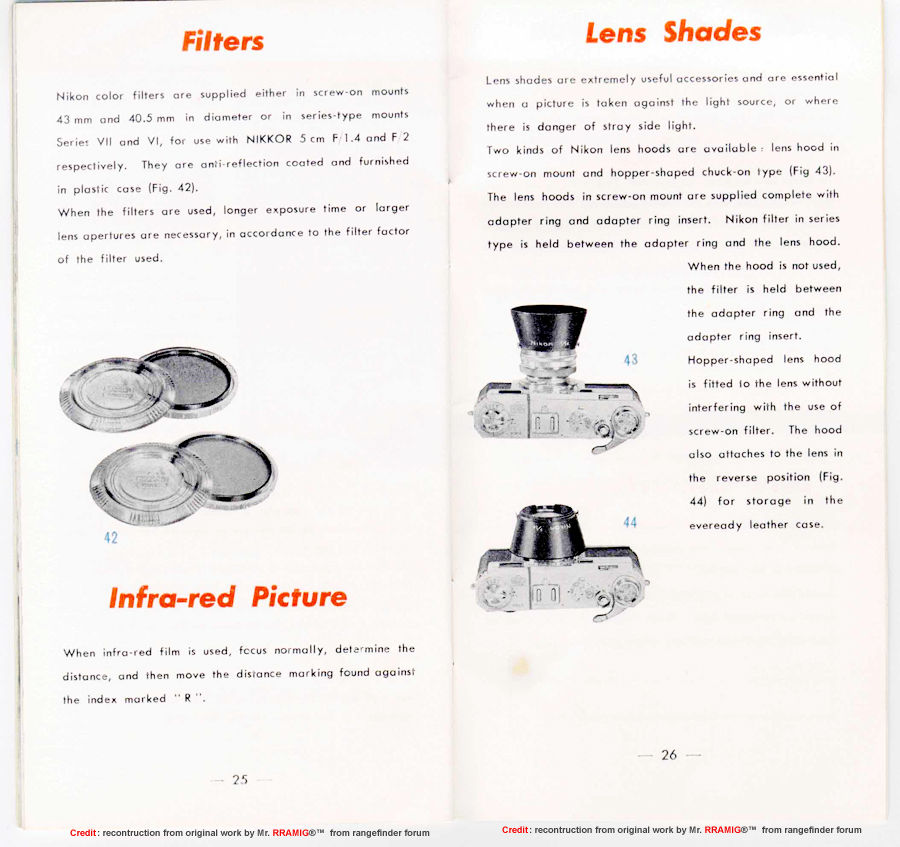

Instruction Manual Nikon S2, Page 25/26 Filter, Infra red picture and lens hood/shades

Instruction Manual Nikon S2, Page 27/28 lens characteristic and importnat notes on camera maintenance



Page 25 ~ Page 28

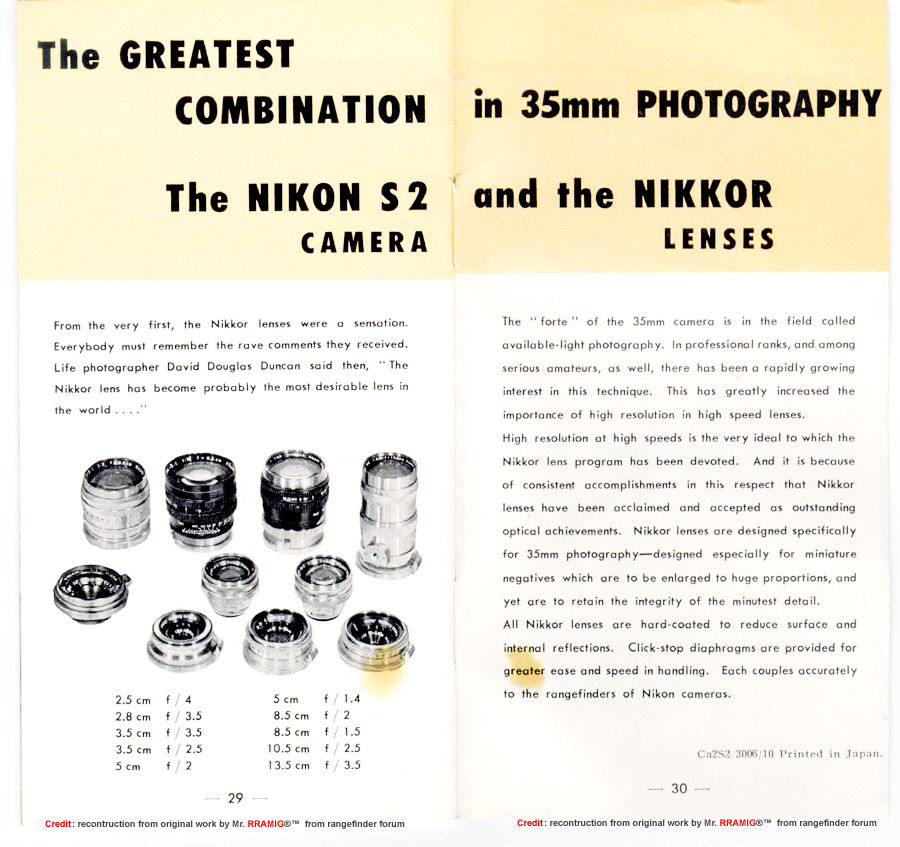

Instruction Manual Nikon S2, Page 29/30 Guide to Nikkor lenses for rangefinder cameras

| Back to Nikon Instruction Manual Section | | Back to Nikon Nikkor Rangefinder Lenses Section |

Others: RF Nikon SP Chrome | RF-Nikon SP Black Chrome | RF-Nikon SP Limited Edition | RF Nikon S2 | RF Nikon S2 Black Dial | RF Nikon S3 | RF-Nikon S3 Motor | S3 Chrome/Black Y2k

Page 29 ~ 30
