MODEL: EOS-10QD; EOS 10s in N. America; An EOS-10S (US), EOS 10 Commemorative Kit for 60 Million Units was introduced in August 1991.
Marketed: March, 1990
Type: Still 35mm focal plane shutter SLR (Single-Lens Reflex) camera with autofocus, auto exposure and built-in motor drive.
Price: 90,000 yen (QD model, body only); 40,000 yen (with packaged lense Canon EF 35-135mm f/4.0-5.6 USM),
Lens Mount: CANON EF mount (electronic signal transfer system).
Usable Lenses: Canon EF lenses (full aperture metering only)
Viewfinder Type: Fixed eye level pentaprism. 0.74 x magnification with 50mm lens at infinity.
Eye point: 19 mm
Field of View: V-92%; H-92%
Viewfinder Information: Displayed at the bottom of the viewing area.
1. Three focus marks
2. 7 -segment LCD digit and character display
(1) Shutter speed - blinks at 2Hz for out-of-coupling range warning.
(2) Aperture value - blinks at 2Hz for out-of-coupling range warning.
(3) Depth-of-field AE - dEP 1, dEP 2
(4) Camera-shake alert indicator -
(5) Metered manual exposure level -
(6) AF in-focus indicator - (Blinks at 8Hz when AF is not possible)
(7) Flash-charge completion indicator -
(8) AE lock indicator -
(9) Exposure compensation indicator -Dioptric Adjustment: Built-in eyepiece is adjusted to standard -1 diopter.
Focusing Screen: New lazer-matte screen with three AF marks.
Mirror: Quick-return half-mirror
Shutter: VerticaJ-travel, focal plane shutter with soft-touch electromagnetic release and all speeds electronically controlled.
Shutter Speed: 30 sec. - 1/4000 sec., B. X-sync at 1/125 sec. (hot shoe). Shutter speed can be set in half-stop increments. Built-in electronic self-timer (with blinking LED). Built-in interval timer for intervals from 1 sec. to 23 hr. 59 min. 59 sec. for frames 2 to 36.AUTOFOCUS
AF Control System: TTL-SIR (Secondary Image Registration) phase detection type using multi. BASIS (Base-Stored Image Sensor).Three modes available: One-shot, Al servo with Focus Prediction and AI focus that automatically switches to One-shot or AI servo according to the subject.
Manual focusing also possible.
Focusing Point: Set by camera or manual input.
AF Working Range: EV 0-18 at ISO 100.
AF Auxiliary Light: Automatically projected when necessary. Light through an LED (peak sensitivity: 695 nm) coupled to the focusing point. Effective focal length: from 35mm to 135 mm. Effective distance range: 1-7m/ 3.3-23 ft for the central area, 1-4m / 3.3-13.1 fi: for the peripheral areas.EXPOSURE CONTROL
Light Metering: TTL full aperture metering using SPC (Silicon Photocell). Two metering patterns available: 8-Zone New Evaluative Metering, partial metering approx. 8.5 % of the central picture area.
Metering Range: EV -1 to 20 at normal temperature (conversion with 50mm f/ 1.4 at ISO 100).
Shooting Modes:
1. Standard position (Intelligent program AE)
2, Programmed Image Control 1) Portrait 2) Landscape 3) Close-up 4) Sports
3. Bar-code program (according to the input program)
4. Intelligent program AE with variable program shift function
5. Shutter-Priority AE
6. Aperture-Priority AE
7. Depth-of-Field AE
8. Camera-shake Alert
9. Manual
10. Flash AE (A-TTL or TTL program flash AE with built-in flash)
Camera Shake Warning; Operates for program AE (P), aperture priority AE (AV), Depth-of-field AE (DEP) and Camera-shake Alert The camera emits the camera shake warning beeper tone when the automatically-set shutter speed becomes 0 to 0.5 steps slower than "1/focal length of the lens in use:" ' Beeper can be canceled with Custom Function # 6.
Multiple Exposures: Up to nine exposures can be preset. Automatically cleared upon completion.
Exposure Compensation: + 5 stops in 112 stop increments
Automatic Exposure Bracketing: + 5 stops in 1/ 2 increments. Three continuous exposures are taken in sequence: one under, one at the standard metered value and one over.
Depth-of-Field Check: With Custom Function #11 by pressing the Partial metering button.FILM TRANSPORT
Film Speed Setting: ISO 6-6400 automatically set in 1/3 -stop increments according to DX code. Can also be set manually.
Film Loading: Automatic with IRED (infrared emitting diode) control
Film Advance: Automatic. Two modes available: (single Frame) and (Continuous at up to 5 fps.)
Film Rewind: Automatic- (approx. 8 sec. with 24-exp. film at normal temperature). Mid-roll rewind also possible.FLASH System
Type: Located on pentaprism hump. Auto retractable head. TTL automatic flash fires automatically in low-light or backlit condition in certain shooting modes. The flash cannot be combined with an external flash.
Guide Number: 12m/ 39.3 ft at ISO 100
Recycling Time: Approx. 2 sec.
Flash Coverage Angle: Equivalent to the coverage angle of a 35mm lens
Flash Coupling Range: 1-4.3 m / 3.3-14.1 ft at IS0100
Flash Duration: 1.0 ms or less
Color Temperature: Equivalent to daylight
Power Source: Same as the bodyPOWER SOURCE
Battery: One, six-volt Lithium battery pack (2CR5). Replaced by removing grip.
Battery Check: Automatic by turning the camera on. Indicated by a 4-step display on the LCD panel.
Shooting Capacity (with 24-exp. film):OTHERS
Remote control: Possible by using an optional remote controller.
Self-timer: Electronically controlled with a 10-sec. delay
Data Display: In the viewfinder and ICD display panel.
Custom Functions: 15 combinations
DIMENSIONS
Size: 6-1/4" (W) x 4-3 /16' x (H) x 2-3 /4" (D) (158mm X 106mm X 70mm) Weight: 580 g (20.3 oz.) without battery. 620 g (21.7 oz.) with battery. All data are based on Canon's Standard Test Method. Subject to change without notice.CANON EOS-10QD- Specification
Type: Built in date and /or time imprint function using dot LED with automatic calendar
Automatic Calendar: Programmed from 1990 to 2099 (compensates automatically for long and short months and leap years)
Clock Precision: Variation of ± 30 sec or less per month at normal temperature
Date Imprint Format: 1)Year/Month/Day; 2) Month/Day/Year; 3) Day/Month/Year; 4) Day/Hour/Minute * Imprint can be turned off if desired. Year, month, day, hour and minute can be imprinted together with Custom Function #15
Continuous Imprinting Capacity: Possible up to 5 fps
Light Intensity: Automatically set according to the DX code (ISO 80-1600 in 1/3 -step increments)
Power Source: Same as the body

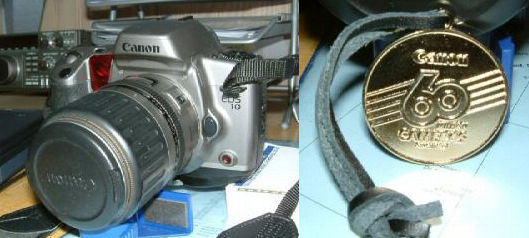

<<< -- A limited number of the EOS10s were produced in 1991/2 with a special titanium-finish and some dealers were receiving some half transparent promotional copies.An EOS-10S (US), EOS 10 Commemorative Kit for 60 Million Units was introduced in August 1991.
" ....rather special EOS 10 camera complete with its matching 35-135 canon ultrasonic lens. This particular camera was produced in a silver/grey finish instead of the normal black finish to commemorate Canon selling 60 million camera's worldwide,it actually comes with a gold medal to show this!!The medal is numbered, no: GB0729 of I assume 1000 cameras? It also comes with a bar-code reader to enable you to input preset settings. Also comes with the instruction book but alas, not the original box... " - Clive -
Credit: Image courtesy of Mr. Clive Hindmarch ® <superspotter@btopenworld.com>. Image copyright © 2003. All rights reserved. Please respect the visual property of the contributing photographer.DIMENSIONS
Size: Same as the EOS 10
Weight; 585 g (20.4 oz.) without battery 625 g (21.8 oz.) with batteryNaturally, the Canon FOS 10QD camera will give optimum performance together with specially designed Canon EF lenses, flash units and other Canon brand accessories. It is possible that the use of incompatible lenses or other accessories may result in unsatisfactory performance (or even damage) to your Canon EOS 10. It is therefore Canon suggest the use of Canon EF lenses and accessories.
