Additional Information on:
Canon T80 Camera, 1985 with three dedicated AC lenses
Canon 50mm f/1.8, Canon AC-Zoom 35-70mm f/3.5~4.5 and Canon AC 75-200mm f/4.5 zoom lenses


File Size: HTML Page (25k) Loading ..

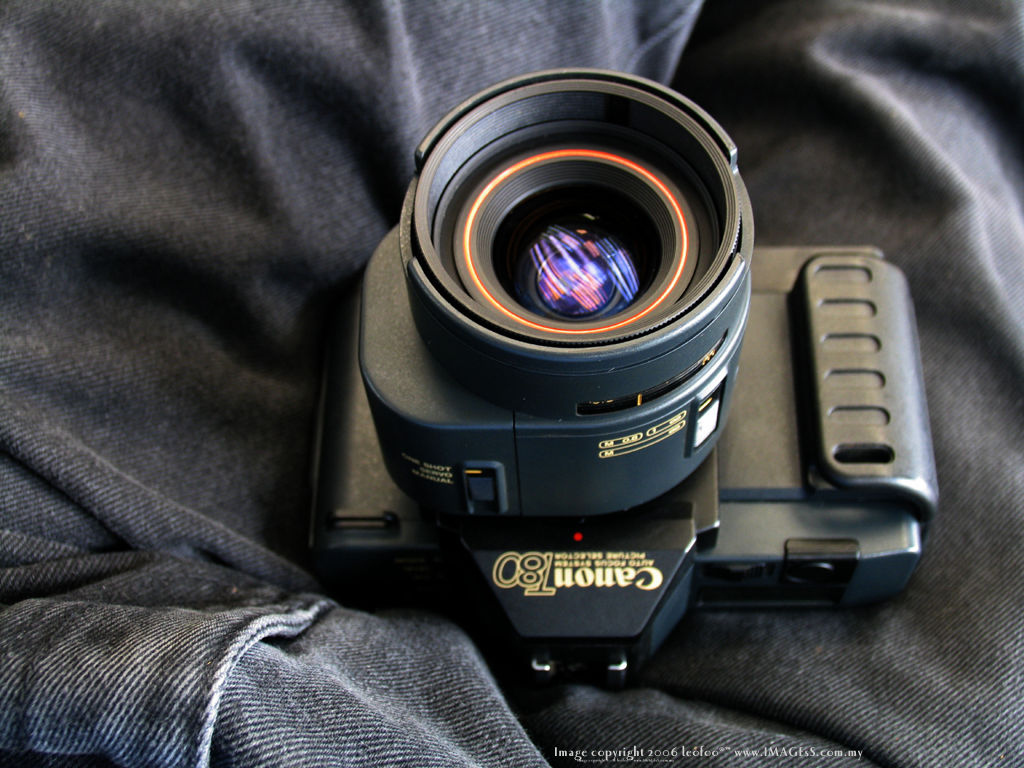

Canon AC 35-70mm f/3.5~4.5 zoom lense for FD mount Canon T80 Autofocus SLR camera

Credit: EK Wong for lending his personal collection of the Canon T80 (he got THREE complete sets with all the three AC lenses, no joke !!)

CanonT80 databack 80

Canon T80 front view

Canon T80 rear view

Rear view with Canon Data Back 80
90k Jpeg

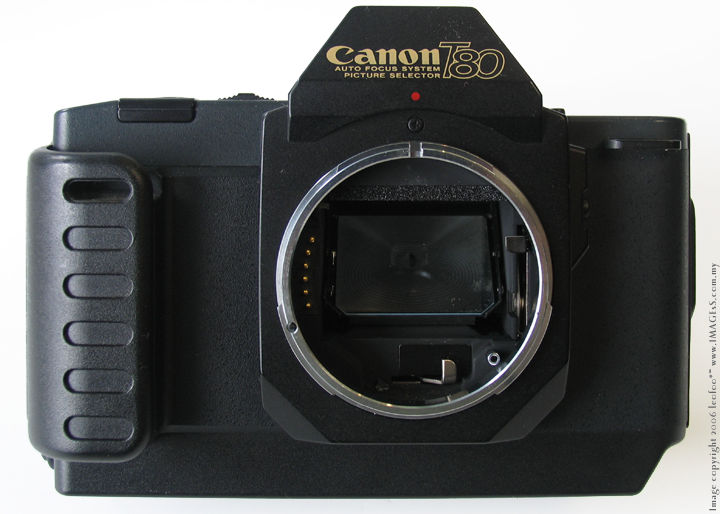

Front view with lens removed
60k Jpeg

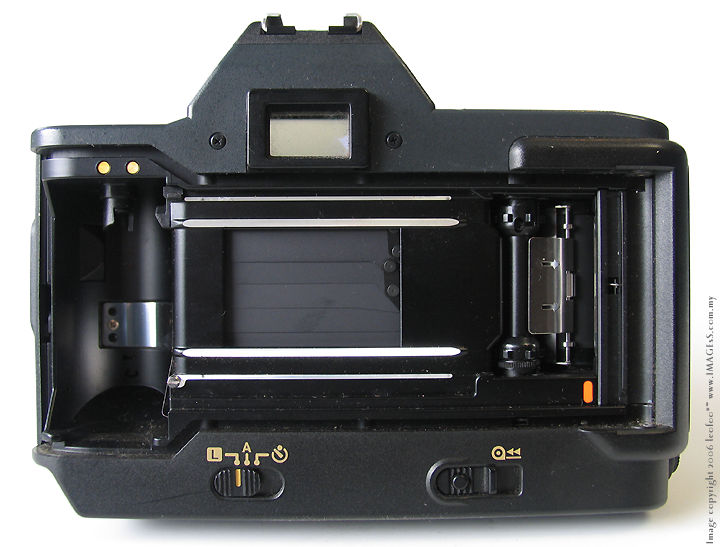

Rear section with Film Back removed 70k Jpeg

Canon T80 top view

Canon T80 base view

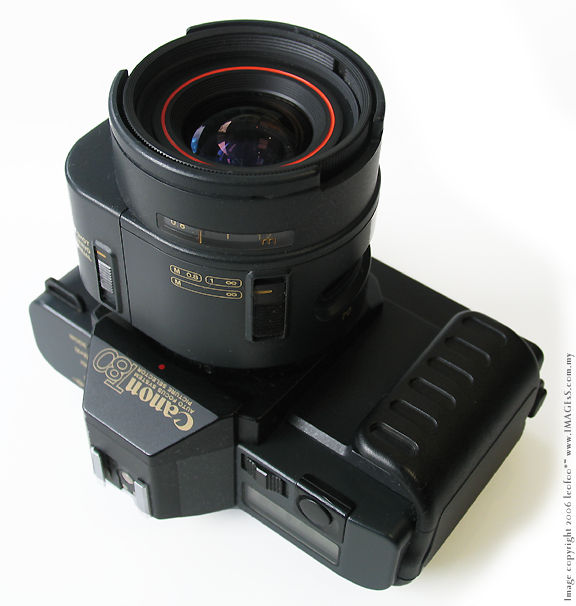

Canon T80 top view with 35-70mm AC zoom

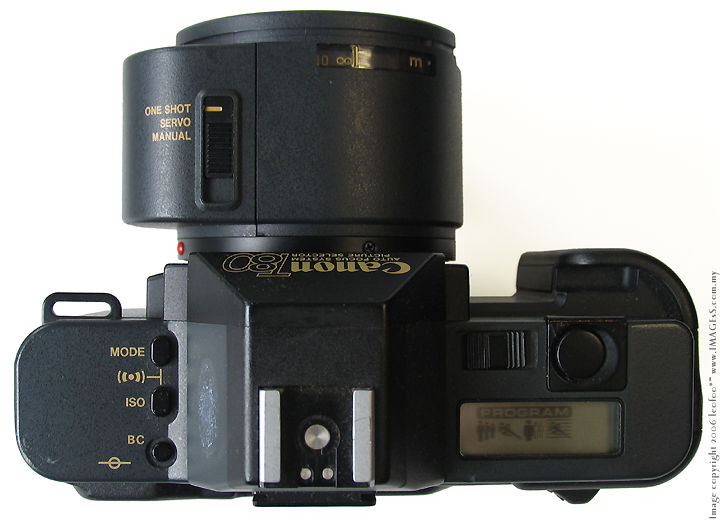

Canon T80 top view with AC 50mm f/1.8 59k Jpeg

Canon T80 base view 90k Jpeg

Canon T80 top view with 35 70mm f/3.5~4.5 zoom 71k Jpeg

Canon T80 wall paper (large file)

Canon T80 side view

Canon lens cap for AC lenses163k

Jpeg (far left) 60k Jpeg (Right)

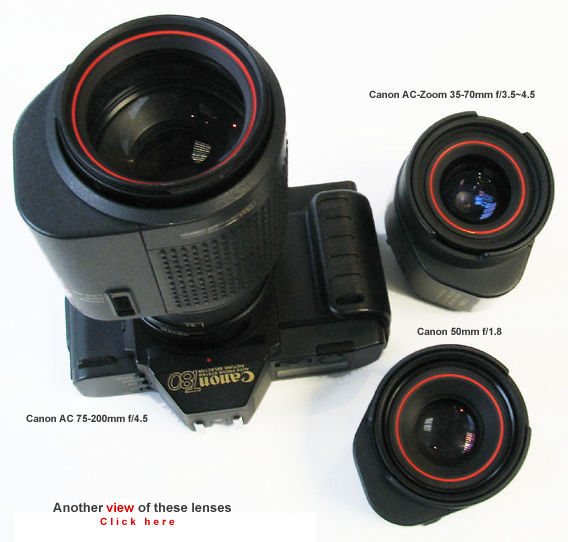

Three Canon AC lenses i.e. Canon 50mm f/1.8, Canon AC-Zoom 35-70mm f/3.5~4.5 and Canon AC 75-200mm f/4.5 zoom lenses made up for the dedicated lens group for the Canon T80 for autofocus function. Each lens was marked with a red circular ring at the front. Except for the 75-200mm zoom which still uses conventional front lens cap (C-58mm); the remaining two have a newly designed front lens cap (B-66mm). Each of these three lenses have slightly different configuration.


Canon 50mm f/1.8, Canon AC-Zoom 35-70mm f/3.5~4.5 and Canon AC 75-200mm f/4.5 zoom lenses

Canon AC-Zoom 35-70mm f/3.5~4.5 technical description

Canon AC-Zoom 35-70mm f/3.5~4.5 technical description rear lens mount

The standard lens is simpler. The 35-70mm zoom has a limiter for macro or manual focus setting; for zooming control, you need to make use of a separate lever to pull (up or down) to change the zoom ratio; as for the 75-200mm zoom, the limiter has been removed and replaced with a MACRO ring near the mount and the zoom function is via conventional pull and push mechanism. All three AC lenses were equipped with a 6-gold-plated electrical contact at the rear FD mount for date communication with the body section (aligned vertically in an array of six, at the left hand side inside the mount).

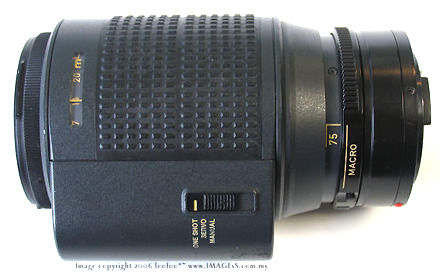

Canon AC-Zoom 75-200mm f/ 4.5 technical side view

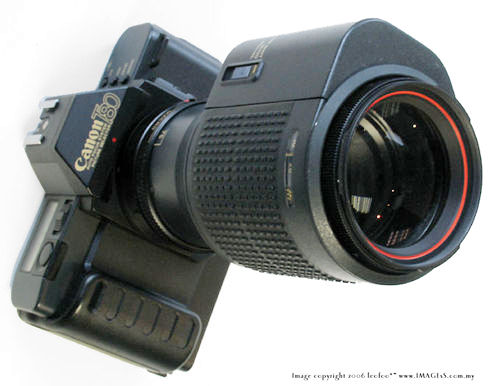

Canon AC-Zoom 75-200mm f/ 4.5 for Canon T80

Canon AC 50mm f/1.8 and AC-Zoom 35-70mm f/3.5~ 4.5

Canon AC 50mm f/1.8 and AC-Zoom 35-70mm f/3.5~ 4.5   and  75-200mm AC Zoom

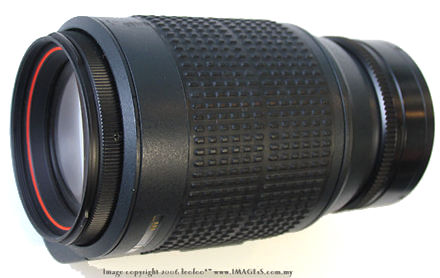

Canon AC 75-200mm f/4.5 zoom
