Minolta X-700 SLR camera - Technical Specifications


File size:
16K HTML Loading...

TECHNICAL SPECIFICATIONs

Type: Electronically governed 35mm single-lens reflex AE camera
Exposure-control modes: Fully programmed ("P"), aperture-priority automatic ("A"), and metered manual ("M")
Lens mount: Minolta SLR bayonet of integrally lubricated stainless steel (54
° rotating angle); coupling for full-aperture metering, finder display input, and automatic diaphragm control, providing programmed or aperture-priority auto operation with Minolta MD lenses, aperture-priority auto operation with MC and other Minolta SLR interchangeable lenses/accessories; spring-return button for depth-of-field preview or stop-down meter readings with other than MD or MC lenses (standard lenses: MD 50mm f/1.2, f/1.4, f/1.7)

X-700 MClens.jpg (31k) Loading .....
x700logo.gif Exposure Control and Functions: Low-voltage, low current computer circuit incorporating quartz crystal for sequential control to 1/30,000-sec. accuracy, large-scale ICs, samarium-cobalt impulse-release magnets, and linear-resistance inputs) varies both aperture and shutter speed steplessly according to special "faster-speed" program in P mode, or varies shutter speed steplessly according to aperture set in A mode, to yield proper exposure for the film speed and exposure adjustment set; auto-exposure range: EV 1 to EV 18 (e.g., 1 sec. at f/1.4 to 1/1000 at f/16) at ISO 100/21° with f/1.4 lens; AE-lock device holds meter reading for exposure at that value regardless of subject-brightness changes.


<
<< ---- Copyright-free images collection © 2001

Shutter: Horizontal-traverse focal-plane type; electronically controlled stepless speeds 1/1000 to 4 sec. set automatically with endlessly rotatable selector dial locked at "P" or "A" setting or fixed speeds 1 to 1/1000 sec. or "B" (bulb) set manually at detented dial indications; electromagnetic shutter release locks when voltage too low for proper operation
Metering: TT L center-weighted averaging type, by silicon photocell mounted at rear of pentaprism for available light, measured full aperture for normal finder display, then at taking aperture for programmed/automatic-exposure setting/determination or stop-down display; by another SPC mounted with optic in side of mirror compartment for TTL off-film Direct Autoflash Metering at taking aperture during exposure to control burst duration of PX-series flash units
Film-speed range: ISO 25/150 to 1600/330 set by ASA dial that locks at 1/3-EV increments
Exposure-adjustment control: Up to ±2 EV continuous adjustment of P, A, or M exposure by dial that locks at zero position and each 1/2-EV setting
Mirror: Triple-coated oversize instant-return slide-up type

Viewfinder: Eye-Level fixed pentaprism type showing 95% of 24x36mm film-frame area; magnification: 02X with 50mm standard lens focused at infinity; power: -1D, adjustable with accessory Snap-On eyepiece lenses; Fresnel-field focusing screen having artificially regular-patterned matte field plus central split-image horizontally oriented focusing aid surrounded by microprism band, interchangeable with Type P1, P2, Pd, M, G, L, S, or H screens at authorized Minolta service stations; visible around frame: mode indication (P, A, or M), shutter-speed scale (1, 2, 4, 8, 15, 30, 60, 125, 250, 500, and 1000) with LED setting indication, triangular over-/under-range LED indicators blinking at 4Hz, flash-ready signal (LED next to "60" blinking at 2Hz), FDC signal ("60" LED blinking at 8Hz for 1 sec. after correct flash exposure), mis-set lens warning (mode indication blinking at 4Hz in P mode, battery check (by glowing of any LED when operating button touched or pressed slightly), f-number set with MD or MC lenses, and exposure-adjustment engaged indication (LED blinking at 4Hz); display and metering activated by normal finger contact or slight pressing of operating button and continue for 15 sec., except go out after shutter release

<<<<<<- ----- Episode 3 ... Copyright-free images collection © 2001

Flash Sync and Control: Hot shoe and PC terminal for X sync; camera-control contact on hot shoe for flash ready signaling and automatic setting of shutter at 1/60 sec. (except when mode/shutter-speed selector set for sync at "B") with PX and X flash units; other electronic units synchronize at 1/60 sec. and slower manual speeds or "B" setting; Class MF, M, and FP flashbulbs, at 1/15 sec. or slower settings; second contact on hot shoe for burst control by Direct Autoflash Metering with PX units
Film Advance: Manual: by lever with single 130
° stroke after 30° unengaged movement; motorized: through built-in coupler key with accessory Motor Drive I or Auto Winder G; release button for rewind on camera bottom; advancing-type frame counter; Safe Load Signal indicates film loading and advancing condition Power: Two 1.5v alkaline-manganese (LR44: Eveready A-76 or equiv.), two 1.55v silver-oxide (SR44: Eveready S-76, EPX-76, or equiv.), or one 3v lithium (CR-1/3N) cell(s) contained in camera base power both programmed/auto exposure control and manual operation; three-position main switch with indication for off, on, or on with audible piezoelectric slow-speed warning and self-timer operating indication; battery check by touching or slightly pressing operating button (LEDs do not light when cells approach exhaustion); shutter will not release when voltage too low for proper operation
Self-timer: Electronic for 10-sec. delay, with operation indicated by camera-front LED that blinks at 2Hz for 8 sec., then 8Hz for 1 sec., then remains on until shutter releases, plus simultaneous audible indication when main switch in appropriate position; engaged by switch on body, cycle started by pushing operating button, cancelable anytime before release
Others: Audible 4Hz piezoelectric warning when finder speed indication is 1/30 sec. or slower whenever finger contacts "touch switch" normally or presses operating button slightly with main switch appropriately set; integral front hand grip; detachable back with integral hand grip, memo holder, and ISO (DIN-ASA) table; positive 4-slot take-up spool; remote shutter-release socket
Size and weight: 51.5 x 89 x 137mm (2 x 3-1/2 x 5-3/8 in.), 505g (17-13/16 oz.) without lens and/or power cells

Standard Accessories: Carrying strap with slide-on spare battery holder and eyepiece cap
Optional Accessories: Auto Electro flash 360PX, 280PX, 132PX, Macro BOPX Set, off-camera cables and connectors, Power Grip 2, etc.; Multi-Function Back, Quartz Data Back 1; Motor Drive 1, Auto Winder G; Wireless Controller IR-1 Set; MD, MC, and other Minolta interchangeable lenses and applicable Minolta SLR system accessories

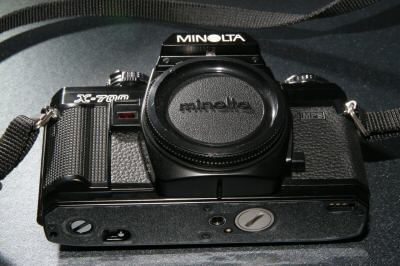

Credit:- Image courtesy of Mr. Chris ENGELER who operates a Ebay Store. All images appeared herein are Copyright © 2003. All rights reserved.


STORAGE & Maintenance

* If the camera is not to be used for more than two weeks, the batteries should be removed. 9 It is advisable to operate the film-advance lever and release the shutter once or twice from time to time during extended storage. ** If the camera is to be stored for a long period of time, the body and lens should be returned to their original packing and kept in a cool, dry place away from dust or chemicals, preferably in an airtight container with a drying agent such as silica gel.
