Canon RF-SM Serenar 1:1.9 f=85mm Telephoto lens

Quick spec. sheet:

Canon Rangefinder version of the SERENAR 85mm f/2.0 telephoto lens

Year Introduced: 1951
Focal Length
: 85mm
Design/Mount
: 6 elements in 4 groups / Screw-Mount (SM)
Minimum / Maximum aperture
:- f/16 ~ F/2.0
Closest focusing distance
: approx. 1.07m (4 ft)
Filter attachment size
: 48mm
Dimension/Weight
:- 57mm x 86.5mm / 605g

Remarks: The next update of the 85mm f/1.9 SM Chrome version was released in 1958 (which likely the version shown below is). Minimum aperture has stopped down to smaller f/22. Measuring 55.5mm x 84.7mm and weighs lighter at 410g only.




Credit
: Image courtesy of Photo_Arsenal-Worldwide® Germany. The Company also maintains an active EBAY Store, trading many used and new photo equipment of various labels. Photo Aersenal can be contacted at Photo Arsenal Boris Jamchtchik, Altenfurter Str.16a 90475 Nuernberg Germany Tel.: +49 (0) 911/ 4008081 E-Mail: ebayshop@arsenal-photo.com. Arsenal has a office in Hong Kong, headed by Evan Wong. Address is: Ting Shan East Selling-Office Unit 210, 2/f., Mirror Tower, 61 Mody Road, Kowloon, Hong Kong Phone: + 852/23126690 , fax. +852/23126691.Image(s) copyright © 2008. All rights reserved. Please respect the visual property of the contributing photographer.

RF all chrome version Canon SERENAR 85mm f/1.9 telephoto lens for rangefinder cameras



Chrome, Canon rangefinder (RF) version
85mm f/1.9
telephoto lens in SM mount (MK II not Serenar model)

"... Conon 85mm f1.9 M39 screw mount lens SN 66720. Made in Japan. It is marked EP, sold to US troops. It has M39 Leica screw lens mount. Over all excellent condition. I would rate it at 9- for cosmetics and at 9+ for performance on a scale of 10. Looks and works great. But it has little bit of rust on the lens barrel. Rust is visible in 1 and 3 picture above. Very clean glass, no dust inside. Front and back glass elements are in excellent condition. Aperture blades are clean, and oil free. Aperture click at every stop, as it should. Focusing is smooth, and is nice and tight, Everything works as it should. It comes with rear lens cap only...." - Rokas -
Credit: Image(s) courtesy of Rokas Kundrotas®. where he is more well known as maintaining another popular Rokas Photo & Videao @ EBAY with another personal site at www.Kundrotas.com - both kept a huge inventry for many used collectible equipment of major camera labels. Image copyright © 2008. All rights reserved. Please respect the visual property of the contributing photographer.
RF all chrome version Canon 85mm f/1.9 MK II LSM telephoto lens for rangefinder cameras

Lens diaphragm of RF all chrome version Canon 85mm f/1.9 MK II LSM telephoto lens for rangefinder cameras
Leica Screw Mount, EP RF all chrome version Canon 85mm f/1.9 MK II LSM telephoto lens for rangefinder cameras

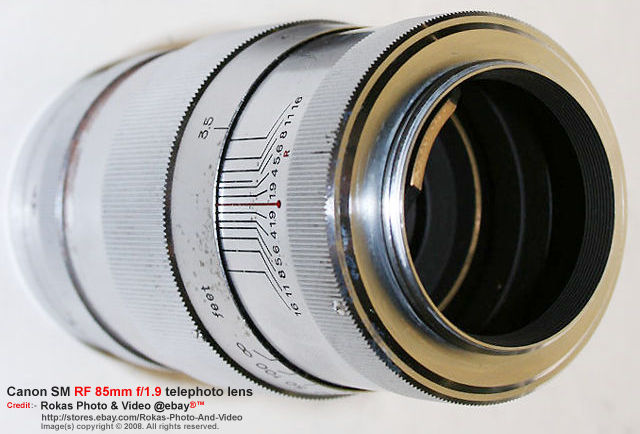

Brass rear lens mount of a Leica screw mount all chrome version Canon 85mm f/1.9 MK II LSM telephoto lens for rangefinder cameras
EP mark in a Leican Screw mount Canon RF 85mm f/1.9

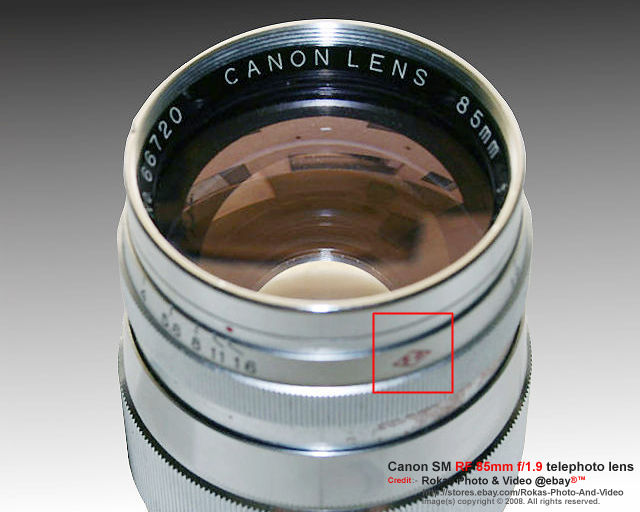

Front lens view of a LSM Canon 85mm f/1.9

Credit: Image(s) courtesy of Rokas Kundrotas®. where he is more well known as maintaining another popular Rokas Photo & Videao @ EBAY with another personal site at www.Kundrotas.com - both kept a huge inventry for many used collectible equipment of major camera labels. Image copyright © 2008. All rights reserved. Please respect the visual property of the contributing photographer.



Canon original rangefinder (RF) 85mm f/1.9 telephoto lens Black MK III
* This version was not being addressed in Canon Museum. Looks like a product between S-R mount period.

Credit: Image(s) courtesy of Collectible Cameras®. The company is more well known as another popular RITZ Camera it has a huge inventry for many used collectible equipment of major camera labels. Image copyright © 2008. All rights reserved. Please respect the visual property of the contributing photographer.

Black body Canon 85mm f/1.9 telephoto lens

Black body Canon 85mm f/1.9 telephoto lens with green canon packaging box

Details of lens box in green for this Black body Canon 85mm f/1.9 telephoto lens

Credit: Image(s) courtesy of Collectible Cameras®. The company is more well known as another popular RITZ Camera it has a huge inventry for many used collectible equipment of major camera labels. Image copyright © 2008. All rights reserved. Please respect the visual property of the contributing photographer.
