Technical Specifications

Models: EOS-500N / REBEL G (North America), New EOS Kiss QD-P(Japan)
Marketed: September 1996
Type:
35 mm focal plane shutter SLR (Single-Lens Reflex) autofocus/autoexposure camera with built-in motor drive and retractable flash.
Picture format: 24 x 36 mm, panorama (13 x 36mm) enabled (Japanese version KISS only,
panorama frame is set with external lever)
Credit: Images courtesy of Sales@UsedNikon®, UK <eileen@usednikon.co.uk> where the Company also has a website (URL:www.photography247.co.uk) trading new/used photo equipment. Image copyright © 2003. All rights reserved. Please respect the visual property of the contributing photographer.

Lens Mount: Canon EF Mount (electronic signal transfer system).
Usable Lenses: Canon EF lenses.
Suggested standard lense: EF 28-80mm f/3.5-5.6II USM
Viewfinder/ information: Fixed eye-level roof mirror. 0.7x magnification and 90% coverage. Center AF marks, wide AF frame, partial metering circle. 7-segment LCD displays (Yellow-Green) numeric values, textual display, in-focus indicator, exposure display, shutter speed, aperture setting, Red-Eye reduction lamp, flash ready, panorama frame (set with external lever), and other indications.

mapEOS500Ntopsml.jpg mapEOS500Nfrontsml.jpg mapEOS500Nrearsml.jpg
CLICK open a new browser window for the Main Reference Map

Reflex Mirror: Quick-return half-mirror.
Standard Dioptre: Adjusted to -1. (18.5 mm eye relief).

Focusing Screen: Fixed, full-surface new laser-matte screen marked with focusing points, partial metering circle.
Shutter: Vertical-travel, focal plane shutter with all speeds electronically controlled. Front and rear shutter curtains both have dedicated electromagnetic release control. (Curtain speed: 6.3 ms/24 mm).

Shutter Speeds: 30 to 1/2000 sec., Bulb; X-sync at 1/90 sec. Can be set in 1/2-stop increments.

External LCD: Shutter speed, aperture setting, film speed, multiple exposure count, Red-Eye reduction, self-timer display, film status, exposure display, battery check, and other indications.

NOTE: LCD Panel In time, the camera's LCD (liquid-crystal display) panel indications may become light and difficult to read. If this happens, have it replaced (at cost) by a Canon Service Center. At low temperatures, the display response of the LCD panel may become slower. And at 60 degrees C or higher temperatures. the display may blacken. In either case, the display will return to normal at room temperature.

Autofocus:

AF Control System: TTL-SIR (Secondary Image Registration) phase detection type using 3-point cross type BASIS (Base-stored Image Sensor). (| + |). One of the following two AF modes is set automatically depending on the picture taking mode. The shutter does not release until focusing is achieved. One-Shot AF: Autofocus locks when focusing is achieved. Al Servo AF: for automatic switching between One-Shot AF and predictive AF for moving subjects.
Focus Point Selection: The focusing point can be selected by camera (Automatic) or by user (Manual).
AF Working Range: EV 1.5 - 18 at ISO 100
AF Auxiliary Light: Built-in auxiliary light fires when necessary

Exposure Control

Light Metering: Composite SPC for TTL full-aperture metering (6-zone evaluative, 9.5% partial at center, and Centre-Weighted averaging) with shutter speed-priority AE, aperture-priority AE, Intelligent program AE (5 settings), depth-of-field AE and metered manual. Five PIC (Programmed Image Control) modes: Portraiture, land scape, Close-up, Sports and Night scene.


Metering Range: EV 2 to 20 conversion with 50min f/1.4 lens at ISO 100) (normal temperature)
Film Speed Setting:
ISO 25-5000 automatically set in 1/3 step increments according to DX code. Can also be set manually from ISO 6-6400 in 1/3 step increments.
Exposure Compensation: ±2 EV (in 1/2-stop increments) Not available in PIC modes.
Auto Exposure Bracketing: +/- 2 stops in 1/2-stop increments, Three continuous exposures taken in sequence: one under, one at the standard metered value, and one over.

Film Transport: Film Loading / Film Advance: Automatic. One of two modes is automatically set: Single Frame and Continuous (1 fps maximum). Align film leader at mark, then close the camera back for prewind loading. First, the entire roll is wound on the take-up spool. Then each time a picture is taken, the film advances back into the cartridge.
Film Rewind:
Automatically rewinds at the end of the roll. Mid-roll rewind is possible
Frame Counter: Counts down on external LCD panel (counts up during prewind loading).
Film advance speed: 1 fps
Credit: Images courtesy of Sales@UsedNikon®, UK <eileen@usednikon.co.uk> Image copyright © 2003. All rights reserved.

Built-in Flash

Type: Retractable, TTL automatic exposure flash housed in the pentaprism. By-pass control system. Auto pop-up head. TTL auto flash control (fires automatically in backlight and low-light conditions). Off-the-film metering with a 4-zone flash metering sensor covering three flash metering points.
Red-Eye reduction lamp (AF-assist beam emitter): provided. Applicable to all shooting modes. Lights when hutter button is depressed half way, shutter can be release immediately.
Guide Number(ISO 100, m): 12 (changes according to film speed.
Flash Coverage Angle: Automatically zooms to cover the field of view of 28mm lense
Recycling Time: approx. 2 sec.
X-sync: Fastest at 1/90 sec.
AF Auxiliary Light: Auto emit when shutter button is depressed half way. Wfffective range: 16.43 ft (5 m).
Effective shooting range: 3.29-15.7 ft (1-4.8m, ISO 100) It changes according to film speed.
Flash Duration: 1 ms or less

Others: Camera Shake alert: Provided for full auto and PIC modes -EXCEPT Night Scene mode. Shutter Speed blinks if speed is too slowthan the reciprocal
Recycling Time:
Approximately 2 seconds. Lights when ready.
Red-Eye Reduction Function:
Red-Eye Reduction Lamp Lights while the shutter button is pressed halfway and focusing and metering are achieved.
Self-Timer: Electronically controlled with a 10-sec. with beeper tone
Multiple Exposures: Up to nine (9) exposures can be present. Automatically clears upon completion
Remote Control: 3-pin remote control

External Flash: Hot shoe socket for external flash for E-TTL, A-TTL and TTL Programmed Flash Exposure Control with dedicated speedlites. Manual flash is possible. NOTE: Although it is possible to use third party flash units with the camera but Canon warns when using an external flash unit, an EOS-dedlcaled Speedlite is also recommended. Using a flash unit (equipped with several contacts on the hot shoe toot) dedicated to a different-brand camera or using a high-voltage batterytype flash unit or accessories may result in camera misoperation or malfunction.

Power Source Battery: Two 3 V (6 Volts) CR123A or DL 123A lithium batteries supplies power to body and built-in flash.
Battery Check:
Battery level is displayed by the battery level indicator on the LCD panel. Battery level is indicated in one of four levels. Note: When the powecell.gif symbol blinks on the LCD, a picture can still be taken except it may not be enough to advance/rewind the film.

Credit: Images courtesy of Sales@UsedNikon®, UK <eileen@usednikon.co.uk> Image copyright © 2003. All rights reserved.

Dimension: Size: EOS-500N/Rebel G/EOS Rebel G/KISS II QD: 5-5/8" (W) x 3-5/8" (H) x 2-7/16" (D), 145.7mm (W) x 92mm (H) x 61.9mm (D)
Weight:
EOS-500N/ Rebel G /KISS II: 12.3oz (350g) without battery / 13.4oz (382g) with battery. EOS-500N/ Rebel G /KISS II QD: 12.8oz (365g) without battery / 13.9oz (397g) with battery.

Exclusive accessories

The camera shares many system accessories that was introduced for the EOS 500. Remote Switch RS-60 E3 allows the camera to be fired from up to 60 cm away. It uses a 2.5 mm mini jack socket with three terminals. The Remote Switch is also usable with EOS-50, 500N and EOS 888/5000.
Dioptric Correction lens E: Attaching the eyepiece allows near or far sighted users to see the viewfinder image clearly without eyeglasses. The default is -1 diopter. There are 10 correction lenses for you to choose from. Eyepiece Extender EP-EX 15 moves the viewfinder frame back 15 mm from the camera body, giving a more comfortable clearance between the face and the back of the camera. Naturally, you can also make use other eyepiece accessories such as Angle Finder B for right angle viewing or low level shooting etc. GR-80TP Grip Extension features a built-in mini tripod, it screws to the tripod socket, giving a larger grip for the hand, plus a detachable hand strap. The Battery Power Pack BP-8 is both a battery pack as well as a vertical grip for the EOS-500 (usable with 500N and EOS-888/5000 too). It accepts 4 alkaline-manganese or rechargeable NiCd size AA battery cells. Camera Cases EM8-L and EH8-LL: Dedicated case which accommodates the camera with any of the following lenses attached: EH8-L : EF 35-80mm f/4-5.6 USM, EF 35-105mm f/4 5-5 6 USM; EH8LL: EF 28-80mm f/3.5-5 6 IV USM, EF 80-200mm f/4-5 6 USM
NOTE: All data are based on Canon's Standard Test Method. Subject to change without notice.

Canon Autofocus EF Lens Resources
EOSrebelGa.JPG EOSrebelGd.JPG

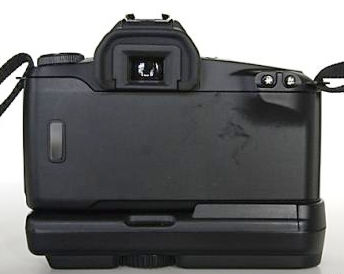

Credit: Images courtesy of G Allan Detrich ® <DetrichPix@AOL.com> where he specializes in trading new/used photo equipment. Image copyright © 2003. All rights reserved.
