To minimize download time, thumbnails for each model is provided in this core page.
click on it to go to a Bigger view with a short summary attached.

A Pictorial History...
The Rangefinder || The Nikonos || Compact Cameras
SLRs -
1959/1979 | 1980/1990 | 1991/1999 | y2k/2003 | 2004 ~


Nikonos 1, 1963

Nikonos 1, 1963

| Message Board |
Questions, issues & Answer(s)

Jointly developed with French film, La Piro technique and sold under the name of Calypso. The name Nikonos 1 was actually used after Nippon Kogaku acquired from the French. Some early models may bear with Calypso/Nikkor in the European market.

cal2SML.jpg cal3sml.jpg
(Other Information relating to how the breed of Nikonos models began)


Nikonos II, 1968

Nikonos II, 1968
Instruction Manual for Nikonos II in PDF (External Link @ butkus.org) CLICK HERE

| Message Board |
Questions, issues & Answer(s)

A slight improved version from the original Nikonos 1. most significant is the direct flash connection underwater or used with an adapter out of water. Some interchangeable UW-Nikkor introduced during this era came with improved DOF scales. Some models sold in European market may still bear the name Calypso. The camera adopted the modular design of the early Nikon SLR type where you can removed the entire external shell from inside. But similar to the Nikonos 1, model II was still a meter less camera. This model was eventually discontinued in 1975.

By the way, have you seen a NIKONOS II DUMMY display camera unit before ? NO ? Click here.

NikonosII_AndrewHfa.JPG NikonosII_AndrewHbSML.JPG NikonosII_AndrewHhSML.JPG NikonosII_AndrewHcSML.JPG
NikonosII_AndrewHeSML.JPG NikonosII_AndrewHdSML.JPG NikonosII_AndrewHaSML.JPG NikonosII_AndrewHgSML.JPG

<<<--- Credit: Images of the Nikonos II model shown here courtesy of Mr. Andrew Hanington | Ebay Contact| . Image copyright © 2005 All rights reserved. Please respect the visual property of the contributing photographer.

Nikonos III, 1975

Nikonos III, 1975
Instruction Manual for Nikonos III in PDF (External Link @ butkus.org) CLICK HERE

| Message Board |
Questions, issues & Answer(s)

The last of the meterless Nikonos model but widely acknowledged as the best among the early batches of the Nikonos. The shutter speed range retained from 1/30 sec to 1/500 with Bulb setting and sync at 1/60 sec. Slightly heavier (790g) due to enlarged dimension. Improvement includes a revised multifunction film advance lever, rewind crank, shutter speed selector and added frame lines for 35/80mm inside the finder. Serial number may have been started from 310xxx and discontinued in 1980.

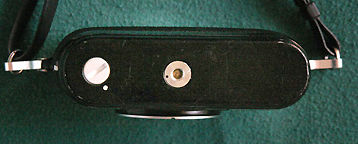

<<<--- Credit: Images of the SB-102 courtesy of
Joe Swaney (
Homepage / Ebay) Images © 2005. All rights reserved. The image at the right hand side was contributed by Mr. Jeft from Reef Images, Australia Image copyright © 2005 All rights reserved. Please respect the visual property of the respective contributing photographers.

Click on respective thumbnail(s) below to see ENLARGED view(s)

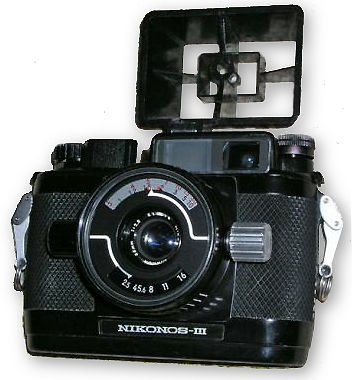

Nikonos III, Jeft..

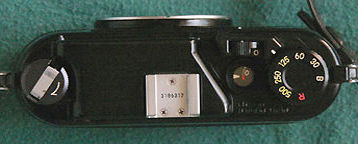

joeswaneyNIIIfrontSML.jpg joeswaneyNIIIShutSML.jpg joeswaneyNIIItopSML.jpg


 <<previous | Next >>
