Modern Classic SLRs Series :
Canon F1 - Camera Handling/Operations Part II

This section covers: Film Speed Setting; Full Aperture Metering; Setting the Exposure - Stopped Down Metering; Shutter Dial Adjustment

Part I | Part II | Part III | Part IV
This page has a converted pdf file (224 K) for download. Click on icon to proceed.

Credit: Tony Kano (Ex-Regional Head (Asia), Richard Yeow (Division Head-Malaysia) of Canon Marketing who share the same enthuasism for making this site possible for all Canon Fans.

We suggest
strongly to use a detailed illustration of various dials and control buttons on the Canon F-1, Click here for cross reference.


Film Speed Setting

The ASA film speed scale is coupled to the meter and correct exposure cannot be measured if the scale is not correctly set.

Set the film speed correctly every time you load a new roll. When you wish to check the battery power source, set the film speed at ASA 100 regardless of the type of film you are using, but be sure to set the film speed correctly afterwards. Lift the shutter speed scale and turn it to the correct film speed.

The film speed scale cannot be turned clockwise beyond 25 nor counterclockwise beyond 2000.

The corresponding index is as follows:



Full Aperture Metering

The F-1 has a full aperture metering device. After measurement, the diaphragm closes down automatically to the preset f/stop for correct aperture when the shutter release button is pressed.

Basically, the process is as follows:

First of all you must focus on the intended subject and then you let that subject come into the rectangle in the middle of the viewfinder. This part corresponds to the CdS cell that receives incoming light. Then, turn the shutter dial or the preset aperture ring so that the aperture needle aligns with the meter needle. As a rule, when you intend to shoot a fast moving subject, you can set the shutter speed first and then set the aperture by turning the aperture ring. This is the so called shutter priority method.

Adjust the middle of the aperture needle circle to the meter needle. The upper and lower edges of the aperture needle circle are +0.5 andŮ0.5 EV, and the center of the circle is the correct exposure.

This might prove helpful to adjust exposure properly. When the shutter is set at low speeds beyond the coupling range, the meter window turns red as a warning that the meter is not coupled at that.speed. A faster shutter speed must be selected. If the aperture and meter needles still cannot be matched, the Booster T Finder should be used.


Shutter Dial Adjustment

When the meter needle swings all the way up, select a faster shutter speed, and when it swings all the way down, select a slower one.


Illustration in relative how the needle moves in exposure measurement.


Setting the Exposure - Stopped Down Metering

When you turn the aperture ring while pushing the multi-purpose stopped-down lever down at the same time, the diaphragm will open or close accordingly.

If you remove your finger from the lever, the diaphragm returns to full aperture. The stopped-down functioning lever can be locked for continuous light measurement by pressing it towards the lens after setting the lever lock at the "L" position.

When the aperture is stopped down, the aperture needle does not appear in the window but the meter needle does. Turn the aperture ring or shutter speed dial until the meter needle is aligned with the fixed index.

In stopped down metering, you can adjust the shutter speed before the diaphragm or viceversa. Stopped down metering sholild not he l,s~d with Fn lenses at apertures larger than F 2.8 hecalise of the built-in correction for full aperture metering.

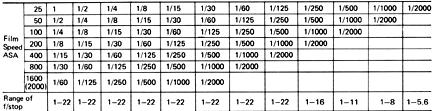

Coupling Range of the F-1 Exposure Meter
