Additional Information on :

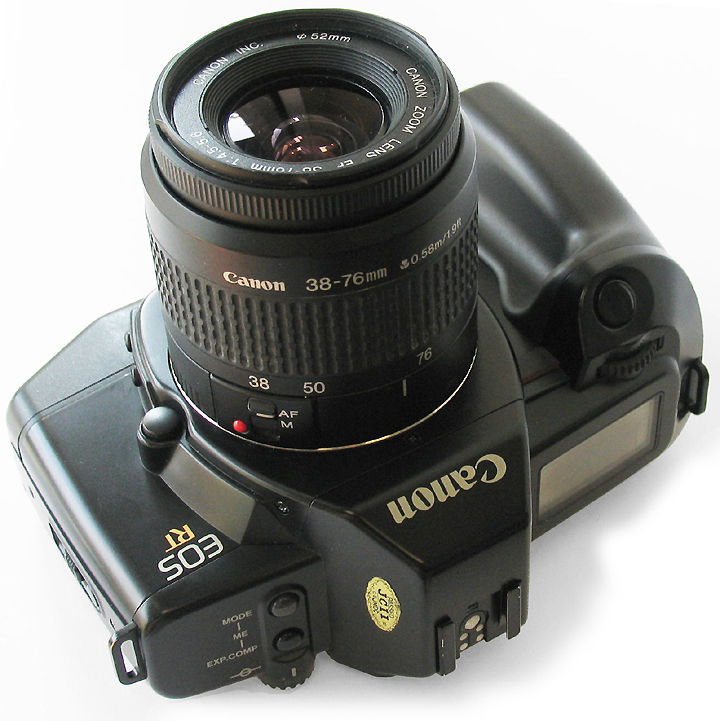

Canon EOS RT AF SLR camera

File size: 63K HTML Loading...


film-based AF-SLR camera, 1989 ~ 1992

Canon Autofocus EF Lens Resources

The "RT" stands for "real-time". The Canon EOS RT was the first autofocus SLR camera that employed with a hard coated fixed pellicle mirror inside (the mirror specification & performance is the SAME with the 10 fps flagship Canon EOS-1n RS introduced later in 1995). The deployment of the fixed Pellicle Mirror has drastically shortened the shutter-release time lag and provide a series of advantages never experienced by photographers who used convention reflex mirror type of camera. However, prior to the use of this for the EOS RT, Canon was no stranger to the Pellicle Mirror as early as 1972, the Company has already developed a fixed mirror high speed motor drive camera for the Olympic Games at Sapporo. The original Canon F1 High Speed Motor Camera was again improved with the Canon New F-1 High Speed Motor Drive camera for the 1984's Olympic games in Los Angeles. Besides, even the EARLIER consumer grade Canon Pellix of 1965, Canon has already been deploying with similar concept of a fixed mirror 35mm camera, except that it does not support high speed film advances.

Well, entering the Autofocus era, the EOS RT delivers a different level of operating ease in functionality. In most cases, the user may not even feel the activation of this function as light depressing the shutter button halfway will readies the camera for instant picture-taking. But unlike conventional SLRs which may take approx. 90-130 millisecond to complete an exposure, the RT takes only 0.008 sec. for the shutter's first curtain to open and the second curtain to close after exposing the film. The elimination of the action of the reflex mirror/shutter curtain actions also brought a benefit - it has enabled a fast continuous shooting speed of 5.0 fps, even when shooting in predictive AI Servo AF. Other than the shooting speed and handling the EOS RT also provides many essential professional features such as auto bracketing, multiple exposures, six AE modes and metered manual, and equipped with 15 Custom Functions for the photographer to custom setup the camera to cater for personal preferences and/or each particular type of assignment.

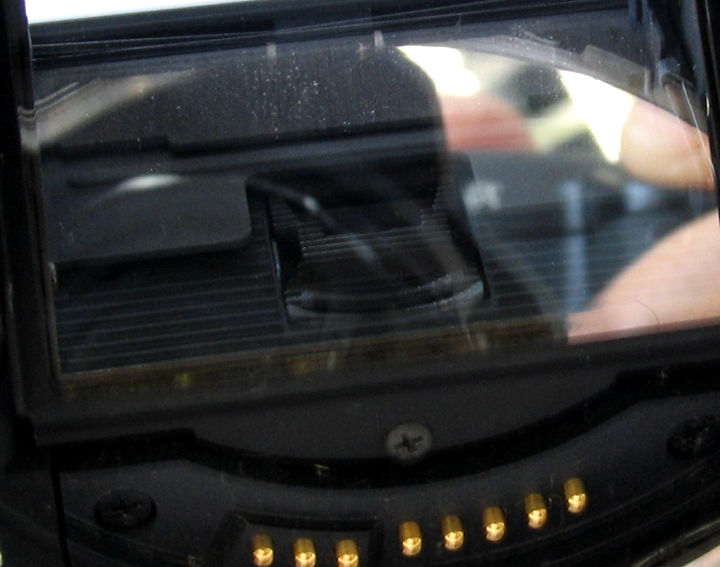

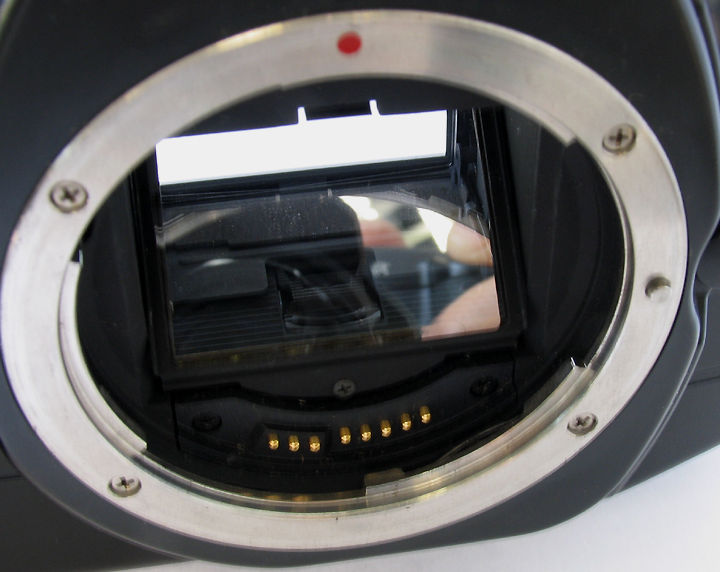

PELLICLE MIRROR The main highlight of this camera was the incorporation of the Pellicle Mirror - otherwise, it was like a standard Canon EOS 630 model. With the special, fixed mirror, the camera has these advantages:- You can actually observe the exact moment "during" exposure as the camera's viewfinder never flip upwards. A higher film advance shooting sequence rate was achieved due to virtually no mechanical movement other than the open and close of shutter curtain and merely 0.8 millisecond time lag. One of the more practical application was when using the camera of this type for shooting macro-photography, scientific research and/or others such as astro-photography, the indirect elimination of any possible mirror bounce that might contribute to blurry image especially at slow speed shooting permit wide photographic applications such as engineering studies on motion analysis. It is like a full-time mirror lock -up isn't it ? For those who always works with strobes or multi-flash setup, the constant viewing actually permits you to see the light source striking on the subject during exposure. The Pellicle Mirror will be featured more at the Canon EOS-1n RS site.
















Terms of Use : Use these images for whatever purpose that you like - even for your own website, link will be deeply appreciated but not entirely a must. But IF you want to use them for commercial purpose, credit/link should be given because I don't like them to be used for trade/sell reference and it may mislead potential buyers with their actual condition of the said item during an auction sale. For high-resolution images for desktop publishing/advertising, you may make a request via

35mm focal-plane shutter multi-mode AF SLR camera
Picture Size
24 x 36 mm
Normal Lens
EF 50mm f/1.8, others
Lens Mount
EF mount
AF System
TTL phase detection. AF modes: One-Shot AF and predictive AI Servo AF. AF operating range at ISO 100: EV 1 - 18.
Double-blind, vertical-travel, focal-plane electronic shutter. 30 sec. - 1/2000 sec., B. X-sync at 1/125 sec. (hot shoe). Built-in electronic self-timer (with beeper).

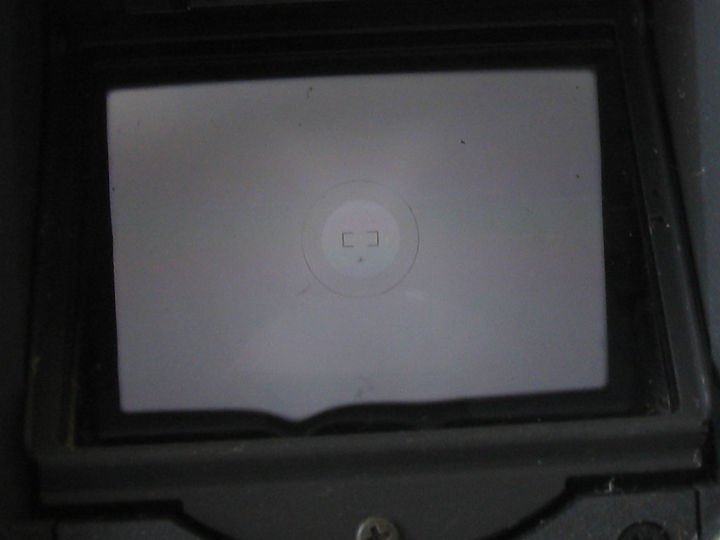

Fixed eye-level pentaprism. 0.8x magnification and 94% coverage. Seven interchangeable focusing screens. (The fixed, semi-silvered mirror is coated with a 20/1000mm ultra-thin, vapor-deposited Mylar film.) New Laser Matte screen is standard.
AF mark, in-focus indicator, partial metering circle, manual, partial metering indicator (AE lock), depth-of-field AE, exposure compensation, shutter speed, aperture setting, flash ready, and other indications.
Metering & Exposure Control
Composite SPC for TTL full-aperture metering (6-zone evaluative, centerweighted averaging [enabled with a Custom Function], and 6.5% spot metering at center) with shutter speed-priority AE, aperture-priority AE, Intelligent program AE, and metered manual. AE lock enabled. Autobracketing range of ±5 EV (in 1/2-stop increments). Maximum 9 multiple exposures. Exposure compensation range of ±5 EV (in 1/2-stop increments). Metering range at ISO 100 and f/1.4: EV -0.5 - 20. Film speed range: ISO 6 to 6400.
* With evaluative metering, AE lock is set automatically at the same time as AF lock. Fifteen Custom Functions provided.
External LCD
AF mode, picture-taking mode, film advance mode, shutter speed, aperture setting, film-loaded indicator, film transport, autobracketing indicator and amount, multiple-exposure setting and countdown, battery check, and other indications. Release time lag: 100 mm/sec. (Standard mode) and 8 mm/sec. (RT mode).
Power Source
One 6 V 2CR5 lithium battery
Film Loading & Advance
Align film leader at mark, then close the camera back for auto loading. Automatic film advance with built-in motor. Max. Film advance speed: approx. 5 fps (C and One-Shot AF), 3 fps (AI Servo AF), and single advance (S).
Film Rewind
Fully automatic with built-in motor. Midroll rewind enabled.
Dimensions & Weight
148 x 108 x 68 mm, 660 g
