Extreme Low-Light Metering

The meter built into the Nikon F2AS camera is capable of metering low-light levels requiring slow shutter speeds of up to 10 seconds.

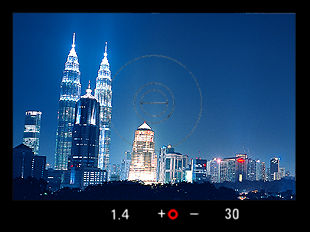

<<<--- A night scene of Kuala Lumpur ... Copyright ©-free images collection, 2000. leofoo ®Hosted by: Malaysian Internet Resources

To meter at low-light levels, perform the following: Set the lens' aperture ring to the desired aperture setting, and the shutter-speed selector to "B"; then, depress and hold the shutter-speed dial lock and turn the selector until the center LED exposure indicator (O) illuminates to indicate correct exposure.



Having set the selector, read off the number on the extra long exposure scale and set the camera's self-timer for the indicated value; then, set the T-L fingerguard to "T" and depress the shutter button to make the exposure. When performing low-light metering, be sure to block the entry of stray light into the viewfinder by closing the eyepiece shutter or by continuously viewing through the finder.


Time Exposures

The Nikon F2AS Photomic offers time exposure shooting convenience via built-in controls which enable long exposures without the need for accessory equipment.

Shah Alam.jpg (44k) Courtesy of : CyLeow Loading....

To make an exposure longer than 10 seconds, set the shutter-speed selector to "B" and turn the T-L fingerguard to "T" as described in "Extra-long Exposures." Advance the film and press the shutter-release button to open the shutter. As long as the fingerguard remains set to "T." the shutter will remain open. When returning the fingerguard to the normal center position to close the shutter, be careful not to move or shake the camera, as a blurred image may result.

Note: Most general purpose films are optimized to provide good exposures at normal metering range. For exposure time more than one second, one would need to compensate exposure by either by aperture or shutter speed to neutralize "Reciprocity Effect".

=/time.jpg
Note: Operation with a Nikon cable release (see page 15) can also provide for time exposures via the release's built-in locking function. For operation in these cases, leave the T-L fingerguard in the center position and trigger the camera with the shutter speed dial set to the "B" setting.

Eyepiece Shutter Operation

The camera's Photomic finder is fitted with an eyepiece shutter for special unmanned shooting situations (e.g., remote control, automated shooting with motor drive and aperture control unit) requiring protection against the entry of stray light through the viewfinder eyepiece.

To close the shutter, simply turn the eyepiece shutter control 60° clockwise; as the shutter closes, the internal LEDs are deactivated and the external "correct exposure" indicator is switched on for metering operation from atop the finder. To set the camera for proper exposure using the external LED indicator, simply adjust the aperture ring and/or the shutter-speed selector until the LED just glows; once the LED comes on, the camera is set for correct exposure.

In addition to its use for low-light metering or for unmanned photography, the eyepiece shutter comes in handy to ensure correct exposure measurement in critical shooting situations (e.g., photomicrography) or for protection against the entry of bright light into the viewfinder during daylight shooting.

High-Contrast Lighting Situations

When there are substantial brightness differences between the main subject and the background, unimportant bright spots or dark spots can adversely influence the finder reading, and thus the final exposure. To prevent under- or overexposure of the main subject under these shooting conditions, some corrective action must be taken to ensure proper exposure of the main subject. Fortunately, the finder's center-weighted TTL metering action simplifies adjustments, making for quicker camera operation and more accurate final results.

meterillus.jpg meterillus2.jpg
To compensate for an excessively bright or dark background, target the main subject in the center of the focusing screen while performing metering; this action ensures that the main emphasis of the meter reading will be on the chosen subject.

Cont....
