Instruction of how to Instal/Remove Batteries with High Speed Battery Pack MB-21

mb21A.gif mb21A.gif mb21C.gif
Remove grip (MB-21G) by rotating grip release lever counterclockwise.
Install three AA-type alkaline-manganese or NiCd batteries with terminals positioned as shown inside grip. Then set the battery selector inside grip to "LR6" for alkaline-manganese bafterift or to "Ni-Cd" for NiCd batteries.

mb21f.gif mb21e.gif
Remove battery holder (MS-21) from bottom portion (MB-21B).

Install three AA-type alkaline-manganese or NiCd batteries with terrninals positioned as shown inside battery holder.

When changing batteries, I is not necessary to remove base from camera body.

mb21g.gif mb21h.gif mb21i.gif mb21j.gif
Side battery holder back into base until it locks into place. Attach grip to camera body and turn release leverclockwise until it stops.

mb21k.gif mb21l.gif

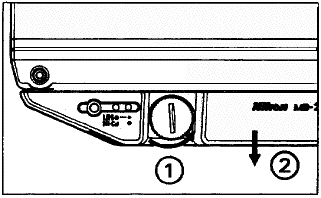

To remove base from camera body, rotate lock screw coun. terclockwise using a coin

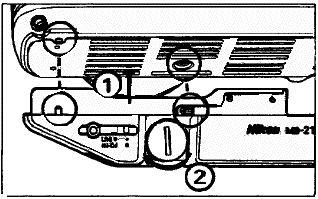

To attach base to camera body, align mounting screw and guide pin with camera's tripod socket and guide hole, then rotate lock screw clockwise with your fingers (Do not use a coin, screwdriver etc.)
