The built-in film advance feature of the Nikon F4 may sound very simple primarily because built-in motor drive system in a Nikon SLR was not entirely a new affair because as early as in September, 1985, the manual focus Nikon F-301 (N2000 in US) was already incorporating a 2.5 fps (frame per second) built-in winder. Nikon F-501 (N2020 in US) was the first body integrated Nikon AF SLR offers a same performance with its built-in winder at 2.5 fps) while the entry level F-401 (N4004) offers a single frame film advance mode only (however, the poorly-spec F401 did held a distinctive honor of being the first Nikon SLR body that offers balance fill flash feature !). The pre-F4 Nikon F-801 that introduced in June, 1988, has eventually elevated the film advance speed to a faster 3.3 fps - almost comparable to a motor drive rather than a power winder's performance.

With the Nikon F4, at the time of its introduction, what it has to offer was really a eye-opener to the photo community as, finally there was a truly high performance AF SLR that was able to deliver a professional grade, high-speed 5.7 fps film advance rate ! Although it can only be achieved via the use of an attachment power pack MB-21 instead of the standard built-in MB-20 configuration and for the first time an AF SLR model was able to provide comparable performance with the famed Nikon F3/MD-4 combination.

However, an AF SLR camera has many other functions than just driving the film to next frame and in the case of Nikon F4, for the first time, we saw a sophisticated and comprehensive composition of various motors with specific purpose being used: Four coreless motors are used: one each for film advance, shutter charging control, film rewind and autofocus operation.

This design has resulted with the camera carries with an astonishing reliability because multiple motors system is less stressful and more efficient in their respective performance. It has also enabled the F4 to deliver multiple options in variable film advance rates: Four film advance modes are selectable - CH (Continuous high speed), CL (Continuous low speed), Cs (Continuous silent) and S (Single film advance) and with a peak performance of a high-speed 5.7 fps film advance rate achievable at CH mode. The slowest film advance rate is actually call "silent"* mode where a very quiet film advance operation which is rated quieter than conventional lever-type film advance of professional cameras at Cs mode is also provided. * "Silent" is not truly silent as it was being quoted but merely refers to the environmental conditions, and it is not referring to the camera sound level during operation while a spool drive system applied to make film advance operation efficient.

corelessmotor3.jpg corelessmotor2.jpg

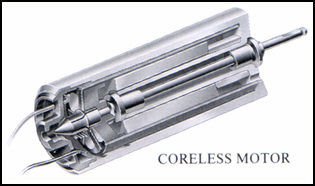

The four-motors partnership utilize in the camera are of the coreless type. Unlike conventional cored motor in which the coiled axis with large inertia rotates,, only the cylindrical coil with smaller inertia rotates with the coreless motor - this has resulting in a quick response for efficient drive. Despite the autofocus motor's compact size, it is powerful enough to drive all the camera functions and even large super-telephoto autofocus lenses.

Naturally, the camera driven Nikon AF SLR system excels in terms of compatibility but the embedding weakness was actually on the AF-Nikkor lenses (especially the super-teles lense group) and that was why AF-i Series of Nikkor lenses were introduced at later stage to compensate for such operational drawbacks during autofocusing.

Other than the AF motor mentioned above, the remaining three motors serve respective functions in the F4 as followed:

Shutter Charging Motor: Placed beside the sprocket, the shutter charging motor takes care of- mirror down operation. Approx. 20% of one motor rotation is dedicated to mirror control, aperture.) shutter magnet resetting and release magnet resetting; the rest takes care of charging the shutter curtains.
Spool Motor: Located inside the film spool, the spool motor is in charge of advancing film. The sprockets function as a film perforation counter and not as the film advancer of conventional cameras. However, when the 250-Exp. Multi-Control Back is in use, the sprockets do help drive the film.
Rewind Motor: Located at the lower side of the film cartridge chamber, the motor rewinds the film. The motor also
changes the filter of the Advanced AM-200 autofocus module.

| Click to view | F4's MOTOR DRIVE SEQUENCE BLOCK DIAPHRAGM (111k) Gif File

The shutter charging motor and film advance motor work simultaneously to achieve high-speed film advance (Parallel Control); when such high speed is not required, the sequence motor and the film advance motor are driven sequentially (Series Control), this two motors partnership ensures smooth and efficient operations inside the camera.

Focusing mode / Film advance

CH

CL

Cs

S

Continuous Servo AF

Parallel

Parallel

Parallel

Series

Single Servo AF

Parallel

Series

Parallel

Series

Manual

Parallel

Series

Parallel

Series


NOTE: Motor movement at Cs mode: When the film advance mode is set to Cs, the motor is driven with pulse electricity. The power repeats ON-OFF operation; this makes the motor repeat the sequence of fast and slow movement.
