Additional Information on
Fisheye-Nikkor 6mm f/2.8 lens



Fisheye-Nikkor 6mm f/2.8

The Nikkor Fisheye 6mm f/2.8 lenses between now and before 1977 was quite confusing. Many literature and web resources provide contradicting references which sometimes create more confusion. By chance, I managed to get a few Nikon publication distributed between 1976, 1978 and also a Sales Guide of 1979 provided by our local distributors, Shriro Malaysia (now Nikon has its own network called Nikon Corporation (Malaysia) Sdn. Bhd. I managed to scanned some of them for your visual reference. The early version in a prototype unit first debuted at Photokina 1970 has an external focusing lever on the distance ring. The projection of a circular image onto film is 23mm diameter and a massive 220 degree picture angle with an incredible lens speed of f/2.8 which very much contributes to its bulkiness. The first regular production unit was believed to be first marketed back in 1972 sold with a non-AI specification lens and followed with an upgrade in 1977 as AI lens. The lens remains as a special request production lens throughout its life span and it is still available via Nikon Sales Division while current version carries an Ai-S spec, which was introduced back in 1982, while optically and cosmetically remains unchanged until today.


Download a PDF File (83k)



<<<<<<<<--------- Scanned and retouched from a 1979's Nikon Sales Guide. The 6mm was mounted onto an Ai-Spec Nikon F2A SLR camera.

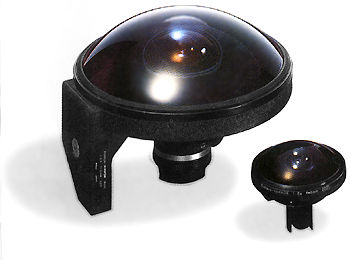

<<< --- Bottom Left: A non-AI Fisheye Nikkor 6mm f/2.8 as compared side by side with a fixed focus Fisheye Nikkor 6mm f/5.6 lens.

Dual lenses 6mm Fisheye Nikkor.jpg
Dual lenses AI-mount.jpgAbove: An early version of the non-Ai-Spec and Ai-Spec Fisheye Nikkor 6mm f/2.8 as compared side by side with a fixed focus Fisheye Nikkor 6mm f/5.6 lens. ---- >>>

Note: Production serial number started from 628801; AI-with ADR lens design began from 629001.
