Olympus Shared Resources - Zuiko Lenses
Sinaron Digital OM Zuiko 35mmf/2.8 SHIFT (Perspective Control
("PC") )
& Sinaron Digital OM Zuiko Auto Zoom 35-80mm f/2.8 Lense



HTML Page (23k) Loading ...

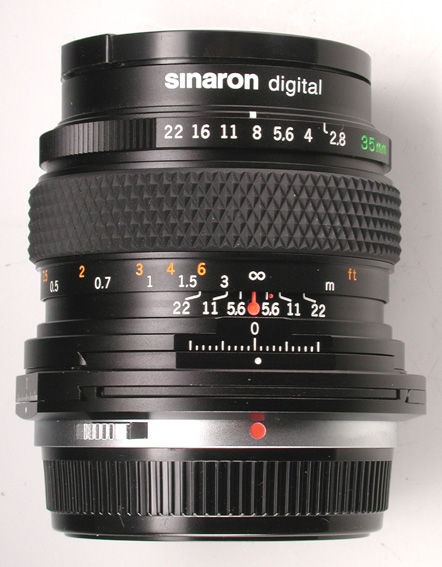

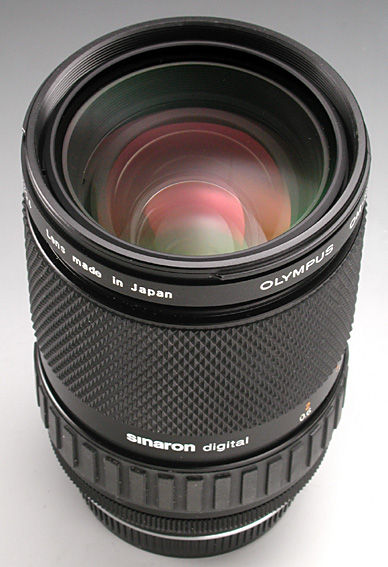

Sinaron digital OM  Zuiko 35mm f/2.8 SHIFT lense   Sinaron digital OM  Zuiko 35-80mm Auto Zoom.JPG

"... Hi Rick,. The Sinar camera that these lenses were used on was probably the Sinarcam.It had the first Kodak 6 Mp chip,I think.On the shot from the Sinar site the lens on that camera is (I think) the OM Zuiko 24mm shift.Vaguely I can remember Sinar offering the camera with a choice of Nikon or OM mount around 1997/8. Probably not a lot of lenses sold with the Sinaron Digital designation.I could imagine that Nikon would be more popular among pro photographers anyway.

I've already taken the photo's of the lenses against a grad background.So, sorry no pure white.Anyway,I'm putting the lenses up for auction on eBay soon.I didn't buy them to keep..just cannot afford my old hobby of collecting nice Zuiko glass.Times change,alas. Regards..." - S. Martin
-

These items are current being auctioned at:
http://cgi.benl.ebay.be/ws/eBayISAPI.dll?ViewItem&item=7522293607&ssPageName=ADME:B:LC:BENL:1
http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=7522168932&ssPageName=ADME:B:LC:UK:1

A little info relating to Sinar's Sinoron OM-Mount 35mm format lenses: A total of six OM Zuiko lenses have been converted as Sinora compact digital lenses

<<<--- Lense used in this illustration was an OM Zuiko Auto zoom 35mm-80mm f/2.8 as well as the 24mm Zuiko SHIFT

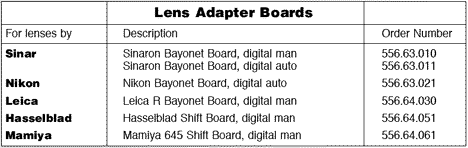

The Sinarcam 1 combines a digital adapter for the Sinar view camera system. The focusing image can be viewed on the computer monitor as a high-resolution live-video image of any desired size. In combination with the Leaf Volare digital back. Its universal adaptability features the possibility of quickly and easily converting the compact camera into a professional camera (by attaching it to a Sinar P2 Camera). The adaptation principle permits attachment of lenses from a great variety of manufacturers via a lens adapter board(s) where each board caomes with automatic springloaded aperture control (auto) automatically stop the lens down to the preselected working aperture when the live focusing image is turned off, Other than Sinar's own Sinaron Digital lenses in DB mounts (with the Sinar p2 view camera), the Compact version of the camera can also be used with lenses from Nikon, Olympus, Leica R or even the medium format lenses from Hasselblad & Mamiya 64 (rerquires a special shift board that provides the compact version of the Sinarcam with the capability of perspective correction). The Leaf Volare Digital Back produces images with a resolution of 3,072 x 2,048 pixels at a color depth of 14 Bit per color (16,384 gray tones).

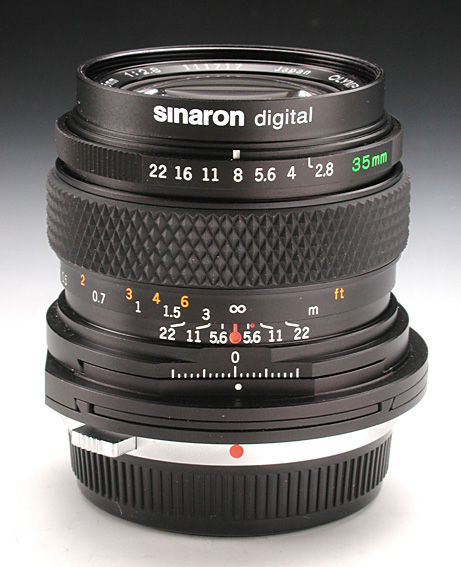

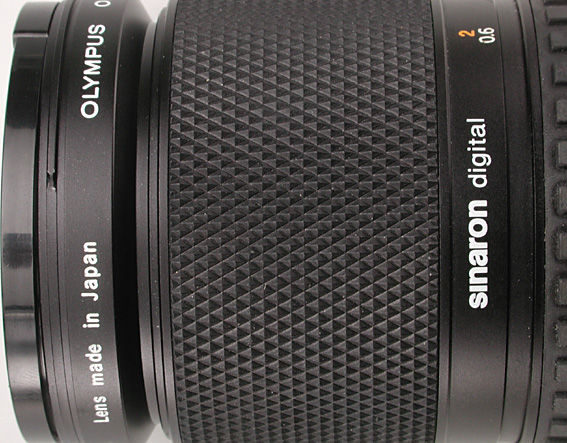

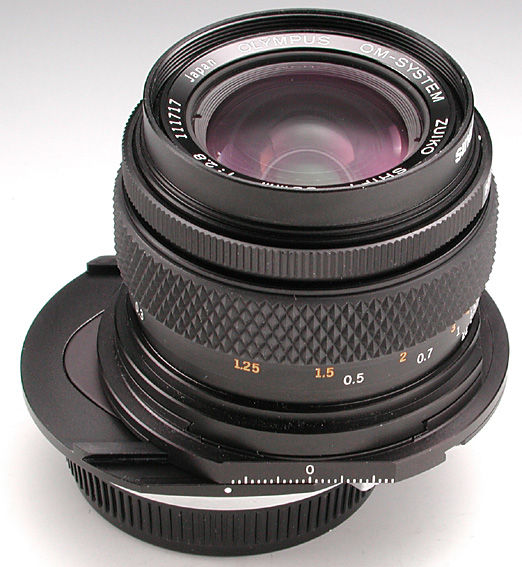

Sinaron-digital_OM35mmEsml.JPG Sinaron-OM35mmSHIFTbSML.JPG Sinaron-digital_OM35mmFsml.JPG Sinaron-OM3580mmASML.JPG Sinaron-OM3580mmBSML.JPG


Credit: A;; image courtesy of Mr. S.Martin®. who "works" like a pro when situations demands..hehe.. nice pictures shown here were all taken by Steve persoanlly, good imageries, right ? Steve was also a collector for various photo gear where occasionally trading some selective photo equipment. Image(s) copyright © 2005. All rights reserved. Please respect the visual property of the contributing photographer.

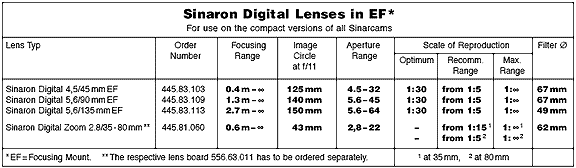

There are little info provided on the actual family of OM Zuiko converted lenses but Sinar's site has posted Cano's EF mount info (probably due to viable commercial reasons on the pool of mass market users':


Download related PDF Files (from Sinar.ch):-
www.sinar.ch/down/sup/dipe_zu_5e.pdf (118k)
www.sinar.ch/down/sup/dipe_vol_3e.pdf (245k)

Relative (original Zuiko lenses):
Olymous Zuiko 35mm f/3.5 SHIFT | OM Zuiko Auto Zoom 35-80mm f/2.8

Note: - Steve also was the one who has contributed the various scanning files of the Instruction Manual for the OM AUTO Tube 65-116mm.
