Modern Classic SLRs Series :
History & Background

File Size: HTML Page (38k) Loading ...

Nikon F2 History - Credit: Content appeared in this page (except images) courtesy of Michael Liu; camera courtesy of Edward Ngoh, pictured by MC Lau

Input of Thousands...

Because of the Nikon F's incredible popularity among professional and advanced amateur photographers, Nikon had a huge base from which to draw inspiration for the impending replacement for the F. Several refinements transformed the F into the more modern F2, including modularized internal construction (championed by repair personnel), a smoother and shorter winding stroke (welcomed by all), easier motor synchronization (applauded by photojournalists), and a hinged back (cheered by all people with fewer than three hands). Batteries were moved from the finders into the body itself, and mirror Lock-up was now a standard affair.

Nikon F Logo.gif 1962Fphotomic.jpg
Nikon F Website in MIR:

F_and_F2 Compared


Credit: All images appeared herein courtesy of Mr. Martin Norberg from Sweden. Image(s) copyright © 2005. All rights reserved. Please respect the visual property of the contributing photographer.

The F2 is a direct descendant of the F. The controls may have changed a bit, but the basic design was so similar that finders, screens, and of course lenses may be swapped between cameras without loss of function (except for the metered finders). Overall, the design smoothed off most of the F's hard creases; the sides of the body fit the hand a bit more nicely, plastic-tipped control levers were easier to manipulate and felt better, and the finders generally appeared slightly more modern, with the large, blocky angular Photomic prisms replaced by slightly smaller (by moving the battery compartment to the body) DP-x Photomic. I think that the F2 with DE-1 looks just as good as an F with eyelevel, while the various F2 Photomics look a bit too corporate and undistinguished/unusual compared to, say, a F with FTn. Anyway, Nikkormat series - the mid compact Nikon bodies designed to supplenment the bulkier and features-riched Nikon F and F2 have also mushroomed with eight (8) models in total. the Nikkormat has a fixed (non-removable) prism and the focusing screen is a fixed type with no motor drive system (the AW-1, a slow 2 frames per second power winder was workable only with the electronic Nikkormat EL-W & Nikon EL-2).

Nikon F2 Logo.gif Nikon F2a.jpg

Of course, there were those who groused that the F2 wasn't as durable or reliable as the F, and who refused to adopt the new camera until the last new F's were all sold out. Of course, these were the same people who later wholeheartedly avoided the F3 when it came out in 1980.
On the whole, though, the F2 was a runaway success. The improvement in mirror Lock-up alone is worth the added cost. The price was still forbiddingly steep, the camera was still heavy, but it offered the same bulletproof reliability and compatibility (to a degree yet unmatched by successive F models) demanded by loyal Nikon users.

System in Full Bloom

Not only was the F2 system impressively huge (including such esoteric items as an infrared remote control), it was extremely well thought-out and tightly integrated. Chances were that if you could think of a particular photographic method, Nikon had already thought about it, and had an accessory for you.

Even if you didn't need that Multiphot now, who knew what you'd be doing with your camera in the future?

The Nikon System offered room to grow beyond walking and snapping shots to setting up your camera unattended for time-lapse photography to offering a complete motorized camera + fast flash for reportage.

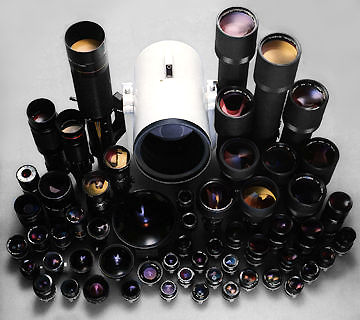

<<<<<<<<<<<---- The Nikkor lenses, one of the major factor contribute to Nikon F2's success have many pioneering technologies introduced during its era. Many of such optical innovation was still apply today.

Even if you think you'd never need something like a Microflex, you never know what sort of photography you'll do ten years or even ten weeks from now. Buying into the Nikon system meant that you were buying photographic insurance, of a sort -- assurance that your needs, no matter how esoteric, would be taken care of in the future. Chances are that you have bought a part of the F2's system -- whether a motor drive, special back, or more esoteric accessory -- without really worrying about whether the item you need is available or not (hard to get, though, is an entirely different manner ...). Even today, the F2 system is unsurpassed. The 1970's saw an explosion in manual-focus technology, with amazing new lenses (e.g. 13f/5.6, internal focussing, and ED lenses) and incredible triggering technology (MW-1, ML-1, and MT-1). The F2 was at the heart of it all, as photographic technology advanced as fast as Nikon could push it, while others struggled to keep up. Yes, the Canon F-1 system is also large and impressive; virtually all of its items have counterparts in the Nikon F/F2 system, though, with the notable exception of tilting lenses.

Professional's 35mm SLR

At the close of the 1960's, Nikon had a virtual stranglehold on the professional 35mm market. Minolta was only just beginning to make their own system camera, the Minolta XK (Motor). Canon had just unveiled their original Canon F-1 bare months before Nikon took the wraps off the F2. Pentax was left struggling with the inconvenience of the M42 thread mount before coming out with the KX and later Pentax LX. The wizards at Olympus conjured up a svelte dream in their Olympus OM-1/2 system. Kyocera/Yashica were about to resurrect a distinguished name and roll out the rapid Contax RTS. Even venerable Leitz par tenured with Minolta to produce the first Leica R3. Yet with all of these pro-oriented, system cameras flooding the market, the F2 continued to thrive and, indeed, extended Nikon's domination through the 1970's. Why?

Canon F-1.jpg

XK Motor.jpg



Canon F-1, 1971

Minolta XK, 1972; XK Motor, 1975

Olympus OM-1, 1971; OM-2, 1974

Contax RTS, 1975

In large part, the F's popularity had quite a bit to do with it. Many professionals and amateurs had already heavily invested in Nikkors, whether for use with their F, Nikkormat, or Nikkorex cameras. Because the F2 offered the same lens mount and accepted many of the same accessories, and would continue to do so for the foreseeable future, professionals could be assured that their investment was protected. Again, it cannot be said enough that the F2 system was the most extensive in virtually all kinds of photography. Sure, there were many specialized cameras that did one thing better than the F2, but the fact that the F2 was capable of performing virtually all of the photography that you'd ever need (short of larger formats -- and with the Speed Magny system, even that was a bulky possibility) was very attractive. Besides which, many of the different Nikon accessories were quite useful in many different fields: the Modulite ML-1 could be used to remotely trigger a camera, useful for either getting yourself into the picture or out of harm's way, the MF-1 250 exposure back freed reporters from having to stop and reload and made amazing time-lapse sequences possible, with the appropriate accessories.

Nikon F2 MD-3.jpg (18k) Loading..
Xtending the Legend As more and more F2's found their way into (and falling out of) professional hands, people quickly discovered the most touted F2 virtue -- its earthshaking reliability and solidness.

There are jokes floating around the 'net calling the F4 a blunt weapon that also happens to take pictures; those of you who've held an F2 with the MD-2/MB-1 (and a nice, balancing lens, like the 180f/2.8) know that you could make an F4 owner beg for mercy ...


At first glance, an F2 looks identical to a late-model F, especially when both are eyelevel-equipped. It's a feature, not a bug ... The F2 offered the same straightforward control layout of the F, with the minor difference of moving the shutter release to the front edge of the top deck. It presents the user with a deathly serious tool, one whose every appearance and feature quietly whispers to the Nikoneer and anyone close enough to hear, "I am here for any photo you can think of ...".

Credit: Image(s) appeared herein courtesy of Mr. Vincenzo Montalto from Bestdeals$$$® <> "Bestdeals$$$", who also operates a very popular Ebay Store, selling many unique camera equipment of various brands and labels and some of the images shown here was kindly granted permission by the Company. All images appeared herein are Copyright © 2003. All rights reserved. Please respect the visual property of the contributing photographer.
