Fuji FinePix S1 Pro - Specification

Technical Specification for Fuji FinePix S1 Pro Digital Still SLR camera

Technical Specifications for

Type of camera Interchangeable-lens SLR-type digital camera

Recording media • Slot 1: SmarbMedia (3.3 V)• Slot 2: Mic(odrive and CompactFlash (CF type II)

Recording modes Design rule for Camera File System-oompliant (Exif Ver.2.11 JPEG- compatible, TIFF-RGB or TIFF-YC), DPOF-compabble

Recorded image sizes 3040 x 2016 (6.13 megapixels), 2304 x 1536 (3.54 megapixels) and 1440 x 960 (1.38 megapixels)

Picture element 23.3 x 15.6 mm Super CCD with primary color filter (total no. of pixels: 3.4 megapixels in an interwoven pattern)

Sensitivity Equivalent to ISO 320, 400, 880 or 1600

Exposure control Auto, P, S, A, M, Portrait, Landscape, Close-up, Sport and Night scene

Lens mount Nikon F mount

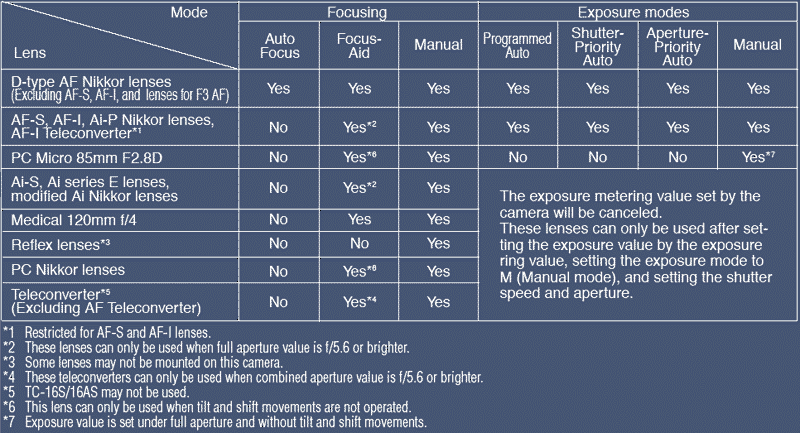

Interchangeable lenses AF Nikko; older lenses may have restriction. See below for compatibility issue.

Actual field of view Approx. 1.5x the rated focal length of the lens (for 35 mm camera equivalent)

Viewfinder Eye-level optical type (coverage: approx. W/o vertical and approx. 93% horizontal)

Eyesight adjustment -1.5 to +1.0 dpt

Auto focus TTL phase detection with auxiliary AF lamp

Lens servo AF (single AF servo or continuous AF servo automatically selected by the camera), M (manual)

Exposure metering modes 3D 6-zone Multi-pattern metering, 6-zone Multi-pattern metering and Center-weighted metering

Shutter Electronically controlled desoending-type focal-plane shutter 1

Shutter speeds 1/2000 to 30 sec.

Exposure compensation plus/minus 3 EV (in 1/3 EV step increments)

Self Timer 2 seconds or 10 seconds

AE lock BV memory type using AE lock button (Centre-Weighted metering)

Synchro contacts X contacts only (semiconductor-type), synchronized with External Flash at low shutter speeds of 1/125 see. and slower.

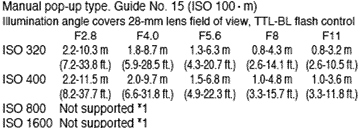

Built-in flash

* The flash does not operate correctly at IS0 880 and IS01 600. Use Preview mode to check the exposure when shooting at these film speeds.

Synchro modes Normal synchro, Red-eye reduction, Red-eye reduction slow synchro, Slow synchro (see below for compatibility issue)

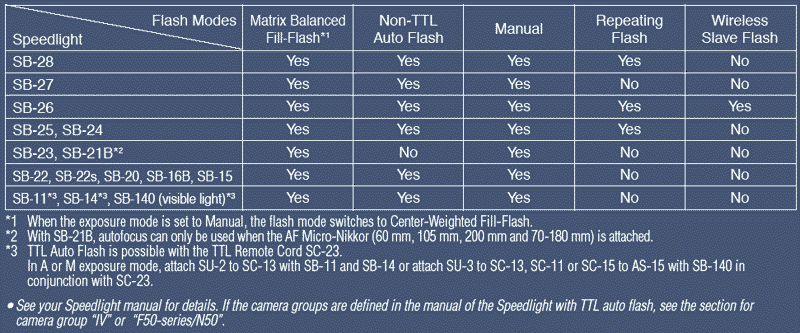

Accessory shoe Hot shoe (with flash contacts, TTL automatic flash control contacts and ready light contacts) With safety M mechanism

Remote release Release socket on shutter button

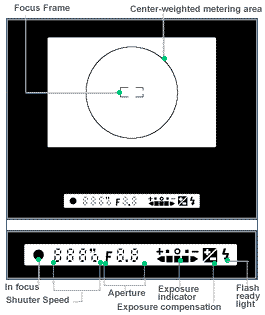

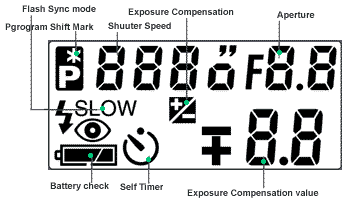

Information display Viewfinder display | Top display panel | Rear display panel (backlit)

Color LCD monitor 2-inch 200,000-pixel low-temperature polysilicon TFT

Video out mini pin jack (3.5-mm dia.) (NTSC/PAL)

Digital (USB) Data downloading to PC and taking Pictures your PC

DC input Used to connect AC Power Adapter AC-5VH

Auto Power Off Off, 2 min. or 5 min. (disabled during auto playback and when the camera operates connected to a PC)

Battery check A) Battery checking performed on camera and at image processor respectively. However, checking is performed on the camera when the battery adapter is used. B) Check levels: 3 levels (full, flat and low) If the battery capacity is insufficient in either the image processor or camera, a warning is displayed for 3 seconds and then the Auto Power Off function is triggered.

White balance AUTO, Sunny, Shade, Fluorescent 1, Fluorescent2, Fluorescent3, Incandescent and Custom

Playback Single frame, 44rarne, 94rame, Playback zoom, Histogram and Auto-play

Erase modes Format All frames, Single frame

Image quality settings Color, Tone, Sharpness

Other DPOF, Multi-exposure, Frame no. memory, Custom WB setting, Standard chart

Dimensions 148.5 x 125 x 79.5 mm (5.8 x 4.9 x 3.1 in.) (excluding LCD screen and attachments)

Mass (Weight) 880 g (28.2oz.) (body only, not including batteries)

Power supply Image processor 4 AA-size batteries (alkaline (provided), Ni-MH (sold separately) or Ni-Cd (sold separately)) Special AC Power Adapter AC-5VH (sold separately) CR2025 lithium button cell battery (supplied, for clock and settings backup)

Camera 2 CR 123A Lithium batteries (provided); Power also available from image processor using battery adapter. Built-in flash cannot be used when power level is too low.

Number of shots using batteries *2 Approx. 650 (without previews, recorded on SmartMedia, built-in flash off) (with Ni-MH batteries (HR-3UF) used in image processor and CR123A lithium batteries used in camera)

Operating conditions Temperature: O*C to +40*C. (+32*F to +1 04*F) (Note that the range for Microdrive is +5*C to +40*C (+41 *F to +1 04*F).) Humidity: 80% or less (no condensation)

* 2 This is a guide to the number of consecutive shots that can be taken at normal temperatures. Actual numbers may vary depending on the camera's operating conditions and the amount of charge in the batteries.

• The color LCD monitor on your digital camera is manufactured using advanced high-precision technology. Even so, small bright points and anomalous colors (particularly around text) may be less contrasty. • Design and specifications are subject to change without notice. • The color LCD monitor on your digital camera is manufactured using advanced high-precision technology. Even so, small bright points and anomalous colors (particularly around text) may appear on the monitor. These are normal display characteristics and do not indicate a fault with the monitor. This phenomenon will not appear on the recorded image.

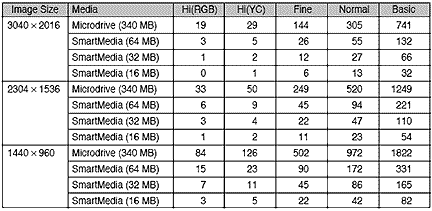

Standard Number of Available Shots (Recorded Images): The number of available shots varies slightly depending on the type of subject. The actual number of available shots also varies more widely from the standard number as the capacity of the media increases.

Compatible Media: This camera is guaranteed to operate with FUJI FILM SmartMedia. Although FUJIFILM has tested many major types of Microdrives and CompactFlash cards, some media may not be compatible with this camera.
Compatible Media (As of July 2000 ): Microdrive: IBM: 340MB; Compact Flash cards: Sandisk: SDCFB-16t32140/48/64/9a1128| | Lexer Media: 4x type 8 MB to 80 MB 8x type 8 MB to 160 MB

Batteries uses and symptoms When batteries are near depletion or depleted.

uses Symptoms when near Depletion

AA-size Alkaline batteries Image processing "Err" appears on the top display panel

Lithium batteries CR123A Power functions such as auto focus, aperture, mirror and shutter operation, and charge the flash. The camera will not switch on.

Button cell lithium battery CR2025 Stores the time and other settings When the AA-size batteries are removed for replacement, the time and other settings revert to the factory default settings.
