Additional Information on
Pre-AI version of the Nikkor 28mm f/2.0 Wideangle Lens


File size: 37K HTML

Non-Ai 28mm f/2.0 Nikkor

Between the early version which have starting serial number from 280001 and the AI Nikkor which starts from 335001, there could well be another update of the lens with a more modern Nikon lens cosmetic which was believed happened in 1975 (see picture below). Nikkor 28mm f/2.0 was one of those lenses which has clearly benefited from many fruitful optical research Nikon has developed over the years and thus, but if you are considering acquiring such a fast optic, please ensure the lens has at least AI-modified in order to be use with your AI camera bodies. Depends on your objective and /or the camera models you own (Ai or non-Ai), the lens remains a very attractive investment even at used condition or considering giving it a Ai-conversion if your camera is a Ai-Spec Nikon camera body.

28mmgroupPREAI.jpg 93k) Loading ...
Some of the Nikkor 28mm f/2.0 featured here which believed to have been introduced in February, 1976 may bear "Nikkor-N C" which was the earlier batch, the subsequent ones have omitted such designation and has only "Nikon" and "Nikkor". The main visual difference was the rubberized grip has three rows (Generally, the rubber grips Nikkor lenses introduce during this period was a little flat in height but Nikon improved their height slightly after AI lenses was introduced) and the aperture ring is diamond-ridged for better grip.

<<<--- A 1976 pre-Ai era Nikon sales leaflet shown with three 28mm lenses that have their respective with different appearance. The 28mm f/2.0 lense soon followed with the revised Nikkor cosmetic later.

NOTE:- Refer to the Rangefinder Nikkor lenses section for more info

With the brightest maximum aperture at this very popular focal length, and one of the brightest apertures available for Nikon/Nikkormat cameras, the 28mm f/2.0 Nikkor is a "natural" choice for available-light photography. Incorporated within this superb retrofocus optic is a highly corrected 9 element, 8 group configuration with a Nikon close range correction system for lop quality images at the very close 0.3m (1.0 ft) minimum focusing distance of the lens. The optical formula proves to be a very highly successful design as the lens remains literally unchanged optically throughout its entire product life span (except the Ai-S version after 1981). The picture angle of 74' offers ample widefield coverage for a variety of picture-taking applications, including industrial, architectural, land scales, travel and news shooting; and with a bright aperture of f/2.0, viewing and focusing are fast and precise.

28mmpreaif2.jpg 28mmf2preAIoptsml.gif
Another advantage of the wide maximum aperture of this lens is the control of depth of field that is possible via careful selection of the shooting aperture; the 28mm f/2 affords far greater flexibility than possible with wider angle lenses.

When used with a bellows focusing attachment, this lens can provide up to an impressive
8.7X magnification for a wide range of close-up applications. The 28mm f/2 Nikkor lens accepts the common 52mm screw in type accessories.

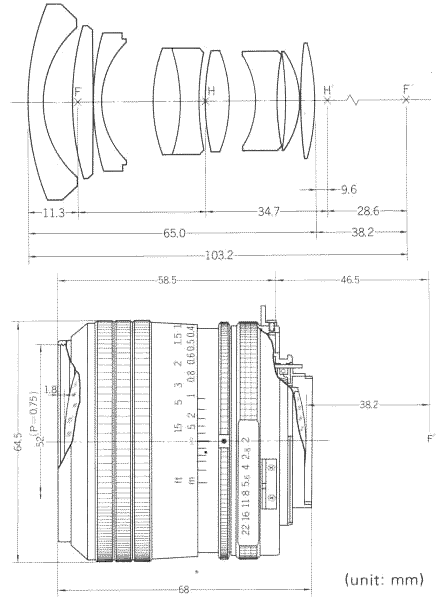

Download an Optical Construction file in new browser window: 21k Gif

Nikon guide to compatible focusing screen(s) selection, Depth of Field calculation chart and also tables of magnification achievable when used with various Nikon close-up attachment accessories with this 28mm wideangle lens.
Download a file in a new browser window 117k.Gif. Content is mainly extracted from Nikon Sales Manual(s) between 1974-1976.

Specifications:

Focal length:
28mm
Maximum aperture: 1:2.0
Lens construction: 9 elements in 8 groups
Aperture Scale: f/2 ~ f/22
Diaphragm
: Fully automatic
Lens Coating: Multicoated with NIC
Picture Angle: 74
°
Distance Scale: Graduated in meters and feet from 0.3m (1ft.) to infinity (
OO); infrared index is provide.
Exposure Measurement: via full aperture method; meter coupling prong provided
Meter coupling prong: Integrated (fully open exposure metering)
Attachment size: 52mm (P=0.75mm)

Lens hood: Screw-in type HN-1 (Optional)
Filters: 52mm Screw-in
Lens Mount: Nikon bayonet mount
Dimensions: 64.5mm dia. x 68mm long
Weight: 355g
Accessories Supplied: Rear protective cap LF-I (108-00-401); 52mm snap-on front lens cap (108-00-400);
Optional Accessories: 52mm screw-in lens hood HN-1 (108-01-201); Soft lens pouch No.54 (108-00-319); Hard lens case CL-31 with strap (108-00-308); 52mm screw-in filters; Close-up attachment lenses; plastic lens case CP-1 (108-00-300); Gelatin filter holder AF-1 (108-00-700).

Nikon Product Code for this discontinued item is No.108-01-137
Content appeared in this section is largely extracted from Nikon Sales Manual, 1974/1976; Note: Starting serial number for this lens was believed to have started from:
31xxxxxx.
