Modern Classic SLRs Series :
Nikon Interchangeable Prisms DP-2 for Nikon F2SB - Part VIII

File Size: HTML Page (33k) Loading ...

The next finder after the vastly improved DP-2 which came with a F2 model designation of F2S mentioned in earlier section; Nikon introduced another new exciting metered prism known as DP-3 a few years later in 1976. When mounted onto a Nikon F2 camera body, it is generally referred to as the "Nikon F2SB Photomic". It was the most scarce in number, because it was only briefly marketed for barely a year between 1976/1977. It was quickly replaced with an AI-version prism DP-12 (companion prism for Nikon F2AS Photomic) in 1977.

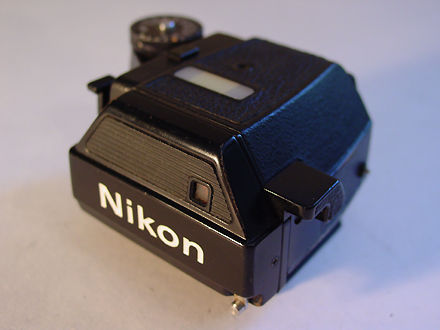

Nikon DP3 metered prism / finder as Nikon F2SB Nikon DP3 metered prism / finder as Nikon F2SB

Credit: Image of this early non-Ai Nikon F2SB with DP3 metered prism coutesy of: Russell Gough® <>". Russell also has a EBAY STORE on his own. All images appeared herein are Copyright © 2003. All rights reserved. Please respect the visual property of the contributing photographer.

The Nikon - F2SB Photomic (With DP-3 Finder) (Instruction manual for DP-11 Photomic Finder )

The F2SB Photomic (and F2AS Photomic) were the two most sophisticated metered prism ever offered to Nikon F2 bodies. Although the two varying AI coupling system used (AI & non-AI) made a lot of difference even reflected by differences of the prices on the used market but these finders not just "lived" for investors but rather they incorporate some very sophisticated metering circuitry you can find on the market during that era. It was also the first metered prism to use SBC cells (Silicon Blue Cell) which has a far more sensitive light-gathering behavior than photo cells used on other Nikon prisms. The cells are coupled with a five-stage lighting-emitting diodes (LEDs) display to provide exposure guidance which was very similar to the system employed in all Nikon FM series models.

Designed to fit any F2 Nikon camera body, the DP-3 incorporates the Nikon Photomic thru-the-lens metering method that concentrates 60% of the reading within the 12mm-diameter central portion of the view-field; thus, metering is quick and precise for varied lighting situations, and covers virtually 100% of the picture image frame as visible on the focusing screen.

The improved sensitivity has also enable both F2SB and F2AS to read light at its lower scale down to a marked shutter speed settings of 10 sec. ! The finder has a metering range from EV -2 ~ 17 at ASA 100 (8 sec. at f/1 .4 to 1/2000 sec. at f/8.0 at 1/2000 sec. with 50mm f/1.4 lens).

Additional sophistication employed in the metering system include a monolithic IC for exposure detection and indication, and a metallic thin-film resistor (the Functional Resistance Element or FRE); both of these devices help to ensure the most dependable operation under demanding picture-talking situations.

The DP-3 has three LED exposure indicators visible within the finder view field ("+" for overexposure, "o" for correct exposure, and "-" for underexposure); thus, the DP-3 is capable of providing easy-to-read exposure information in five steps, even at low-light levels. Additionally, the selected shutter speed and lens aperture settings are visible for maximum ease of operation. for setting the desired exposure.

If the plus (+) indicator lights, increase the shutter speed or decrease the aperture until the center (O) indicator just comes on and the (+) turns off; if the minus (- ) indicator is lit, decrease the shutter speed or increase the aperture until the center indicator lights.

CpmmonWelath games.jpg

When two LEDs light simultaneously (i.e., + and o, or - and o), the exposure setting is within 1-stop of correct exposure; thus, be sure to adjust the aperture setting slowly to get only the correct "center" (o) exposure. Values for the five settings of the LEDs are described in the figure on this page.

<< --- Commonwealth Games Rehersal, 1998. Copyright © 2000. CYLeow ® Photo Editor of the Star newspaper. Hosted by: Malaysian Internet Resources

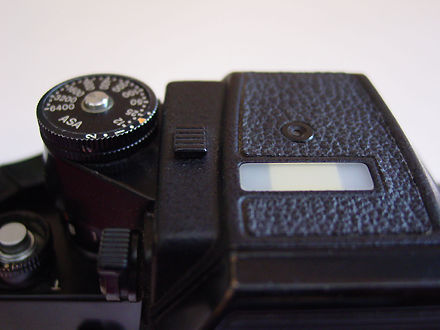

Other merits of the DP-3 include the display of shutter speed and aperture settings with in the finder, the built-in finder illuminator, and the ready-light for use with flash units. The top panel of a DP-3/DP-12 shares many similarities.

DP3 Toppanel.jpg
The built-in Illumination activates via a switch on top by sliding it. There is also a correct exposure indicator window so in situations like mounting on waist OR ground level, you need not peep through the finder to check exposures repeatedly after setup..

illuminator.jpg eyeshutter.jpg
Finder Illuminator

When shooting under low-light levels, the finder's shutter speed and aperture indicators (located just below the viewfinder image) often are difficult to read.

To solve this problem, the, DP-3 is fitted with a finder illuminator. To operate, slide the illuminator switch at the top of the finder toward the rear of the camera; with this action the shutter speed and aperture settings will glow red. Other than LEDs, the DP-3 also has incorporated an eyepiece shutter which can be used when the camera is fired remotely or in self timer operation to minimize extraneous light affecting its accuracy in exposure measurement. Further, The DP-3 works with either the DS-1 or DS-2 automatic aperture control unit for shutter-priority operation.
Nikon DP3 metered prism / finder as Nikon F2SB
Coincidentally, the remarkable Olympus OM-2 that has brought TTL flash and direct metering to the photographic world for the first time (announced in late 1973, marketed only in 1975) also used a pair of the similar sensitive photo-diodes at the camera base to handle OTF (Off the Film) direct metering (Exposure measurement is via another pair of Cds cells near the eyepiece). With the SBC cell, camera makers had found an new alternative technology than the commonly used Cds cells which was a common source during those era.

Credit: Image of this early non-Ai Nikon F2SB with DP3 metered prism coutesy of: Russell Gough® <>". Russell also has a EBAY STORE on his own. All images appeared herein are Copyright © 2003. All rights reserved. Please respect the visual property of the contributing photographer.
