One of the major factor contributing to the success of SLR camera is its ability to let you see the image through the same lens that is used to take the picture. Light rays reflecting off the mirror fall on a ground-glass focusing screen. But focusing screen has another purpose inside a camera. I am not sure whether you realize the fact that the distance from the lens mounting flange to the film plane is the same as the distance to the focusing screen by way of the mirror.

meterillus.gif screenB.jpg
So, if an image is in focus on the screen it will also be in focus on the film during an exposure process where the main reflex mirror moves out of the way. Thus, a focusing screen is the "template" for an final image which will eventually exposed onto film where you use the focusing screen to make focus adjustments as a substitute for the film plane.

Turtle in Ipoh.jpg
Most 35mm SLR manufacturers in one way or another provide a user interchangeable focusing screen feature for their mid-to-high-end SLR camera models. Nikon was the first 35mm SLR producers to offer this useful feature dating back to their Nikon F in 1959.

<<<< ------ Turtle living in temple, Ipoh. Copyright ©-free images collecton 2000. leofoo ® Hosted by: Malaysian Internet Resources

f2screen.jpg fescrnshw2.gif
Among all manual focus Nikons, camera that DO NOT provide such interchangeability are the Nikkormats, Nikon FM, the three ultra-compact Nikon models (EM, FG and FG-20), F-301 and the two below-spec Nikon FM-10/FE-10. Focusing Screens for mid-range Nikon bodies are made of acrilan; but screens for F-bodies are of glass which has better quality and protected by metal frames.

Nikon Interchangeable focusing screens can be separated into just two groupings. One group of them are designed for the midrange Nikon models which has a fixed pentaprism such as the Nikon FE, FE2, Nikon FA & FM2 series while another is specifically designed for the professional F-series bodies whose finder can be removed and also interchanged with many optional prisms.

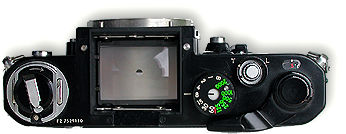

The fixed and interchangeable prisms design between these bodies also directly affecting the way how to handle screens change and handling. Nikon F2's screen changing is by removing the prism and using a drop-screen method.


While mid-compact Nikon bodies are confined to share just
3 types of focusing screens and interchange among all the camera models*; the screens designed for the professional bodies of Nikon F and F2 are more in numbers and varieties. Further, they have some level of compatibility between the two models and thus could be shared and use with one another**. The subsequent Nikon F3, F4 screens are not interchangeable nor can be used with older Nikon F or Nikon F2 bodies.

* Exposure compensation is required to work with respective Nikon SLR Models when interchanged with older Type K, B and E screens and the newer K2, B2 and E2 screens.* * All Nikon F screens can be used on the Nikon F2; however, slight modification is needed to adapt any F2 screens to a Nikon F.

With the F2's, you not only have a range of 14 orignal basic types of screens (plus a TV format screen introduced in later stages) to choose from but there are also subgroups within this range, giving a total of 19 types screens. The "varieties" of screen types are important to some,as there will be some jobs that just cannot be handled with speed and accuracy by a fixed screen supplied by the camera manufacturer.

<<<<<<<<<-------- A Basic standard Type K Screen ilustrated with a F2AS.

For many years, Nikon's standard focusing screen on their Nikon F and Nikkormat models was a Type A screen instead of the more familiar Type K that is so commonly found on many manual focus Nikon bodies. In fact, when the Nikon F2 was first introduced, the standard screen type used on the camera was also a Type A screen which has only a split image rangefinder spot in a 12mm reference circle but without the 1mm microprism collar.

Nikon F2 Screes.jpg (13k) Loading...
There is no clear rule to say which screen is the best because there is no one screen provides the perfect answer to every photographic situation. But rather, what screen best suit your personal preferences and working best with your other hardware, in particularly the lenses you have should more important. Any one screen is a compromise, and good in terms of focusing accuracy and convenience.

All just to ensure that whatever the situation or, whatever the lens in use, there is a using screen to match. This is important as both maximum aperture and focal length influence focusing, sometimes even causing the central rangefinder spot to black out.

| Previous | N E X T | 1/3 Viewfinder info, Basic Screen Types
