To set date and time with Between-Frames Data Imprint function If you have already set date and time with In-Frame Data Imprint function (pages 13 to 17), you do not need to set date and time with Between-Frames Data Imprint function.

For practice, adjust date and time to October 17, 1997, 15:45:00.


betweenframeU.gif betweenframeT.gif

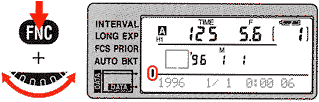

\1. Select Between-Frames Data Imprint function. While pressing FUNCTION button, rotate camera's MainCommand Dial until function indicator (11) appears next to the Between-Frames Data Imprint symbol.

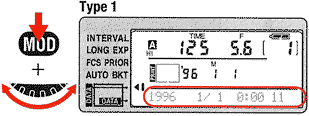

2. Select Year/Month/Day/Hour/Minute/Second display. While pressing MODE button, rotate camera's Main-Command Dial until the Year/Month/Day/Hour/Minute/Second display appears, Two types of Year/Month/Day/Hour/Minute/Second display are provided; select your desired type. (In the following procedure, Type 1 is used as an example.)

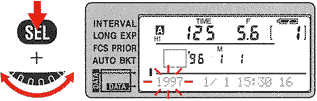

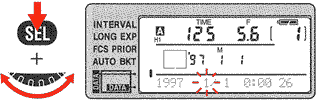

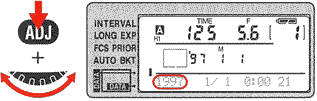

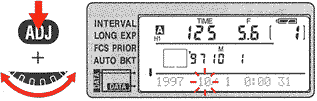

3. Set year. (1) While pressing SELECT button, rotate camera's Main-Command Dial until the year indication blinks. (2) While pressing ADJUST button, rotate camera's Main Command Dial until 1997 appears. Note: You can set any year between 1996 and 2095. (1996 will appear immediately after 2095.)
4. Set month. (1) While pressing SELECT button, rotate camera's MainCommand Dial until the month indication blinks. (2) While pressing ADJUST button, rotate camera's Main Command Dial until " 10" (or "OCT" in type 2 display) appears.

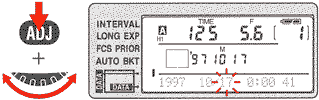

5. Set day. (1) While pressing SELECT button, rotate camera's Main Command Dial until the day indication blinks. (2) While pressing ADJUST button, rotate camera's Main Command Dial until 17 appears. Note: Nonexistent dates (i.e., February 30, June 31) cannot be set.

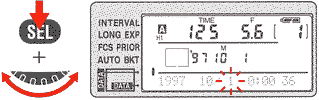

6. Set hour. (1) While pressing SELECT button, rotate camera's Main Command Dial until the hour indication blinks. (2) While pressing ADJUST button, rotate camera's Main Command Dial until 15 appears.

betweenframeZ1.gif betweenframeZ2.gif

betweenframeZ3.gif betweenframeZ4.gif

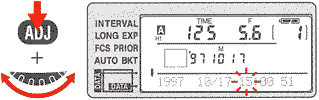

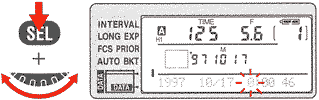

7. Set minute. (a) While pressing SELECT button, rotate camera's MainCommand Dial until the minute indication blinks. (b) While pressing ADJUST button, rotate camera's MainCommand Dial until 45 appears.
8. Set second. (a) While pressing SELECT button, rotate camera's MainCommand Dial until the second indication blinks. (b) While pressing ADJUST button, rotate camera's MainCommand Dial until 00 appears.

betweenframeZ5.gif betweenframeZ6.gif

betweenframeZ7.gif betweenframeZ8.gif

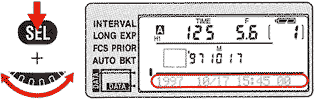

9. Complete date/time setting and start clock. While pressing SELECT button, rotate camera's MainCommand Dial so the date/time indications appear without blinking. Note: To set time to precise second: Advance the time one minute ahead of actual time. When actual time coincides with the time you have set, push SELECT button to start the clock.

To input caption of up to 8 characters with date/time For practice, input "NIKON-F5".

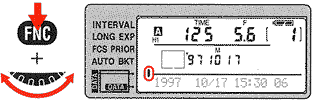

1. Select Between-Frames Data Imprint function. While pressing FUNCTION button, rotate camera's Main Command Dial until function indicator M appears next to the Between-Frames Data Imprint symbol.

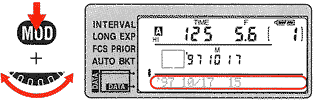

2. Select Year/Month/Day/Hour, Month/Day/Hour/Minute or Day/Hour/Minute/Second display. While pressing MODE button, rotate camera's Main-Command Dial to the desired display. (in the following procedure, Year/Month/Day/Hour display is used.)


betweenframeZ9a.gif betweenframeZ9b.gif

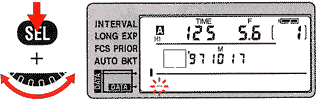

3. Activate blinking cursor. While pressing SELECT button, rotate camera's Main Command Dial so blinking cursor appears where you want to input the first character.
* if you have already input a letter, the letter and cursor will blink alternately. * It you have not yet set the date and time, set using the Year/Month/Day/Hour/Minute/Second display.

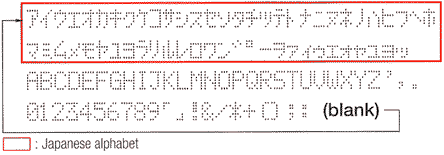

4. Select desired character. While pressing ADJUST button, rotate camera's Main-Command Dial until your desired character appears.

betweenframeZ9c.gif betweenframeZ9d.gif betweenframeZ9e.gif

5. Input next character. While pressing SELECT button, rotate camera's MainCommand Dial so the blinking cursor shifts to where you want to input the next character, Then, select a letter using the ADJUST button and camera's Main-Command Dial. Input the remaining characters, alternately following steps 3 and 4 for each.
6. Complete input of characters. While pressing SELECT button, rotate camera's MainCommand Dial until no indications blink.

betweenframeZ9f.gif betweenframeZ9g.gif

input caption of up to 22 characters practice, input "LOCATION IN CALIFORNIA".
1. Select Between-Frarnes Data Imprint function. While pressing FUNCTION button, rotate camera's Main Command Dial until function indicator appears next to the Between-Frames Data Imprint symbol.

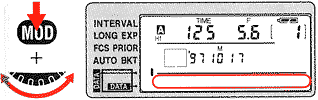

2. Select display for caption. While pressing MODE button, rotate camera's Main-Command Dial until the caption display

betweenframeZ9h.gif betweenframeZ9i.gif
3. Activate blinking cursor. While pressing SELECT button, rotate camera's Main-Command Dial so blinking cursor appears where you want to input the first character. - If you have already input a letter, the letter and cursor will blink alternately.


4. Select desired character. While pressing ADJUST button, rotate camera's Main Command Dial until the desired character appears.
5. Input next character. While pressing SELECT button, rotate camera's Main-Command Dial so the blinking cursor shifts to where you want to input the next character, Then, select a letter using the ADJUST button and camera's Main-Command Dial. input the remaining characters, alternately following steps 3 and 4 for each.
6. Complete input of caption. To complete, while pressing SELECT button, rotate the camera's Main-Command Dial until no indication blinks.

betweenframeZ9q.gif betweenframeZ9r.gif betweenframeZ9s.gif


To input caption of up to 18 characters with four-digit year For practice, input "(C) NIKON CORP. 1997".

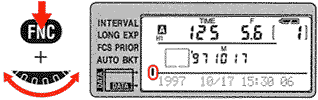

1. Select Between-Frames Data Imprint function. While pressing FUNCTION button, rotate camera's Main Command Dial until function indicator M appears next to the Between-Frames Data Imprint symbol.

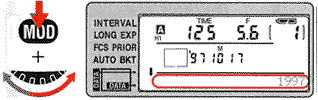

2. Select display for caption with four-digit year. While pressing MODE button, rotate camera's Main-Command Dial until the four-digit year indication appears at right of display.

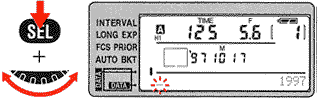

3. Activate blinking cursor. While pressing SELECT button, rotate camera's Main-Command Dial so blinking cursor appears where you want to input first character. If you have already input a letter, the letter and cursor will blink alternately.

betweenframeZ9t.gif betweenframeZ9u.gif betweenframeZ9v.gif




betweenframeZ9x.gif betweenframeZ9z.gif
4. Select desired character. While pressing ADJUST button, rotate camera's Main-Command Dial until your desired character appears.


5. Input next character. While pressing SELECT button, rotate camera's Main-Command Dial so the blinking cursor shifts to where you want to input the next character. Then, select a letter using the ADJUST button and camera's Main-Command Dial. Input the remaining characters, alternately following steps 3 and 4 for each.
6. Complete input of characters. While pressing SELECT button, rotate camera's Main-Command Dial until no indications blink.
