F O R E W O R D

Designed with a combination of strong and reliable construction, plus today's newest and most advanced technology, the Nikon F5 35mm SLR and the Nikon system will provide you with the opportunity to advance your picture-taking capability. The Nikon F5 has been designed and built to meet the needs of demanding professionals, for sports, photojournalism, scientific, industrial, forensic and nearly every other professional use of photography, as well as high-quality personal photography. The F5 features Nikon's F system bayonet tens mount, and offers its highest level of performance and features, with D-type AF Nikkor lenses. Performance and operation of available features will vary when used with Nikon lenses other than D-type AF Nikkor. The F5 features an all-metal, die-cast chassis, a moisture- and dust-resistant metal exterior cover, and the world's first self diagnostic, self-adjusting, high-performance shutter to provide truly reliable performance.

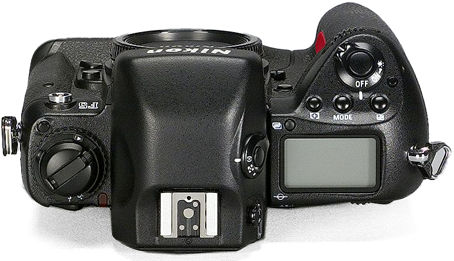

Credit: Image at the top left hand side courtesy of foto275® who also has an Ebay Store selling many used photo equipment. Image copyright © 2003. All rights reserved. Please respect the visual property of the contributing photographer.

Nikon has developed quite a few new features for the Nikon F5, some of which are very innovative - surpassing all others previously available. In some areas, the camera provides you with the most advanced performance. For an example, its fast motor drive with Focus Tracking and Lock-On technology is the fatest in its calss, the new 1,005-sensor Nikon 3D Color Matrix Meter, variable Center-Weighted Meter, Spot Meter selectable with five points, Multi-Sensor Balanced Fill-Flash, near-silent Cs film advance mode and more. Available options include the near-silent Nikon AF-S Silent Wave Motor Lenses, Multi-Control Backs, and more, Nikon, the long-standing leader in professional quality photographic equipment, offers the F5's leading-edge technology to meet the demanding needs of today's photography.

Because the F5 includes so many now and innovative features, you should thoroughly read the instruction material provided. Experiment, enjoy - your personal experience will provide you with the ultimate education. You'll also want to inquire about unique Nikon accessories designed for the F5. These include Multi-Control Back, the personal computer link system, the AF Nikkor interchangeable optics, the Nikon close-up system, remote control system and much more.

mapfrontsideSML.jpg maptopSML.jpg maprearsideSML.jpg
Click to open a page on Main Reference Map

Technical Highlights of Nikon F5:


* Nikon's exclusive new cross-ranged, five-area autofocus sensor (Multi-CAM 1300) system covers a wider area than any system before it in both the horizontal and vertical ranges in the viewfinder.
* Choice of two modes for Nikon's exclusive five-area autofocus operation-Dynamic AF for moving subjects, and fixed Single Area AF.
* Five focus areas are selectable, and the focus bracket turns from gray to black to indicate the selected focus area (with standard EC-B type focusing screen).
* Exclusive new powerful motors and CPU enable a high speed film advance of up to 8 frames per second (fps) even with automatic Focus Tracking operation.
* Exclusive 3D Color Matrix Metering using a new 1,005 pixel RGB sensor to read a scene's color as well as brightness and contrast.
* Flexible Center-Weighted Meter enables sensing area size to be changed (with Custom Setting). Spot Metering changes the meter's sensing area to correspond to the manually selected focus area.

Cadillac Ranch I always take the oppurtunity to invite some friends to present some of their work in a new site. The world is a BIG place to live with. Each of us has own culture, custom and lifestyles, the medium is a perfect tool to bridge all these.

Credit: Image courtesy of my friend, RICK OLESON® who is a very damn bloody knowledgeable photographer in Nikon, Canon & other oldies. He has also helped in maintaining a few Message Boards in MIR. Rick own site can be accesssed by CLICKING HERE where you will find many written content on camera hardware as well as picking up some good tricks. Image copyright © 2003. All rights reserved.

* Self-diagnostic double-bladed shutter that's tested to 150,000 cycles, featuring Nikon's exclusive shutter monitor.
* AF start button activates AF independently of the shutter release button (with Custom Setting).
* 1/300 High-Speed Flash Sync (with Custom Setting; 1/250 sec. at normal setting).
* Menu of 24 Custom Settings for added versatility.
* Fortified aluminum-alloy die-cast body covered by durable aluminum housing, titanium viewfinder housing and easy-to-grip, slip-proof rubber-rainforced surface finish.
NOTE: Nikon F5 is fully guaranteed by Nikon against any manufacturing defects for three full years from the date of purchase. During this period, repairs or adjustments will be made free of charge only upon presentation of the Nikon Worldwide Service Warranty Card to any of the Nikon service facilities listed. Contact an authorized Nikon dealer or service center for more details. Nikon recommends that you have your camera serviced at an authorized dealer or service center, at least once every two years. Next, camera's performance has been optimized for use with Nikon brand accessories. Accessories from other manufacturers MAY not meet Nikon's criteria for specifications, and non conforming accessories could damage the F5's components. Nikon cannot guarantee the F5's performance when it is used with other than Nikon brand accessories.

Credit: Image at the top left hand side courtesy of foto275® who also has an Ebay Store selling many used photo equipment. Image copyright © 2003. All rights reserved.

Index Use (page by Page) | Glossary to get definitions on various terms used in this manual.

How this instruction manual is organized

Before You Begin: Describes information required before you start using your camera,
Preparation: Describes preparation of camera, loading of batteries and film before taking pictures.
Basic Operation: Introduces basic shooting using the most basic settings.
General Functions: Explains photography fundamentals with the F5 including the advance mode, focus area, focusing mode, metering system arid exposure mode.
Advanced Operations: Presents advanced F5 applications for obtaining various photographic effects
Controls in Details: Describes the F5's various features in detail, points to e checked and other pertinent items.
Flash Photography: Introduces various flash photography methods using an optional Nikon Speedlight
Accessories: Lists lenses, accessories, tips on camera and battery re, arid other miscellaneous information

<<<--- Credit: Image courtesy of Mr. Edwin Leong® from CameraHooby.com. Edwin is also the moderator for immensely popular NikonLink.com website. He also maintained a personal on-line portfolio where I have spotted this image for use in this site. Image copyright © 2005. All rights reserved. Please respect the visual property of the contributing photographer.
