Exposure Metering System Nikon F5 has three types of exposure metering systems: Color Matrix Metering, Center-Weighted Metering and Spot Metering.

3D Color Matrix Metering This system is ideal for quick operation In any exposure mode. With D-type AF Nikkor lenses including AF-S or AF-I Nikkor, 3D Color Matrix Metering is automatically activated. 3D Color Matrix Metering uses various types of data: scene brightness, scene, contrast, focused subject's distance (Distance Information) and color distribution of the entire frame.

Data on scene brightness, contrast and color distribution are detected by the camera's 1,005 pixel Matrix Sensor, while data on the focused subject's distance is detected and relayed by the D-type AF Nikkor lens. Information sent by the camera's autofocus system indicating whether the main subject is centered is also considered in the computation, By analyzing these data, the F5's built-in microcomputer is able to provide correct exposure even in extremely complex lighting situations.

NOTE: If a non-D-type lens is used, Matrix Metering is performed. Although lens' Distance Information is not given, 1,005-pixel Matrix Sensor provides the correct exposure in most lighting situations. Please also note that Matrix Metering system can only be used with lenses having a built-in CPU (such as AF Nikkor and AI-P lenses)

Center-Weighted Metering With approximately 75% of the meter's sensitivity concentrated on the 12mm-dia. circle within the viewfinder and 250/. outside this circle, this meter becomes useful in situations where you want to base exposure on a specific area in the scene. In auto exposure mode, to measure the brightness of the picture's off center portion, use the camera's AE-L/AF-L button.

CSM icon.gif
In Center-Weighted Meter! that concentrates 75% of the meter's sensitivity can be changed to 8mm-dia., 20mm-dia. circle or average on entire viewfinder by using Custom Setting #14


Spot Metering: Nearly 100% of the meter's sensitivity is concentrated on the 4mm-dia. area (approx. 1.5% of entire frame) within the selected focus area of the viewfinder, (6mm-dia. area or approx. 3.3% of entire frame with focusing screens other than EC-B type.) Use this meter for highly selective exposure control - achieving the best results requires experience.

NOTE: When Spot Metering is selected, shifting focus area also shifts Spot Metering area to corresponding position (with EC-B focusing screen only).

| Color Matrix Metering | Center-Weighted Metering | Spot Metering |

Setting Metering System Rotate the metering system selector while pressing the metering system selector lock release to select your desired symbol -icon-matrixsml.gif for 3D Color Matrix Metering, icon-CW.gif for Center-Weighted Metering or icon-spot.gif for Spot Metering-In the viewfinder.

basic19c.jpg basic19a.jpg basic19b.jpg basic19.gif

If you are using a lens without CPU, or accessories such as bellows or extension rings The 1,005-pixel 3D Color Matrix Metering automatically switches to Center-Weighted Metering and the icon-CW.gif symbol appears. (If Programmed Auto or Shutter-Priority Auto is set on the camera, the exposure mode also switches automatically to Aperture-Priority Auto with and blinking exposure mode indicator in the top LCD panel, and A appears in the viewfinder) In this case, use Center-Weighted Metering or Spot Metering.

Exposure Modes Light reaching the film Is controlled by shutter speed and lens aperture. The proper combination results in a correct exposure, Shutter speed and lens aperture settings are based on the ISO speed set for the film in use and the operation of the camera's exposure control system. The relationship between aperture and shutter speed is as follows: For example, a shutter speed of 1/500 sec. admits half the light of 1/250 and double the light of I /1000 sec. An aperture of f/8 admits half the light of f/5.6 and double the light of f/1 1. if the correct exposure for a scene is 1/500 at US, then we can also select 1/250 at f/1 I or 1 A 000 at f/5.6 and achieve the same exposure results, and so on.

Selecting a Preferred Exposure Mode In selecting the exposure control mode, you can choose whether you want to set the shutter speed and/or lens aperture automatically or manually. The Nikon F5 camera offers four types of exposure modes: Programmed Auto (P), Shutter-Priority Auto (5), Aperture Priority Auto (A) and Manual (M) exposure modes.

icon-P.gif   Programmed Auto Exposure Mode With the F5's microcomputer choosing life combination of shutter speed and aperture automatically, you can concentrate on picture composition without worrying about exposure. Note that programmed auto exposure mode operate only with Nikon lenses that have a built-in CPU (AF Nikkor and AI-P Series of Nikkor lenses).
Programmed Auto exposure mode is used for most common picture-taking situations and combining with Nikon F5's 3D Matrix Metering system, most picture situations can yield optimum results.

In Programmed Auto exposure mode, you can use the Flexible Program function to temporarily shift an automatically selected shutter speed/aperture combinations and obtain the desired shutter speed/aperture while retaining the same or a consistent exposure.

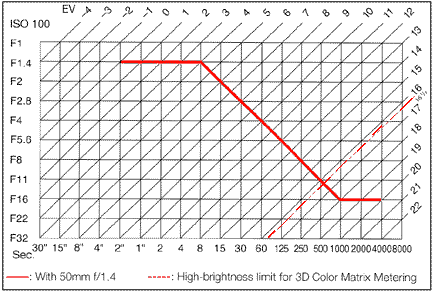

Program chart: To check shutter speed and aperture values, follow the red lire to where it intersects the diagonal line. This shows the combination of aperture (vertical line) and shutter speed (horizontal line).


iconS.gif   Shutter-Priority Auto exposure mode Allows you to manually set your desired shutter speed. To freeze the action, use a high shutter speed; to create motion effects, choose a slower shutter speed. The F5's microcomputer automatically selects the proper aperture to match the manually set shutter speed to ensure a correct exposure.

Note that Shutter-Priority Auto exposure mode operates ONLY with Nikon lenses having a built-in CPU (AF Nikkor and Ai-P Nikkor lenses)

icon-A.gif   Aperture-Priority Auto exposure mode By varying the aperture, you can control the depth of field. Smaller apertures make the background and foreground sharper (recommended for landscape pictures) while larger apertures tend to blur the background (recommended for portraits).

Your selected aperture will determine the shutter speed that is automatically set by the camera's microcomputer. When using smaller apertures with correspondingly slower shutter speeds, remember that, generally, any speed below 1 (focal length in use) second, requires the use of a tripod to prevent picture blur due to camera shake, The higher the corresponding shutter speed to the aperture you set, the easier it is to stop action. Adjust the selected aperture if the speed is not appropriate for conditions or the specific effect you want.

../images/icon-M.gif   Manual exposure mode Manual exposure control allows you to make both aperture and shutter speed settings. For a technically correct exposure, follow the recommendation of the camera's light meter, as indicated by the LCD readout.

To achieve a specific creative effect (e.g., intentional blur, intentional under- or over-exposure), disregard the LCD and modify the recommended exposure settings.
