Canon EF 70-210mm f/4.0 telephoto Zoom lens
Marketed 1987 Discontinued: 1990

IF the earlier Canon EF 80-200mm f/2.8L may not be your cup of tea (an expensive cup, indeed..) Canon did offer a very interesting EF 70-210mm f/4.0 for consideration - interesting because unlike many EF lenses - it actually provides an unusual ONE-TOUCH zoom and focus control. The lens barrel has a marked zoom settings at 70mm, 100mm, 135mm and 210mm for quick visual guide during slide and pull action. It has an one f-stop slow maximum aperture, no UD glass, neither has USM for swift and quiet AF operation but the most attractive factor is its size, weight and affordability. For those who may has missed the entire generation of the manual focus Canon FD days, the zoom range of 70-210mm was first popularized by a Vivitar Series 1 70-210mm f/3.5 MACRO tele zoom - probably was also the first zoom lense which incorporated with an impressive close focus ability (1:4).

USAF B2 Bomber by  Jason Christman (43k Jpeg) Loading ...
Advantage and flexibility of a zoom lens is apparent in quick composing shot like this.

An awesome USAF B2 Bomber that can strike& demolish any spot in this globe into ashes from US mainland ..

Credit
: Image courtesy of Jason Christman from US. whose PORTFOLIO can be accessed at PBase. Image copyright © 2006. All rights reserved. Please respect the visual property of the contributing photographer.

Canon EF 70-210mm f/4.0 by  k.chen2
The Canon EF tele-zoom 70/210mm also matching with its magnification ratio at 0.24X (the previous FD 70-210mm @ 1:4) . The focus preset can be set to either MACRO-OO or 1.5m to OO with option to manual focus the lens. During macro focusing, the focusing index window will shown with an orange line. The infrared index also provide three separate indexes for 70, 100 and 210mm when it zooms. As the lens zooms via a single ring, the manual focus ring is rather thin - could have improved with a wider grip.

<<<--- It is a PULL & SLIDE Zoom.

The EF 70-210mm f/4.0 was also among the early batch of EF lenses launched with the EOS system but it didn't last long and by early '90, Canon discontinued its production and replaced it with a cheaper, very compact consumer grade EF zoom lens that comes with a variable aperture of f/3.5~4.5 USM in 1990. Those who found the EF zoom category of the early tele-zoom which actually comprised of a EF 50-200 f/3.5~4.5L or the fast speed 80/200mm f/2.8L and could be way too expensive for many consumers who may have bought some entry level EOS SLR, so one may find alternate EF 100-200 f/4.5A, EF 100-300mm f/5.6 (L) as consideration. The lens DOES NOT has a USM configuration - instead, it has an EF Electro Focus Arc-Form Drive (AFD) and features Electromagnetic Disphragm control only. Optically, there is a little surprises, as optically, it has a molded Aspherical element inside. Based on the simple 11 Elements in 8 Group optical, the claim may has some basis.

Canon EF 70-210mm f/4.0 by mayskyold@EBAY
Although the EF 20-210mm f/4.0 may not pack with too many fancy gadget, but it is very usable for many photographic usage. For the serious users who may prefer to look at the spec sheet - according to a read from Gunter Spitzing's EOS-1 user guide (Hove books) he claimed this Canon tele-zoom was among the "most popular" EF tele-zoom lenses sold back in those days. As most early EF lenses are solidly build, so does this lens, a solid stainless steel EF mount...rare treat.

Credit: All the images shown in this page relating to the Canon EF 70-210mm f/4.0 courtesy of k.chen2® from MaySkold@EBAY where I find this rare EF zoom image from his EBAY STORE. Image copyright © 2006. All rights reserved. Please respect the visual property of the contributing photographer.

Canon EF 70-210mm f/4.0 by  k.chen2, Miami
Technical Specification for Canon EF 70-210mm f/4.0 Telephoto-Zoom: -


Type: - Autofocus tele-zoom lens type with manual focusing mechanism
Focal Length:
Single ring for Zoom control zoom range from 70mm- 210mm
Focus Adjustment:-
Autofocus; AFD
Manual Focusing:- possible via AF/M switch
Zoom Adjustment:- SINGLE Ring control with marked zoom settings at 70mm, 100mm, 135mm and 210mm.
Closest Focusing Distance:- 1.2m (3.9ft)
Maximum Magnification:- Max. 0..24X at 210mm setting

Discontinued Canon Product icon
| Questions, Issues & Answers | Canon EOS-1 Series Message Board
| Canon EF lens Board | in a shared environment
| Free Trade Zone | shared environment

Canon EF 70-210mm f/4.0 by  k.chen2, Miami
Drive System:- AFD (Arc-Type Focusing Drive)
Distance Scales: Provided via window on metres/feet.
Angle of View:- 34°
11° 20' 45° (horizontal, vertical and diagonal)
Aperture range:- f/4.0 - f/32
Number of Diaphragm Blades: - 6 blades
Minimum Aperture: - f/32
Filter rotation: yes.
Filter Attachment Size:- 58mm front mounting
Lens construction:- 11 Elements in 8 Group
Others: - Extension Tube Extension Tube EF12(II): no info; Extension Tube EF25 (II) 0.14-X ~ 0.37X;
Length:- 137.6mm (5-7/16")
Weight
:- 605g (21.4 oz.)

Status:
Discontinued.



Canon EF 70-210mm f/3.5-4.5 USM
Marketed: 1990 Discontinued: ~

When Canon replaced the EF 70-210 f/4.0 featured above, they actually fixed the retail price of this new replacement the same with the old lens. Is that any justification for a smaller variable maximum aperture lens when the zoom range changes ? I don't know. But other than the compromise on a dimmer maximum aperture and reverting to current DUAL zoom/focusing ring design, the lens is smaller than the predecessor and - looks more solid. Another premium was an addition of a USM from the AFD used in the previous version. The zoom ratio is marked on the lens barrel with 70mm, 100mm, 135mm and straight to 210mm. The grip has an updated design but the focusing ring is smaller than ever. Further, a tiny orange MACRO symbol is printed next to the display window as a guide when the focusing index line turns yellowish-orange as well. The infrared index has eliminated the 100mm setting and retaining only two at 70 & 210mm respectively.

Scene of Portugal by Andre_Antunes (68K Jpeg) Loading ...
Credit: Image courtesy of Andre Antunes from Portugal whose PORTFOLIO can be accessed at PBase. Image copyright © 2006. All rights reserved. Please respect the visual property of the contributing photographer.

Canon EF 70-210mm f/3.5~4.5 USM
It is a 3X telephoto zoom ratio lens, featuring a built-in Ultrasonic Motor and a middle of the road maximum aperture which mainly contributes to its compact size. Besides, the small dimension of the lens was achieved using a newly-designed five-group zoom lens construction internally. By utilizing the 4th lens group in a rear focusing system, spherical aberrations are minimized and sharp, high-contrast image quality is realized throughout the zoom range.

<
<<---Credit: Phoon Photo, Ipoh for lending me the lens for taking the few photos shown in this site. Slightly distorted with the tiny Sony compact at close focus. hehe ..

Despite the compact size, a close focusing distance of 1.2 m/3.9 It is attained at all focal lengths and a magnification ratio of 0.17X is possible - at the useful, longest 210mm setting for less distortion of perspective. Excellent operability is achieved through use of a wide zoom ring and an Ultrasonic Motor which provides fast and silent autofocusing and allows manual focusing at any one time for fine focusing while the lens is in AF mode. Its metal lens mount at the rear section separates this lens from many cheaper EF zoom that comes with the hardened plastic mount. Overall, given the budget and combining with its performance + lease in handling, I like this lens

This lovely lens makes a very good combination if you intend to built a two lenses system with either, an ultrawide or wide to mid-tele range of zoom. But as the Canon EF lens group expands in its many varieties and type with the commercial consideration of minimizing overlapping focal length; it was eventually being phased out in the product chart. Lense like the EF 70-300mm f/4.5~5.6 or the cheaper EF 75-300 group makes this lens less appealing to cost conscious consumers who seek for better value in a more extended 4X + zoom ratio. Doubting me ? just take the EF 75-300 f/4.5~5.6 MK III - it has evolved into its third phase of upgrade while IS (Image Stabilizer) has also been installed in the EF 70-3-- f/4.5~5.6 DO IS USM....good news is, since it has been phased out, prices in the used market also falls accordingly, on a recent search via Ebay BUY IT NOW - I have found this lens retailed fore USD 225-00 while a comparing EF 70/300 IS USM asked for USD600-00, DO IS USM version is around USD1,100-00; while all these make the older lense comes with an exceptional value.

Officially, when Canon first shown the photo community with the worthy upgrade of EF 70-200mm f/2.8L in 1995, they have indirectly created a new trend setting zoom range on their own as the previous 80-200mm as well as 70-210mm were more like "somebody's" innovation. Unless I am wrong with Canon pull off with some surprises, this EF 70-210mm f/3.5~4.5 USM could have been the last of its kind in the EF lens group, I guess.

Technical Specification for Canon EF 70-210mm f/3.5~4.5 USM Telephoto-Zoom: -

Type: - Autofocus tele-zoom lens type with manual focusing mechanism
Focal Length: Variable zoom range from 80mm- 200mm
Focus Adjustment:-
Autofocus; USM; Inner and rear focus design
Manual Focusing:- possible via AF/M switch; Full time Manual focusing during autofocus possible
Zoom Adjustment:- Dual Ring control, via rotational zoom ring control
Closest Focusing Distance:- 1.2m (3.9ft)
Maximum Magnification:- Max. 0.17X at 210mm setting
Drive System:- USM

EF70210rear.jpg EF70210frontlensjpg
Distance Scales: Provided via window on metres/feet with MACRO distance scale
Angle of View:- 29° ~9
°20' 19°30' ~6°20' 34°~11°20' (horizontal, vertical and diagonal)
Aperture range:- f/2.8 - f/32
Number of Diaphragm Blades: - 8 blades flare-cut diaphragm
Minimum Aperture: - f/22~f/27 * varies according in accordance to various
EOS SLR models used.
Filter rotation: No
Filter Attachment Size:- 58mm front mounting

Candit at KLIA airport (68K Jpeg) Loading ...
A not-so-happy, boring wait at the Airport..

Credit
: Image courtesy of my long time buddy, Calvin Siow from Malaysia whose PORTFOLIO can be accessed at PBase. Image copyright © 2006. All rights reserved. Please respect the visual property of the contributing photographer.

Lens construction:- 14 Elements in 10 Groups Rear/Inner group focus shift control
Extenders: Usable but not advisable
Others: - Extension Tube Extension Tube EF12(II): no info; Extension Tube EF25 (II) 0.13-X ~ 0.47X;
Diameter:- 121.5mm x 73mm (4--3/4" x 2-7/8");
Weight
:- 550g (19.3 oz.)
Accessories:- lens hood:- ET- 65II; Lens Cap E-58U; lens hard case: LH-C16; Soft Case ES-C17; Lens Dust Cap E Rear Cap, Gelatin Filter Holder Adapter usage: no info;

Status:
Discontinued.

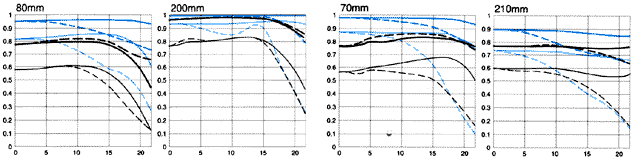

A comparison between the Canon EF 80-200mm f/2.8L and EF 70-210mm f/3.5~4.5 USM published in the Canon Lens Work I .

| previous | The fast speed Cannontele-zoom EF 80-200mm f/2.8L counterpart
| Next | Consumer grade EF 80-200mm f/4.5~5.6 (USM); EF 80-200mm f/5.6 MK II (not ready yet & please don't wait)
