Modern Classic SLRs Series :
Nikon Interchangeable Prisms DP-12 for Nikon F2AS - Part XVI


File Size: HTML Page (30k) Loading ...

The MF-3 auto rewind stop film back, 250 MF-1 and the exotic 750 exposures MF-2 Bulk film back are specialized offerings in their respective class to enhance its capabilities. The unique offering of the Speed Magny Back can instantly transformed the 35mm Nikon into 4x5 film, including Polaroid in 3-1/4 x 4-1/4 film packets.

The F2AS, along with the non-AI version of F2SB was also the most sensitive model Nikon has ever produced.

1971

1973

1976

1977

1977

1977

1977

1977

1978

1979

1980

1982

1983

1983

F2 w/DP-1

F2 w/DP-2

F2 w/DP-3

F2 w/DP-11

F2 w/DP-12

EL-2

FT-3

FM

FE

EM

Nikon F3

FM2

FE2

FA (60/40 + Matrix)

EV1-17

EV1-17

-EV2-17

EV1-17

-EV2-17

EV1-18

EV3-17

EV1-18

EV1-18

EV2-18

EV1-18

EV1-18

EV1-18

EV1-20

EV1-16-1/3

ASA 6-6400

ASA 12-6400

ASA 12-6400

ASA 6-6400

ASA 12-6400

ASA 12-3200

ASA 12-1600

ASA 12-3200

ASA 12-4000

ASA 25-1600

ASA 12-6400

ASA 12-6400

ASA 12-4000

ASA 12-4000

* Best performing camera model highlighted in Green; worst specifications in Red followed by below-average performer colored in orange column. F2SB and F2AS both have metering range from EV MINUS -2 to EV17. Referring web projects for specific SLRs mentioned above: | EL-2 | FT-3 | FM | FE | EM | Nikon F3 | FM2(n) | FE-2 | Nikon FA |

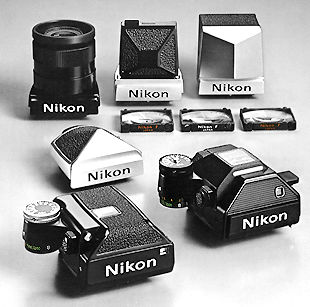

The F2AS, although it does not make sense to change its very much sought after DP-12 finder, has a basic F2 body and therefore will still accept the other five optional alternative non-metered finders (DE-1, DE-1/T, Waist level, 6X magnification and Speed Finder) with 4 'scaled down' metered versions (DP-1, DP-2, DP-3 and DP-11) which has also made the F2 has the most extensive in this specific options in any 35mm SLR system. The interchangeable focusing screens is equally impressive in numbers and varieties to suit any demanding photographic needs.

F2AS Titan Finder.jpg
IF you are looking for a camera for casual photography while also aim preserving your initial investment, the F2AS could well be a very good model to look at. It is quite pricey even in used condition, if your primary objective is just to acquire a hard to crack mechanical camera for frequent rough shooting, buy a Nikon FM2(n) would, most of the time, provide you a similar objective of safe, trouble free usage.

Why ? If only monies can inspire you to think - why would I "risk" a mint condition USD700-00 F2AS where I can still get the job done with a USD200-00 used FM2 ? Unless yours is a war torn condition F2AS, then just don't bother what I have said earlier and go ahead, smash it just like how Bon Jovi or the laste Jimmy Hendrx treat his Guitars, guess it will still survive your treatment...

May be due to an overall improvement in the quality of living, F2AS has gradually evolved into a collector item status from a working professional grade SLR camera. While I think most would agree it is a camera that is in a different league than any of those FM series models, but as a friend of mine correctly interpret it - "... you don't need to enroll a 1954 Ferrari Vintage sports car for motor-cross just to prove how good it can handle the terrain..".

That again boils down to the fact and decision of whether to invest into a camera which offers simplicity of use, easy maintenance and good current product support such as any of those smaller Nikon FM series bodies or a camera with a distinctively rich and colorful background behind and a likely possible appreciation in collector value over time, all packs within a ultra-rugged, highly modular body construction Nikon F2AS.

Nikon system (download a PDF File (700k) of Nikon system as at Nikon f2AS)

Perhaps only drawback is, lack of current product support by its manufacturers and most of the system accessories designed around the body has to be source around in the secondary used markets. Update (a little personal): I have added another F2AS in my F2 collection - Errr......before the rich Japanese and the Taiwanese starts sweeping the "floor" clean in the used markets.

BEFORE skipping this page to next section, please be reminded the Instruction Manual for DP-12 Finder in HTML is also available in this site. Please don't mail me for any PDF version.
