Additional Information on Zuiko Lenses
MF Zuiko tele-zoom lense 50-250mm f/5.0


File Size: 44k HTML File Loading ....

Zuiko AUTO-Zoom 50-250mm f/5.0 MACRO

Purely based on specification, this lense is seemed like an update for the Zuiko AUTO zoom 85-250mm f/5.0. However, it has a different form, dimension, optical design and even may present an entirely different lense handling experience during operation - primary because it has an one-touch zoom design where the other one uses a dual rings design for independent zoom/focusing control.

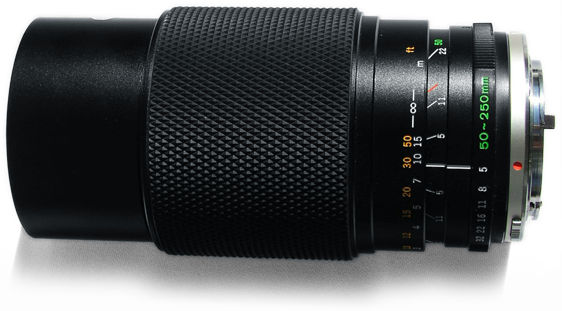

<<< --- Credit: Some of these very nice images presented here was specially taken by Mr. Jone Quinn <yahuhai@yahoo.com> for this OM project. Jone Quinn runs a popular Ebay Store and he specializes in selling OM photo gears. Image copyright © 2003 All rights reserved. Please respect the visual property of the contributing photographer.
It is hard to conclude which lense/design is better as it is purely a matter of personal preference. However, one touch zoom does has its strength as it is more responsive to fast changing action with its ability to control zoom and focusing action simultaneously; besides, it can be designed more compact with lesser helical/revolving components within and be able to accommodate a wider zoom range within a single lense. As in this case, for an example, this lense measures at a length of 140mm while the 85-250mm counterpart has a length of 196mm despite the latter has a smaller zoom ratio. Further, this design also trims its overall weight down to just 760g (31.9 oz) as compared to 905g (31.9 oz) found on the previous two touch zoom.

With an powerful zoom ratio of 5X and probably it is the widest ratio of such lens-type you can find within the Zuiko lense system. The versatility factor alone offers by this remarkable Zuiko zoom lense somehow provides a better justification to see this lense commands a better premium than the predecessor in the used market. (A mint condition unit may fetch around USD485.00-USD550.00* *Source: MacBroom's Camera Blue Book.).

<<< -- Credit: Image courtesy of Mr MCLau®. Image Copyright © 2003. All rights reserved. Please respect the visual property of the contributing photographer.

Well, to be honest, by simply summarizing this lense shine in zoom range and overall compactness does little justice to all those optical engineers at Olympus. Firstly, this lense was Olympus answer to prevailing zoom lense technology at the time where one touch zoom was beginning to take shape as the mainstream design. One of the less pronouncing feature was its close focus ability. This zoom can close focus to about 1.8m (5.9 ft) but as many other popular zoom that surfaced during that period, it also incorporates an ingenious MACRO mode where when the lens is set at 250mm, it can actually surpass its minimum focusing distance to a shorter distance at 1.53m, at this distance, an amazing feat in the design of this lense is, a maximum reproduction ratio of 1:5 is reached ! Although the lense literature never indicates whether a close range optical correction system was incorporated but still, its macrofocus feature has expanded its working ability and enhances its value further as an true macro-tele-zoom. Further, a built-in retractable lens hood is provided for easy usage, quite an unusual feature for this lense type. Well, I am not sure when was the Zuiko AUTO zoom 85-250mm f/5.0 being substituted officially by this version (perhaps, it never been on such ground but simply based on normal discontinuation process due to lesser demand with introduction of this one-touch Zuiko zoom) but based on an OM system brouchure published in 1992, the Zuiko lense chart section has only this lense remained in the lineup. Note: Olympus warns the depth of field scales and infrared index canot be used as reference once you are in macrofocus mode.

The lense is able to stop down to a minimum aperture of f/32 which is effectively useful in many situations, in particular when operating at its Macro setting for extended depth of field control. Further, one touch zoom offers a better visual reference in relation to depth of field scales and this lense has three settings, f/22, f/11 and f/5.0 along with an red-coloured infrared index. (hidden in this picture.

<<< --- Credit: Image courtesy of Mr. Jone Quinn <yahuhai@yahoo.com>. Image copyright © 2003. All rights reserved.

Technical Specification for Zuiko AUTO-Zoom 50-250mm f/5.0 MACRO

Lense Type:
One touch tele-zoom design
Focal length: 50-250mm
Maximum aperture: 1:5.0

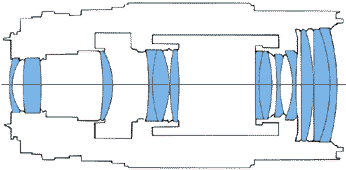

Lens construction: 13 elements in 10 groups
Picture angle: 47° (f=50mm) - 10°(f=250mm)
Diaphragm:
Automatic, full aperture metering
Aperture scale: f/5.0~ f/32

Distance scale: Graduated in meters and feet from 1.8m (5.9 ft) to infinity (oo)
Focusing: Rotating helicoid system, by turning the focusing ring
Zooming: push and pull control via the zooming/focusing ring
Filter attachment size / Filter(s): 55mm, Screw-in type

Lens hood: Built-in retractable type
Minimum photographic range: 103cm x 69cm@50mm; 22cm x 14cm@250mm
Maximum reproduction ratio: 1:5 @ its closest focusing distance at 1.53m at 250mm setting
Note: Olympus warns the depth of field scales and infrared index canot be used as reference once you are in macrofocus mode.
Usable Teleconverter(s):
2X-A
Length: 140mm
Maximum diameter: 72mm
Weight:
760g (31.9 oz)
Recommended Focusing Screens: 2-4**, 2-13**,1-1*, 1-2*, 1-3*, 1-4N**, 1-5#, 1-6#, 1-10*, 1-13* and 1-14*. * Compatible. #Can be used. They will provide for accurate and easy focusing but meter built into the OM-1 and OM-2 (on MANUAL) will not indicate correct light readings. With the OM-2 on AUTO, correct exposures are made on the film, but the meter needle does not give correct light readings.** Compatible, only with applicable OM bodies introduced at later stage.
