Additional information on Olympus Zuiko Lenses
Olympus Super-Telephoto lenses - Zuiko AUTO-T 250mm f/2.0 ED-IF

HTML Page (52k) Loading ...

The birth of OM system was a phenomenon during the seventies. In fact, there was a stage both OM flagship models, OM-1(n) and OM-2(n) have catapulted Olympus as easily one of the most influential player in 35mm SLR photography. They have constantly making waves in introducing trend setting camera design 30 years ago and many revolutionary technological breakthroughs they pioneered are still regarded as a standard in the industry today. They are the first in introducing compact body design, TTL flash, spot/multi-spots metering, highlight/shadow exposure control and FP sync etc. Looking back to how the OM system has evolved to present state, the period between 1979 and early '80 was rather a difficult period for Olympus as competitions were keen and technological advantage of the OM system has been slowly eroding and caught up by others. Olympus, was strangely been very quiet during this stage, and has only a entry level OM-10 SLR to bridge between the professional models.

Fan-Tailed Warbler.jpg (48k) Loading now ...

A Fan-tailed Warbler, one out of two Grand Prix winning shot by Japanese photographer, Mr. Minoru Honma
®.Image Copyright © 2003. All rights reserved.
<<< -- Credit: Image was scanned from OM's VisionAge issue 17, 03/1992's invitation to Olympus International Photo Contest.

At the time, there were quite a number of events of significant interest occurred during this period of time, the Nikon launched their third professional flagship model, Nikon F3; Canon replied with a counter-effort with a Canon New F-1, the Minolta debuted an immensely popular MPS X-700 SLR model, the relatively quiet Contax also announced their second professional model, Contax RTS II and even the conservative Asahi Pentax has introduced a series of exciting bodies, spearheaded by their first attempt into the professional users market with a seemingly OM-2n-concept replica, Pentax LX and so on. The early '80 was easily regarded as one of the most eventful period in 35mm SLR photography. Amidst all these happenings, I think actually all eyes were on Olympus as almost you can smell the little oriental giant will have something in their sleeves to answer with another big bang - the photo community was not entirely disappointed, after a decade of waiting, Olympus eventually announced the availability of the next generation SLR models, OM-3 and OM-4 in 1983. Although we are confined to discuss on topics relates to Zuiko lenses, the introduction of OM3/OM4, which followed by another update, OM-2SP in 1984 have significant relationship with development of Zuiko lenses.

array of lenses.jpg (43k) Loading ....
The changing market place during this period has actually lead Olympus to update the Zuiko lense system to supplement all these new OM bodies to take on competitions as well. The fruitful Zuiko lense updating program saw a series of new exciting Zuiko lenses being introduced to fulfill demanding needs of photographers or as to ensure the system is complete enough to lure in more users switching to OM system.

<<< -- Credit: Image was scanned from OM's VisionAge issue 3, 1985 .

The OM lense update program may have involved a carefully selection of lenses to be introduced with viability and functionality for chosen focal length, lense types and performance to serve serious OM users in mind. With an array of new Zuiko optics, the most eyes-catching inclusions was three ultra-fast speed tele-lenses fittingly patched one of the weakest link found in Zuiko lense system, the Zuiko AUTO-T 180mm f/2.0 ED-IF, Zuiko AUTO-T 250mm f/2.0 ED-IF and Zuiko AUTO-T 350mm f/2.8 ED-IF. All three lenses are easily rank brightest in their class and have extended the OM system capabilities for photographers to consider to be used for traditional strongholds of others such as the likes of Canon and Nikon, in particular for sports, nature and wildlife photography.

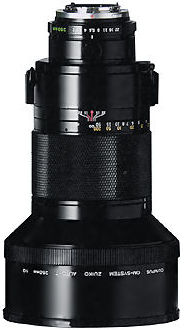

Zuiko AUTO-T 250mm f/2.0 ED-IF

This Zuiko lense carries a distinctive features as being fastest in this focal length. Uniform performance is maintained throughout its entire focusing range and across all apertures by a unique internal focusing ("IF") system, multilayers coating and special optical glasses to deliver superb resolution.

<<< -- Credit: Image was scanned from a 1985's OM Sales Catalogue.

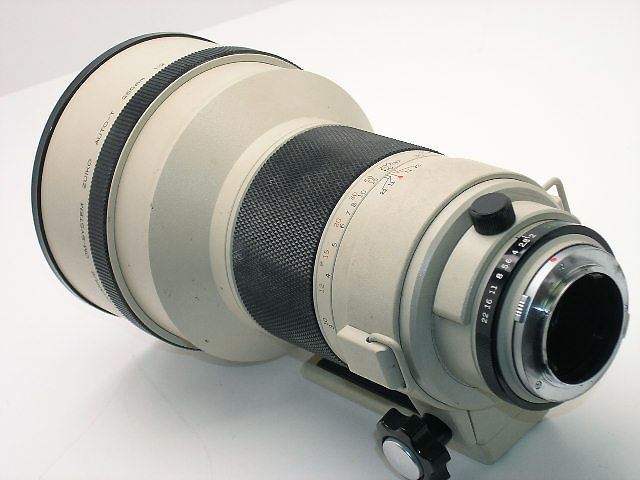

OM250mmf2EDIFadorama3SM.JPG OM250mmf2EDIFadorama1SM.JPG OMZuiko250mmf2AdorSML.JPG OM250mmf2EDIFadorama2SM.JPG
Credit: Images courtesy of Adorama® Inc. "Ebay - Mathew Duren" <ebay@adorama> Webisite URL:, who also operates a popular Ebay Store. All images appeared herein are Copyright © 2005. All rights reserved. Please respect the visual property of the contributing photographer.

Olympus Super fast telephoto lens 250mm f/2.0 ED IF rear lens mount
Credit: Image(s) courtesy of some nice folks from DigifanCN®. The group also operates their own active, popular EBAY STORE, trading for many major camera brands and collectibles. Image Copyright © 2008. All rights reserved. Please respect the visual property of the contributing photographer.

First of all, as I have pointed out Olympus was indeed very smart in determine the right focal length for this lense update. Instead of choosing a popular focal length 300mm as with others, they have adopted an all "new" focal length of 250mm and gave it a speed boost at a large aperture of f/2.0. This has made the OM the only 35mm SLR photographic system that offers such an "odd" focal length for super telephoto lenses. Come to think of it, it was a smart move, first - unless there are followers, Olympus can still can as a pioneer, next, if there isn't, OM system still owns the fastest in this class; thirdly, I think it was also a commercial decision because Olympus doesn't want OM users to compare prices with rivaling brands as there are none of such equivalent available on the market thus far. With a retail price at USD4,300-00* a unit, so if you are using a super fast tele-lense such as the awesome MF Nikkor 300mm f/2.0s ED-IF super-telephoto lense which has a ridiculous list price of USD13,000-00* to compare the Zuiko with 50mm shorter in focal length, you may find it is very cheap ! On the other hand, if you are using prices that range between USD3,000.00 - USD3,500.00* a unit of either a Nikkor 300mm f/2.8s ED-IF or Canon's discontinued FDn 300mm f/2.8L to compare this Zuiko, the Xtra stop in lense speed makes the additional cost very justify for such investment (not to mention how much a Leica's 300mm f/2.8 Tele-Apotessar AE will cost you - it comes with a mind boggling list price of USD18,250-00* a unit !) *Source: MacBroom's Camera Blue Book.

Well, that was just a personal assumption. But I do think the 50mm-shorter for an extra-f-stop-speed-gain formula is very appealing to me. The focal length fits mid between two of the most popular focal length in long telephoto lenses, it enables photographers to open up plenty of photographic opportunities, handheld or tripod mount where optically, Olympus ensures the lense packs some of the best in optical technologies to deliver the best in resolution to match your creativity. The generous use of 4x extra-low dispersion glass elements, for an instance, has ensure chromatic aberrations be kept to minimal level while delivering sharp resolution and extremely high contrast across its entire range of focusing.
The multilayers lens coating provides faithful, outstanding colour rendition with minimal flare even when use in unfavourable shooting conditions.

Within the lense, the focusing mechanism is using an ingenious internal focusing system to provide silky smooth operation with the extra benefit of nonphysical lense extension during focusing/shooting. The lense also features close range optical correction system in its mechanism to ensure its superlative optical performance be extended well to its minimum focusing distances, this Zuiko optical marvel can close focus down to an impressive 2.2m.

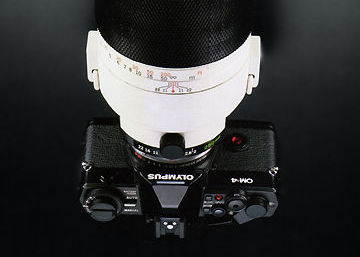

<<< -- Credit: Image was scanned from a OM-4 Sales Catalogue, 03/1985 publication.

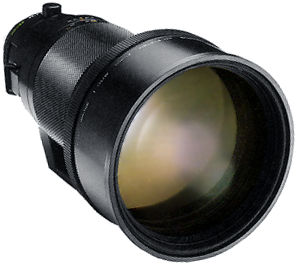

The early version of this Zuiko lense was supplied in black- a good stealth colour for wildlife and news photography. Probably Canon's logical explanation on heat-affects-fluorite theory sold well to OM photographers and all subsequent ones have been all finished in a distinctively striking/eye-catching grayish-white colour instead - very similar to the Canon FDn and /or EF lense outfit. Note: ED has a better heat resistance properties than artificial fluorite optical glass.

<<< -- Credit: Both images of this Zuiko lense were scanned from a 1985's OM Sales Catalogue.

Olympus Super fast telephoto lens 250mm f/2.0 ED IF
Credit: Image(s) courtesy of some nice folks from DigifanCN®. The group also operates their own active, popular EBAY STORE, trading for many major camera brands and collectibles. Image Copyright © 2008. All rights reserved. Please respect the visual property of the contributing photographer.

I think Olympus has put up a serious effort in the design of these few hallmark lenses of theirs. Other than a great deal of effort was put in the optical design; mechanically this lense was equally first class with its supreme built quality. Lense handling is excellent, benefits greatly from adoption of an IF design for smooth focusing action, an extra large focusing grip with slip-free hard rubberized grip design to ensure photographers to have a firm and positive focusing operation. All relevant data essential for picture taking can be easily check with a glance. For photography that may need minimal disturbance of movement, the lense is equipped with a rotable tripod collar to facilitate quick change of shooting format horizontal or vertically. The tripod collar is essential to serve hosting the heavy lense with a good weight distribution instead of using the fragile tripod socket on the camera base to host such a lense. A retractable lens hood also provided to cut light that may strike the front element to avoid internal reflection that may cause flares. Lastly, a slight drawback in the design was, there is no optical filter be used to protect the large, expensive front ED glass. The filter system is a rear slip-in type which uses an nonstandard 46mm size. Overall, this is a great lense, comparable to the best in its class, if not better. Lastly, with a compatible Tele-converter(s): 1.4X-A this lens may be transformed into a 350mm f/2.8 super -telephoto lense !

<<< --- Credit: ALL images of this lense were specially taken by Mr. Jone Quinn <> for this OM project. Jone Quinn runs a popular Ebay Store and he specializes in selling OM photo gears. Image copyright © 2003 All rights reserved. Please respect the visual property of the contributing photographer.


NOTE: In many ways, spot meter of an OM cameras such as OM2SP, OM3(Ti), OM4(Ti) etc. reads through the lense, covering roughly the area enclosed by the microprism of the standard focusing screen Naturally, when the lens angle changes, the angle read by the Multi Spot meter also changes. You can take advantage of this when you use a zoom or telephoto lens to get precise coverage of the area you want.



Current version: Zuiko AUTO-T 250mm f/2.0 ED-IF
Optical Construction
: 12 elements in 9 groups

Diaphragm: Automatic
Angles of view: Diagonal: 10°
Distance scales: 2.2m (7' 2") to infinity (OO)
Focusing: Internal focusing/rotating cam design
Minimum and Maximum aperture: f/22 ~ f/2.0
Minimum photographic range: 25cm x 17cm
Lens Hood: Built-in retractable design,
extend or retract the lens hood by rotating it.

Maximum Diameter: 142mm
Length without lens hood extension: 246mm
Weight: 3,900g (137.6 oz)
Usable Tele-converter(s):

Filter attachment size/Filters: 46mm REAR slip-in type
Tripod Mount:
A self-contained tripod mount allows free rotation. Tighten the tripod screw firmly into the tapped hole of the tripod mount. It can be locked in a desired position (horizontal. vertical, etc.) with the clamping knob. There are four holes on the tripod mount. A carrying strap lug is provided at the side of the lense for easy carrying and a leatherette soft lense pouch is supplied as standard accessory.

Recommended Focusing Screens: 1-1, 1-4, 1-6. 1-7. 1-10, 1-13 and 1-14. The 1-6 or 1-7 (microprism-clear field type) offers a brighter image. but the meter built into the OM-1 and OM-2 (on MANUAL) does not give correct light readings. With the OM-2 on AUTO, correct exposures are made on the film, but the meter needle does not give correct light readings. ## More info on "Picture Angle" or make use of the Glossary section in PIM site..Note: Olympus warns this lense is NOT designed to operate in Program AE mode with OM-2SP or OM-PC

| previous | NEXT | 1/2 You cannot feature this lense without relating it to another Zuiko classic super telephoto lense, Zuiko AUTO-T 350mm f/2.8 ED-IF
