FORWARD Nikon Photo Secretary for F5 (AC-1 ME) is easy to use, but requires familiarity with basic Macintosh operations and functions, including: handling of documents, folders, windows, menus, dialog boxes, the clipboard, and general mouse and keyboard techniques. If you are not familiar with these operations, please refer to your "Macintosh User's Manual."

Nikon Photo Secretary for F5 is programmed to allow you to:

* Control F5 camera connected to your personal computer
* Design Customized Settings
* Transfer shooting data directly from the F5 camera to your computer
* Edit shooting data transferred from F5 to computer, and link it to image data loaded from photo CD
* Take advantage of an extensive online help system


* Macintosh@ is a U.S. registered trademark of APPLE COMPUTER Inc.

NOTE:- Read MORE info on its major Functions:on the earlier section before proceed

Configuration

* Eight Floppy Disks with Installer
* Instruction Manual
* License Agreement
* Registration Card
* Nikon Personal Computer Connecting Cord MC-34 (for Macintosh)

System Requirements for Installing Nikon Photo Secretary Minimum Computer System Requirements To use Photo Secretary, your computer system must be equipped with the following peripheral equipment and software:

Mac OS 7.0-7.6, and the minimum hardware requirements for operating Mac OS 7.0-7.6/8.0
680x0 Macintosh: 16 Megabytes of memory (32MB or more recommended for optimum performance)
Power Macintosh: 24 Megabytes of memory (40MB or more recommended for optimum performance)

Floppy disk drive (for installation) Available external serial port (Printer Port/Modem Port) Approximately 16MB free disk space for program files Macintosh@ supported printer CD-ROM drive * Not supported with TWAIN device.

/PScable.jpg PSboxinstaller.jpg
To control camera operations and transfer shooting data directly from the camera

Nikon F5 Camera
Nikon Personal Computer Connecting Cord MC-34 (for Macintosh)

Caution: Never disassemble or modify the MC-34. Keep the MC-34 away from water (do not wash), and do not touch with wet hands.

Installing Nikon Photo Secretary
To Set Up Photo Secretary for your Computer 1. Insert Setup Disk I in the floppy disk drive. 2. Double-click on "Disk 1 " icon 3. Double-click on "Installer" Icon on the "Disk 1 " window, 4. Click on "Install" in the "Installer" window, then follow the instructions on your screen.

Nikon Photo Secretary for F5 can be operated in either of two modes, Online or Off line.

Online Mode:
In Online mode, you can control or operate a connected F5 camera through Photo Secretary. With an F5 camera connected to your computer using the MC-34, sending any signal from the computer to the F5 automatically switches your F5 to Online mode, causing the computer mark to appear in the rear LCD panel of the camera. With the F5 in Online mode, you will be able to operate the shutter release button, film rewind function, focus mode selector, AE-i button and AF start button only. Other camera modes and functions can be operated through the Photo Secretary software. To cancel Online mode, quit Photo Secretary or turn off the camera power.

Off line Mode
You can also use Photo Secretary in Off line mode without connecting the camera to your computer. In Off line mode, you can select Custom Setting options, create programs for programmed shootings, edit shooting data, image data and files, and use the "Help" function. You cannot, however, control or operate a connected F5 camera in Off line mode. Switching the camera from Online mode to Off line mode automatically resets all settings except Custom Setting and multiple exposure,

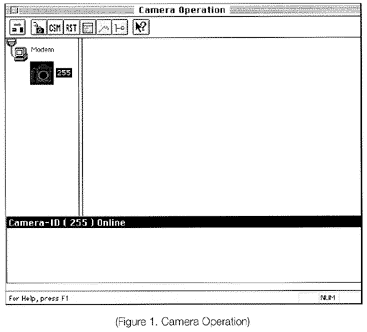

Starting Nikon Photo Secretary Contents of Photo Secretary

PSimage1.gif   Nikon Photo Secretary for F5 contains the following modules:

* Camera Operation - Nikon Photo Secretary for F5 Help
* Camera ID Setup - Photo Finder
* Film Manager - Readme File

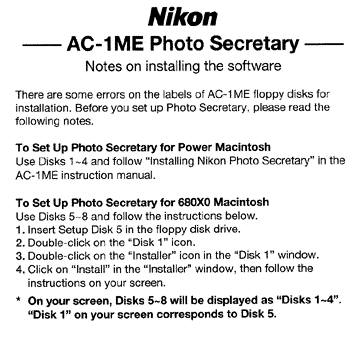

PERSONAL NOTE: The Installers Disk 1 to Disk 8 are sized together at approx. 7.8MB and I cannot afford to put them on the network for free download as it might eats up plenty of plenty from my limited line. They are in Apple's Mac format and unless you are in a life or death situation (or want to save some hard-earned bucks, mail me or use the Message Board to make the request. I don't have a PC version but if anyone of you do wish to share, mail them to me and see if I can convert them into a PC version.

All software is installed in a single location on your computer, but each individual module can be started and used individually. To launch Photo Secretary, open the "Nikon Photo Secretary for F5" folder, then click on the icon for the module you want to open. Opening a Photo Secretary module will reveal the main window for that module. When opening the Camera Operation or Film Manager module, you will see the Opening window first.) To quit Nikon Photo Secretary, click on "File" - "Quit" in the main window (see Figures I and 2).

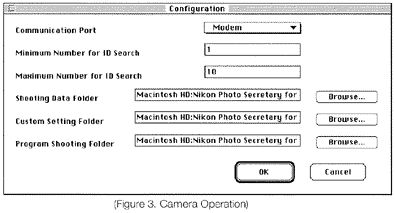

Selecting a Serial Port Select the serial port to which you will connect the MC-34. The serial port can be set when installing Photo Secretary on your computer. 1. Open Photo Secretary's "Camera Operation" or "Film Manager" module. 2. Open the "Tool" menu and select the "Configuration" 3. Select the port to which you intend to connect the MC-34. Photo Secretary supports Printer and Modem ports. Select a free serial port supported by your computer. Figures 3 and 4 show the 'Configuration" dialog boxes for "Camera Operation" and "Film Manager".

PSimage3.gif PSimage4.gif

Photo Secretary Functions

All functions can be accessed via pull-down menus. Most functions can also be accessed via the Tool Bar. The Menu Bar and menu options will change to match the active operation, Unavailable functions will appear "dimmed" or not at all. Most menu commands, options and functions can be found with the "Help" function. (Figure 5)

Tool Bar Icons: Help (appears in the main window of all Photo Secretary modules)

Tool Bar Icons in "Camera Operation" main window





Online

Custom Reset

Location Check

Remote






Program

Custom

Metering Status



Tool Bar Icons in "Film Manager" main window









New

Find

Copy

Thumbnail & Text

Paste Data

Text

Edit Film

List









Photo Finder

Load Shooting

Open

Print

Save

Print Preview

Paste Picture

Edit Frame

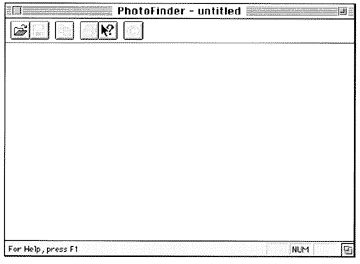

Tool Bar Icons in "Photo Finder" main window

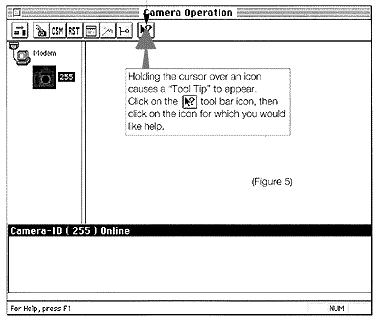

Using "Help" Functions For information on the currently active function/mode, you can click on the "Help" menu, as described below.

Open

Print

Save

Copyright

Copy



Nikon Photo Secretary for F5 Help Open "Help" for basic operations. Help Topics: * Contents: Refer to the menu contents relevant to your desired information. * Search: Enables you to search the "Help" topics for specific words and phrases. About... Display information, version number and copyright.

Connecting to Camera
- Personal Computer Connecting Cord MC-34 for F5 When connecting the Nikon F5 camera to your computer, use only Nikon Personal Computer Connecting Cord MC-34. A data link cannot be established with other connecting cords.

Connecting

1. Switch off both the camera and computer.
2. Connect the MC-34 to the camera's 1 0-pin remote terminal. Insert the MC-34's plug into the terminal with the "A" symbol pointing up, then turn the lock ring as far as it goes. (See Illustration. A)
3. Connect the MC-34 to the computer's external serial port. Match the shape of the MC-34 connector with the computer terminal, then push it in.
4. After starting the computer, turn on the camera power.

Disconnecting


1. Turn off the camera power.
2. Remove the MC-34 connector from the computer.
3. Remove the MC-34's plug from the camera body. Unscrew the lock ring, then unplug the MC-34. (See illus. B)

Setting Camera ID
Designate camera ID so that shooting data of several cameras can be distinguished. With two or more cameras connected to one computer, be sure to create a new folder for each camera to store shooting data or set the camera ID for each camera to avoid replacing old data with new data. To set the camera ID, click on "Program"-"Nikon Photo Secretary" from the Start Menu, then select "Setting Camera ID" With only one camera body connected to your computer, you do not need to set the camera ID.

CAMERA OPERATION

Nikon Photo Secretary allows you to operate F5 camera functions, change the camera's settings, perform program shootings, and more. To open the Camera Operation module, open the "Nikon Photo Secretary for FY folder, then double-click on the icon for the "Camera Operation" module.

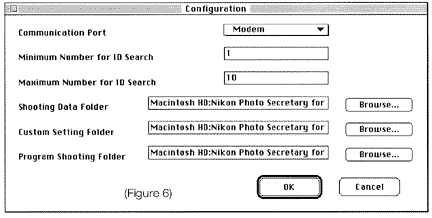

Configuration
Configuration settings for Camera Operation can be set in the "Corifigeration" dialog box. This dialog box allows you to set the communication port, minimum and maximum numbers for an ID search, and data saving folders - without turning the camera on. 1. Open Photo Secretary's Camera Operation module. Open the "Tool" menu and select the "Configuration" (The "Configuration" dialog box is shown in Figure 6.) 2. After selecting your desired settings, click on "OK" to save the setting.

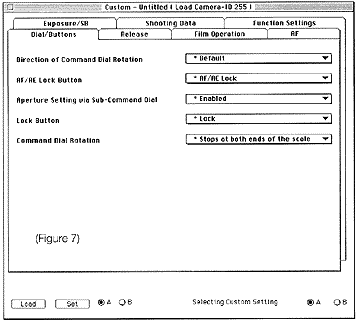

Custom Functions T
he "Custom Functions" dialog box allows you to set camera function settings, complementing the F5's Custom Setting features. The F5 camera offers EEP-ROM memo storage in two areas to memorize custom settings - one in Custom Set Memory A, one in Custom Set Memory B. Using the computer, you can select from the area (A or B) to which you will load camera settings or store the new custom settings. Photo Secretary automatically selects the Custom Set Memory designated in camera's Custom Setting feature #0.

The "Custom Functions" dialog box allows you to:
1) Set custom functions.
2) Select the operating memory (select memory where data has been uploaded or data changes stored),
3) Select custom set memory (select memory for storing setting changes made with camera's Custom Setting feature #0).


Setting Custom Functions

1. Using the MC-34, connect the camera body and computer.
2. Turn or the camera power. (When setting custom functions only, you do not need to turn on the camera power.)
3. From Camera Operation open the "Tool" menu and select PSimage77.gif "Custom Functions" to access the "Custom Functions" PSimage77.gif dialog box shown in Figure 7.
4. Select the Custom Set Memory you wish to confirm or modify. Check "A" or "B" at the right of "Set" to indicate the memory from which you wish to load data.
5. Click on "Load" to load and confirm the settings of your selected Custom Set Memory.
6. Select the Custom Set Memory to which you will send the new custom settings. Check "A" or "B" at the right of "Set" to select the memory where you wish to store data.
7. After selecting your desired custom functions/modes, click on "Set" to set the new custom functions for the camera. (Default settings are indicated with asterisk.)

To change the settings in camera's Custom Setting feature #0, check "A" or "B" at the right of "Selecting Custom Setting". The "Custom Functions" dialog box offers menu plates for "Dial/Buttons", "Release", "Film Operation", "AF", "Exposure/SB", "Shooting Data" and "Function Settings". For details on each of these functions/modes, see "Help" menu. (i.e. Self-Timer LED On When Shutter Release) At the default setting, self-timer LED does not light up when the shutter is released. You can change this so that it lights up during exposure.

Note: a) When you have set the custom option(s) on your camera, appears In camera's rear LCD panel.
b) To confirm, change or memorize the camera's custom settings on the computer, you must turn the camera on.
c) "Release Timing for Second Camera" enables you to set the custom function for synchronized shutter release on two cameras - when used with Nikon Connecting Cord MC-23. Set the same shutter speed advance mode for both cameras. When selecting "Alternative", set the shutter speed faster than 1/250 sec. (
Connecting F90X and F5 cameras via the MG-23 will limit the F5 functions available.)
d) "Time delay for auto meter-swil in Photo Secretary's "Custom Functions" dialog box is set at '8 sec." as the default setting, although the meter on some F5 models remains on approximately 16 sec. at the default setting. With these F5 models, selecting the "Time delay for auto meter-swil default setting (8 sec.) in Photo Secretary's "Custom Functions" dialog box causes to appear in the camera's LCD panel.
e) After changing the custom setting, turn the camera power off, then on again.

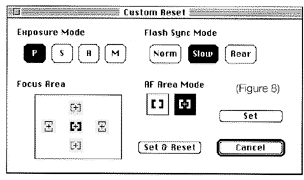

Custom Reset
The "Custom Reset" dialog box lets you change the Initial setting of the camera's Two-Button Reset function. Exposure Mode, Flash Sync Mode, Focus Area and AF Area Mode settings can be stored in the camera as Custom Reset data. This data can be retrieved by keeping the camera's (MD and CD buttons pressed for longer than two seconds.

1. Using the MC-34, connect the camera body and computer.
2. Turn on the camera power.
3. From Camera Operation, open the "Tool" menu and select the "Custom Reset". The "Custom Reset" dialog box appears as in Figure 8. (Current setting appears in the display.)
4. Select your desired Custom Reset settings, then click on "Set" or "Set & Reset" to save the settings. Click on "Set" to send the new settings to the F5 camera and change the Two PSimage79.gif Button Reset setting on the camera. Click on "Set & Reset" to send new settings to the F5 camera, change old settings and perform Two-Button Reset on the camera. For details on specific functions, see "Help" menu.

Note: a) Functions restricted in the "Custom Functions" dialog box cannot be selected.
b) Functions selected in the "Custom Reset" dialog box can be restricted, but such restricted functions cannot be reset using the Two-Button Reset function.
c) The selected focus area will be reset in any case.
d) Photo Secretary's Custom Reset function allows you to reset all settings made on the F5 camera. (Custom settings, which can be selected only with Photo Secretary, cannot be reset with this function.)

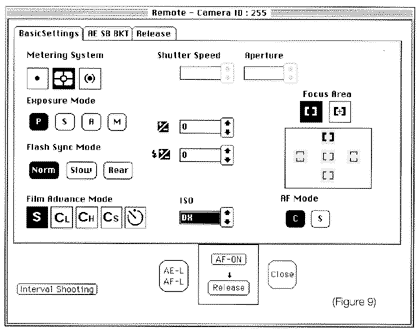

Remote Operation
Camera functions can be set and controlled using the Photo Secretary "Remote" dialog box. The "Remote" dialog box offers menu plates named "Basic Settings" for normal shooting, and "BKT" and "Release" for Photo Technique Selection. Photo Secretary's Remote Operation function cannot be used with Nikon Multi Control Back MF-28's "Photo Technique Selection". Cancel "Photo Technique Selection" before using the Remote Operation function.

1. Connect the camera body and computer using the MC-34.
2. Turn on the camera power. The camera icon and ID number appear in the display, indicating that the camera is in Online mode. (If the icon and ID number do not appear In the display, open the "File" menu and select the "Online".)
3. From Camera Operation, open the "Tool" menu and select the "Remote" to access the "Remote" dialog box shown in Figure 9. The first display shows the settings of the previous remote operation.
4. After selecting your desired functions and mode, click on "Release" on the dialog box or the shutter release button on the camera to perform remote operation, (You cannot select functions indicated as restricted in the "Custom Functions" dialog box.) To start the Interval Timer, click on "Start" on the dialog box, To stop operation, click on "Cancel".

With the "Remote" dialog box appearing, the camera's current settings and status are displayed on the Camera Operation main window. When all shots have been taken, all selected functions except Multiple Exposure remain on the computer until a new selection is made. ' For details on specific functions, see "Help" menu.

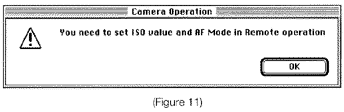

Notes for Basic Remote Operation a) With "Remote" function active, the computer communicates with the camera to display current camera settings, and the shutter release button is held in the "I[get[y pressed" position. (Camera remains in Online mode as long as remote function is active.) b) The camera does not respond when you double-click on "Release" on the computer.

About Shutter Speed: The shutter speed "Time" can only be selected when the "Bulb or Time selection" is set at "Time". To expose at shutter speed "Time", click on "Release" to open the "Time Release" dialog box (Figure 10), the click on "End" to close the shutter. (Bulb or Time cannot be set when using the self-timer, Self-timer cannot be set when Bulb or Time is already selected.) About Aperture The aperture value In use depends on the attached lens. The lens aperture setting takes priority over settings made on Photo Secretary software. The "Remote" dialog box displays lens settings and status. About Film Advance Mode a) To stop self timer operation, change the film advance mode. b) Depending on your computer's processing speed, CH and CIL film advance speeds may slow and the intervals between shots may be uneven. About AF Mode With the focus mode selector set at M, neither AF-C or AF-S mode can be selected. About Flash Sync Mode With an SB-24, SB-25 or SB-26 attached to the camera, the Flash Sync Mode selected on the Speedlight has priority over the Photo Secretary setting. About AE-L Click on "AE-L/AF-L" to lock auto exposure and autofocus. To cancel AF and AF lock, click on AE-L/AF-L" or "Release" on the computer. About AF-ON/Release With film advance mode set at Continuous Shooting, autofocus function remains active until you take the first exposure by clicking on "AF-ON". (AF function is also activated after you take the first exposure.)

Notes for Photo Technique Selection
About Auto Exposure Bracketing/Flash Exposure Bracketing

a) When the bracketing direction is set at "+/-" after setting an oven number of shots, one shot is automatically added to the selected number of shots.
b) You cannot set the number of shots at an even number when the bracketing direction is set at "+/-".
c) During remote operator, the shooting order does not follow the sequence set in the "Custom Functions" dialog box. When the shooting direction "0 - +" is selected, the center value is shot first, followed by a negative compensation value shot, then a positive compensation value shot.
d) Settings for these functions remain active until the box for Auto Exposure Bracketing/ Flash Exposure Bracketing is deselected.

About Multiple Exposure

a) Multiple Exposure can only be selected when Multiple Exposure is set at "Still on after release". (See the Film Operation menu plate in the "Custom Functions" dialog box, page 19.)
b) To cancel Multiple Exposure, deselect the Multiple Exposure box after making desired number of exposures. The film then advances a frame.
c) Settings for this function remain active until you deselect the Multiple Exposure box.


About Interval Timer a) If the date and time for the start of interval shooting have not been set, Photo Secretary triggers the camera to take the first shot immediately after clicking on "Start". Once the Interval Timer has started, the start date and time cannot be set. b) Interval Timer cannot be set with the shutter speed at "Bulb", but when set at Long Time Exposure function, the Interval Timer function can be used for an interval time 2: Long Time Exposure duration + 2 sec, c) If the camera back opens or the film reaches the end of the roll during operation, Interval Timer operation is canceled

About Long Time Exposure a)Usable only in "Manual" exposure mode at the "Time" shutter speed setting. First open "Custom Functions" dialog box and select "Time" for "Bulb or Time selection". b)If the MC-34 is disconnected from the camera or computer during Long Time Exposure, the camera shutter remains open as long as shutter speed is set at "Time". To close the shutter, depress shutter release button or turn off the camera power. c) Long Time Exposure is deactivated with the press of the shutter release button during operation, Depressing the shutter release buffer) before shooting the exposure activates shutter speed "Time". d) The settings for this function remain active until you deselect the "Long Time Exposure" box.

About Focus-Priority a) Settings for this function remain active until you deselect the Focus-Priority box. Combining Functions Functions can be combined under the following conditions.


Interval Timer
a) Combined with Long Time Exposure function If a Long Time Exposure is set and the interval time is shorter than the Long Time Exposure duration + 2 seconds, Interval Timer will not be set. b) Combined with Auto Exposure Bracketing or Flash Exposure Bracketing The number of shots set for bracketed shooting have priority over those for Interval Timer shooting. When Multi-Control Back MF-28 is attached to the camera body, Photo Technique Selection is set by the Photo Secretary prior to the selection set by the MF-28. When prolonged shutter speed is selected using Auto Exposure Bracketing, the shutter speed in Bracketing does not vary, When flash sync speed is selected in Manual exposure mode at 'W', the shutter speed in Bracketing does not vary.

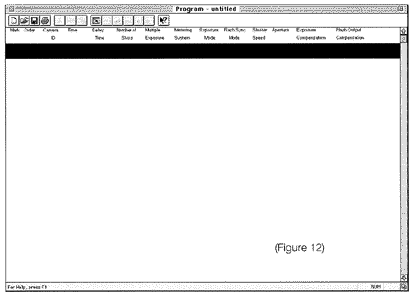

Program Shooting You can select one of the following program modes and functions when you wish to control the camera under special shooting conditions (e.g. for medical or scientific research). Photo Secretary for the F5 lets you set programs containing up to 100 steps. To create a new program, first open the "Tool" menu and select the "Program" from Camera Operation to open the dialog box (see Figure 11). Then click on "OK" to make the Program window appear (as in Figure 12).

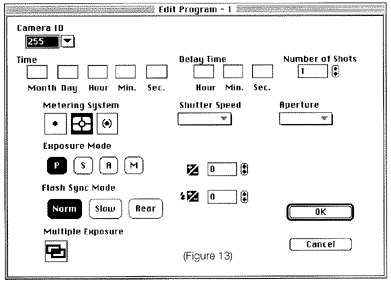

Editing Program

1. To edit program file, click on "Open" from the Program window, then open the desired program file. (To edit or create program files only, you do not need to connect the camera and computer.) Film speed and AF mode cannot be set in Program window, To change these settings, first select the film speed and AF mode in "Remote" dialog box. (See page 23.)
2. Select the programmed sequence you want to edit, then open the Too[" menu and select the "Edit Program" in the Program window or double-click on the desired line. The "Edit Program" dialog box appears (as in Figure 13).


The following items will be displayed in the "Edit Program" dialog box:

Camera ID
Time (Start time)
Delay Time (interval between shooting operations)
Number of Shots
Metering System
Shutter Speed
Aperture
Exposure Mode
Exposure Compensation
Flash Sync mode
Flash Output Level Compensation
Multiple Exposure


3. Select the desired settings, then click on "OK". Updated programmed sequence appears in the Program window. To save a new program as a file, click an "Save" or "Save As" in the Program window. For details on specific functions, see "Help" menu.

Note: a)The number of shooting orders will be set automatically. You cannot change this number. b) "Time" can be set only for the starting programmed sequence (the first programmed sequence or the programmed sequence marked "S"). The date and time set on the computer will be used. To start program shooting immediately after selecting the "Run" in the "Tool" menu, input a just-elapsed time (i,e., two minutes earlier than current time). c) Delay time commences from the start of the previous programmed sequence (previous shot). Delay time cannot be set for the starting programmed sequence (first shot). d) When you set the number of shots to I for multiple exposure shooting in ore programmed sequence, the film will advance after the shooting of the next programmed sequence is complete. e) Shutter speeds X, bulb and Time cannot be selected. 6) With the SB-24, SB-25 or SB-26 attached to the camera, the flash sync mode selected on the Speedlight takes priority over the setting on Photo Secretary, When a different Flash Output Level Compensation value Is set on the Speedlight, the Flash Output Level Compensation is adjusted to accommodate the total Speedlight and Photo Secretary setting values.

Setting Shooting Order Options Shooting Order Options enables you to perform shootings using only your desired programmed sequences, or repeat shooting operations of desired programmed sequences. Select your desired shooting order options in the "Control" dialog box.
1. Select your desired shooting programmed sequence. Open the "Tool" menu and select the "Control" in the Program window to open the "Control" dialog box in Figure 14.


The following shooting order options can be set in the "Control" dialog box:

Mark: Clear Deletes the inputed "Control" code.
S Start shooting operation from the programmed sequence with "S".
R Repeat shooting operations to the programmed sequence with "R".
B Repeat shooting operations from the programmed sequence with "B".
E Stop shooting operation with the programmed sequence with "E".
Times: Set the number of times the selected programmed sequences are to be repeated.

2. After selecting the desired order, click on "OK".

Performing Program Shooting Photo Secretary offers two program shooting modes:
Program shooting using "Run" function. (Activates all programmed sequences.)
Program shooting using "Stop" function. (Activates only the selected programmed sequence.)

Perform program shooting using "Run": Open the "Tool" menu and select "Run" in the Program window. Start control, and shoot according to To shoot, depress the shutter release button, or select "AF Start/Release" in the "Tool" menu. (Shootings will be performed at the dates and times set in the program.) After starting operation, an Indication appears in the window during exposures. Shooting follows the programmed date and time or the delay time. If the date and time for shooting or delay time are not programmed, shooting occurs by selecting "Release" in the "Tool" menu or pressing the shutter release button. ("Release" command and shutter release button have priority over programmed shooting date and time.) Note: a) If the camera does not start shooting within 7.5 sec. after the release command is sent from the computer, Photo Secretary cancels the programmed sequence and starts shooting ir accordance \N& the next programmed sequence. b) If the time for the next programmed sequence comes during the shooting operation, Photo Secretary cancels the coming programmed sequence and continues the current operation.

Execute program shooting using "Step".

Execute only the selected programmed sequence, Select a desired programmed sequence and select "Step" in the "Tool" menu in the Program window, To shoot, depress the shutter release button, or select "AF Start/Release" in the "Tool" menu. (Shootings will be performed at the dates and times set in the program,) After starting operation, an indication appears In the window during exposures. Shooting occurs following the programmed date and time or the delay time. If the shooting date and time or delay time are not programmed, shooting is triggered by selecting "Release" in the "Tool" menu or pressing the shutter release button. ("Release" command and the shutter release button have priority over programmed shooting date and time,) Note: If the camera does not start shooting operation within 7.5 sec. after the release command is sent from the computer, all program operations are canceled To interrupt program shooting To interrupt program shooting, Select "Step" In the "Tool" menu in the Program window. -To resume an interrupted operation from the interrupted programmed sequence, select "Continue" in the "Tool" menu in the Program window. - If you perform an operation other than "Continue" in the Program window after interrupting program shooting, Photo Secretary terminates program shooting.

Note: a) 3D Color Matrix Metering system car be used only with AF-D lenses. If you select Matrix Metering with a non-CPU lens, Photo Secretary automatically switches to Center-Weighted Metering. b) With a non-CPU lens, Programmed Auto and Shutter-Priority Auto exposure modes cannot be used. In such cases, Photo Secretary selects Aperture-Priority Auto exposure mode. c) If the camera is unable to control the aperture (because a non-CPU lens Is attached to the camera or the lens' aperture is not set to its minimum position), Photo Secretary will use the aperture set on the lens. d) If your selected aperture is beyond the controlled range, the F5 automatically adjusts to the nearest proper value. e) In the "Edit Program" dialog box, although you can select functions and modes restricted in the "Custom Functions" dialog box, the actual program shooting will be executed according to restrictions set in the "Custom Functions" dialog box. f) Interrupting (via the computer) a programmed Multiple Exposure shooting set with Photo Secretary will not affect the camera's Multiple Exposure setting.

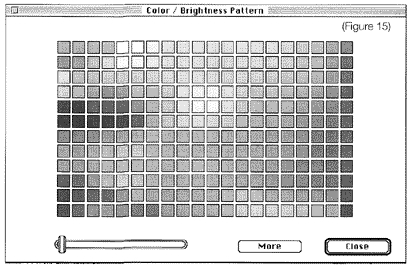

Viewing Status Data Displaying camera status in the Photo Secretary window.
Displaying Metering Status
1. Connect camera body to computer using the MG-34 cable, 2. Turn on the camera power. 3. In Camera Operation, select "Metering Status" in the "Tool" menu and confirm the Color/Brightness Pattern display, as shown in Figure 15. Metering status Is indicated using more than 256 colors, in 12 x 20 cells, utilizing information from the camera. After changing the subject, click on "Mere" to update the display. 4. To charge the displayed metering status contrast, use the slider below the display.

PSimage87.gif PSimage88.gif

Note: a) This function can be used only with the Multi-Meter Finder DIP-30. b) The displayed color data and number of cells are processed to match the computer's CRT.

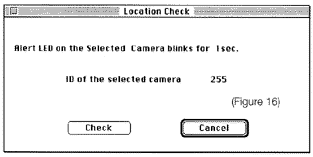

Checking the Camera's Location The alert LED of the selected camera blinks, to check communicating status, or camera's location.

1. Connect camera body to computer using the MC-34 cable.
2. Turn on the camera power.
3. In Camera Operation, open the "Tool" menu and select "Location Check". You will see the dialog box shown in Figure 16. The ID number of the selected camera will appear. Clicking on "Check" causes the alert LED on the selected camera to blink for one second. For details about a specific function, see "Help" menu.


Loading Shooting Data from Camera Photo Secretary for the F5 allows you to select shooting data to be stored in the camera, load shooting data from camera to computer, and display and edit shooting data. In Camera Operation, you can select data items to be stored and load shooting data from the camera.

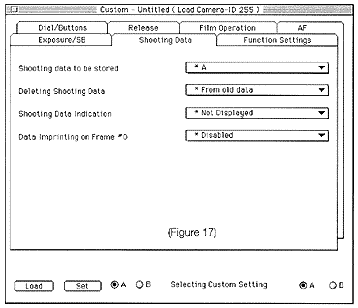

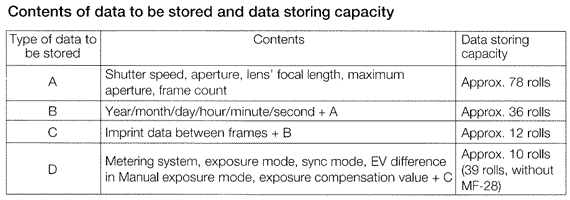

Selecting Data to Be Stored
The F5 offers two types of shooting data - frame data and film data. Frame data is information about each frame. Film data is about each film roll. Select data to be stored by Photo Secretary using the "Custom Functions" dialog box. The selection appears after a new film roll is loaded and before it advances to frame #1,

1. Connect camera body to computer using the MC-34 cable.
2. Turn on the camera power.
3. In Camera Operation, open the "Too[" menu and select "Custom Functions". You will see the "Custom Functions" dialog box shown in Figure 7 in page 19.
4. Select the shooting data you wish to store (from types A to D) in the "Shooting Data" sheet shown in Figure 17 (type A is the default setting). For details about storing data, see "Help" menu.
Note: Only data selected in the "Custom Functions" dialog box will be stored in the camera. Shooting data cannot be stored unless a film roll is loaded. You cannot store data for "Year/Month/Day/Hour/Minute/Second" or data containing characters, unless the MF-28 is attached to the camera. For Multiple Exposure shooting, all selected data will be stored at the first exposure, and after that only data of type A will be stored Shooting data will be always stored when film is loaded; your F5 camera will store data even during test shooting. Shooting data stored in the camera is deleted only when it is downloaded to the computer or replaced with new data. When the camera's memory is full, you can select the action to take using the "Shooting Data" menu plate in the "Custom Functions" dialog box. The "Custom Functions" dialog box enables you to activate full-memory alert (blinking computer symbol). Selecting "From old data" replaces old data with new data, which then activates the blinking full-memory alert. Frequent downloading of shooting data is recommended. If you change the ISO film speed after advancing the film to frame 41, the new data will not be stored.

When using 36-exposure film. Data storage capacity varies according to number of shootings and/or multiple exposure shooting. Data for B and C can be stored only when the Multi Control Back MF-28 is attached. Storage capacity for the F5 can be increased. To add data storage memory, ask your Nikon dealer.


Loading Shooting Data from Camera to Photo Secretary Downloaded shooting data will be stored in the selected folder as a file, with a file name consisting of camera ID number, film number. Selecting "Enable" for "Data Imprinting on Frame 40" in the "Custom Functions" dialog box enables you to automatically imprint the same film number used for the stored shooting data on frame #0.


1. Connect camera body to computer using the MC-34 cable. 2. Turn on the camera power. 3. In Camera Operation, open the "Tool" menu and select "Load Shooting Data". You will see the "Load Shooting Data" dialog box shown in Figure 18. (You can also download shooting data from Film Manager module.) 4. Click on "Load ALL" on the dialog box.

Note: After increasing the memory on your F5 camera, to prevent the camera's meter from automatically turning off while downloading data from the camera to your computer, continue pressing any Exposure compensation, Exposure mode or AF area mode button on the camera.
5. Each item of shooting data will be transferred to your computer as a file. After downloading, the "Delete Shooting Data" dialog box in Figure 19 will request confirmation that you intend to delete shooting data stored in the camera. To do so, click on "Delete."

Note: You cannot display or edit shooting data in the Camera Operation module. To display and edit shooting data, open the Film Manager module by double-clicking on the icon for the "Film Manager" module in the "Nikon Photo Secretary for F5" folder. Pressing the shutter release button on the camera while downloading shooting data to the computer, terminates the download and deletes any data downloaded to the computer. To access deleted data, select "Load Shooting" in the "Tool" menu once again.

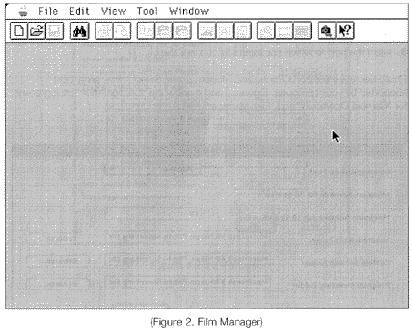

FILM MANAGER The Film Manager module allows you to load shooting data from camera to computer and display and edit shooting data. To open the Film Manager module, open the "Nikon Photo Secretary for FY folder and double-click on the icon for the "Film Manager" module. * In Film Manager, you cannot select the data to be stored by Photo Secretary. Select your desired data using the "Custom Functions" dialog box.

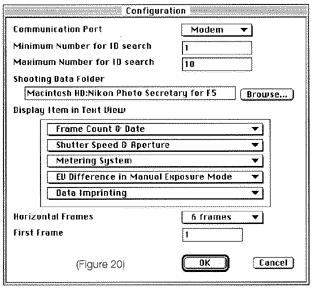

Configuration The "Configuration" dialog box enables you to choose Photo Secretary's configuration settings without turning on the camera.

1. Open Photo Secretary's Film Manager module. Select "Configuration" in the "Tool" menu to access the "Configuration" dialog box shown in Figure 20.
2. After choosing your settings, click on "OK" to save the configuration. * For details about specific items, see "Help" menu.

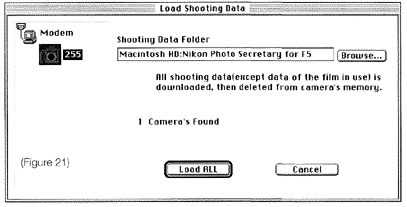

Loading Shooting Data from the Camera Loading Shooting Data from the Camera to Photo Secretary, 1. Connect camera body to computer using the MC-34 cable, 2. Turn on the camera power, 3. In Film Manager, select "Load Shooting Data" in the "Tool" menu to access the "Load Shooting Data" dialog box in Figure 21.
4. Click on "Load ALL" on the dialog box. If you see "0 Camera's found" on the dialog box in Figure 21, you have not established a link with your camera. Check your cable link connections and serial port settings (see "Configuration" section. 5. Each item of shooting data will be transferred and stored to your computer as a file, with a file name consisting of the camera ID number and film number. To display shooting data, open the "File" menu and select "Open" (see page 43). After downloading shooting data from the camera to the computer, the dialog box in Figure 22 will appear, allowing you to confirm your intention to delete shooting data stored in the camera, To do so, click on "Delete."

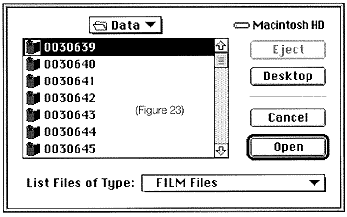

Viewing Shooting Data Files In Film Manager, select "Open" in the "File" menu to access the "Open" dialog box shown in Figure 23. Select your desired file and click on "Open," or double-click on the icon, to display the data. (Only files in Film Manager file format can be read by Photo Secretary.) Photo Secretary allows you to select the display format of shooting data: Thumbnail & Text, Text, or List. To change the format, open the "View" menu followed by "Thumbnail & Text," "Text," or "List." Each format displays the film title, with ISO rating, comments about film and frames appearing in the top of the downloaded data. * For details on the different display format, see "Help" menu

PSimage96.gif PSimage95.gif


Editing Data Files Photo Secretary enables you to edit data files and link data to image data.

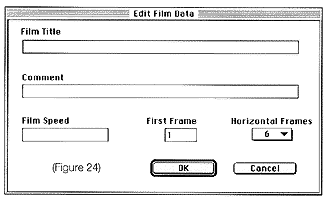

Editing Film Data 1. Display data files you intend to edit by selecting "Open" in the "File" menu in Film Manager. Then select "Edit File" in the "Tool" menu and you will see the "Edit Film Data" dialog box in Figure 24. Choose your desired display format for shooting data . 2. Input or correct the film title, comments, or film speed in the dialog box. You can also change the display position of the first frame and the number of frames in the horizontal line. 3. After making your charges, click on "OK" on the dialog box. * For details on specific functions, see "Help" menu.

PSimage98.gif PSimage97.gif

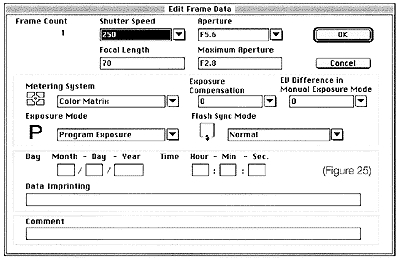

Editing Frame Data
1. Display data files by selecting "Open" in the "File" menu in Film Manager. Select the frame you wish to edit and select "Edit Frame" in the "Tool" menu, or double-click on the frame you wish to edit. You will see the "Edit Frame Data" dialog box in Figure 25. 2. Edit the frame data, then click on "OK" on the dialog box. (Deleting any item causes frame data to revert to the original data.) For details on specific functions, see "Help" menu.

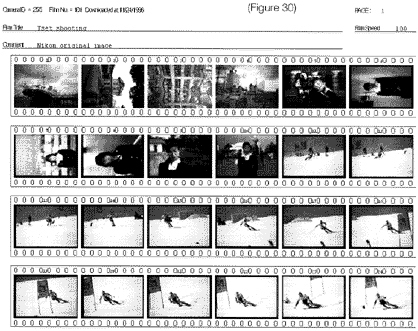

Linking Images to Shooting Data 1. Display desired data files by selecting "Open" in the "File" menu in Film Manager, then select "Thumbnail & Text" from "View" to display the data in Thumbnail & Text format. 2. Select the frame to which you want to link an image. 3. Select "Photo Finder" in the "Tool" menu to display the Photo Finder window shown in Figure 26.

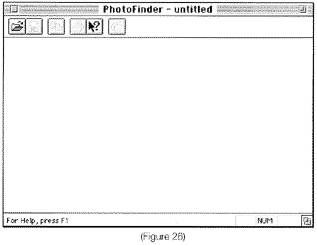

4. By selecting "Open" in the "File" menu in the Photo Finder window, you can download image data from a scanner (not supported with TWAIN device), which you want to link with your desired shooting data, or select a PICT file or image data that is on photo CD. 5. Select "Exit & Return..." in the "File" menu in Photo Finder. The dialog box in Figure 27 will appear. Click on "Yes" to link the image data to the selected frame of shooting data.

Images linked to frame data can be moved to other frames in the same shooting data by dragging. To view the source of a linked Image, open the "Tool" menu and select "Photo Finder". * For details on specific functions, see "Help" menu.

Finding Shooting Data Search through shooting data by inputting keywords, without having to open files, 1. Select "Find" in the "File" menu in Film Manager to display the "Find Data" dialog box in Figure 28. 2. Input characters you are searching for in the boxes for Film Number, Film Keyword, Day, Time or Frame Keyword. 3. Click on "Find" or the dialog box to start searching for items located in the folder indicated in the Folder box. 4. To open a found file, double-click on the name of the found file (shown as a result of the search). For details on specific functions, see "Help" menu.

Note: a) Search operations are normally performed with a character string. To search files by word, check the "type in the word" box on the dialog box. b) Searches are case sensitive, distinguishing between capital and lower case letters unless you check "Ignore case" on the dialog box.

Converting Data Files To convert files or frames to text format, use the "Convert Data" function. When saving data as delimited text, the first line of text will always be film data, and the data will be separated with commas.

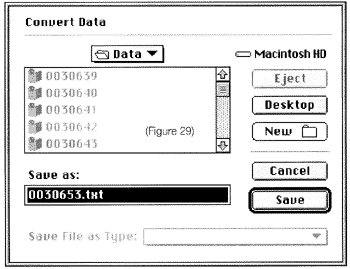

1. Display data files by selecting "Open" in the "File" menu in Film Manager. Select the frames you wish to convert to text format. In Film Manager, open the "Tool" menu and select "Convert Data" to open the "Convert Data" dialog box in Figure 29. 2. Input a file name, and then click on "Save" on the dialog box,


Printing from Photo Secretary Photo Secretary allows you to printout one shooting data file in List View mode. Photo Secretary uses the standard Macintosh@ printing system, As a Macintosh user, you should be familiar with the use of "Print" dialog boxes you will see in Photo Secretary. Photo Secretary supports very basic printing,

Shooting data files will be printed according to the display format:



Thumbnail & Text-prints out thumbnail images as displayed in Figure 30.

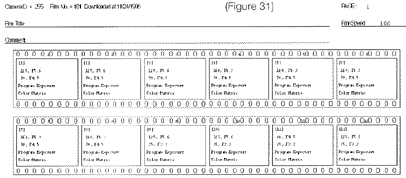

Text-prints out shooting data as displayed in Figure 31.

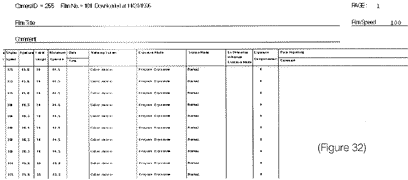

PSimage99f.gif - List-prints out shooting data as a list (see Figure 32).


PHOTO FINDER P
hoto Finder allows you to rotate images and link them to shooting data. To open the Photo Finder module, open the "Nikon Photo Secretary for FY folder and double-click on the icon of the "Photo Finder" module.

The Photo Finder module:

a) Opens and displays PICT files.
b) Downloads images from a photo CID to the computer.
c) Rotates displayed images 90 degrees to the right or Ieft
d) Stores original image data in the computer in PICT image format.
e) Prints out displayed images.

TROUBLESHOOTING

Trouble Cause and remedy
Camera will not communicate with computer   If your computer uses a single serial port for both modem and printer, set it to the modem port setting. Open the "Tool" menu, select "Configuration", then set "Communication Port" at "Modem".
Frequent communication errors   Communication through networks may require substantial memory and could cause frequent errors. Deactivating Apple Talk may reduce errors. Select "Chooser" from the Apple Menu, then set 'AppleTalk" to "Inactive".
Error message appears when opening a shooting data the or image file from a DOS formatted floppy disk.   Opening a file from a DOS-formatted floppy disk, formatted on a Windows(a)-based computer, may cause errors. If such an error occurs, initialize the disk in DOS-format on a Macintosh computer.
"Not enough memory" message appears during operation   Insufficient virtual memory may result in a lack of operating memory. Open "Memory" in the "Control Panel", then set virtual memory to "On" to increase the available memory.
System error occurs while using "Balloon Help" with this software.   This software does not offer "Balloon Help" support. Do not attempt to activate "Balloon Help" displays while using this software.
System error occurs while dragging and dropping a data file over the Printer icon.   This software does not support the printout function that allows you to drag and drop data into the "Printer" Icon. Do not attempt to drag and drop data into the "Printer" icon.


Update: The Photo-Secretary for Nikon F5 has a note to rectify some mistake made for the print copies (shown at left hand side).

Call for help: I don't have a PC version (nor a OS-X version - if ever it exists) which I supposed the content / inteface of a PC within could be very different from the Mac version - IF you have a copy and think this website should also have a PC-version to support the PC users - you can contribute by scanning the pages and let me have a look at it and see if I can create a separate PC- page of thsi Photo Secretary. It may not be viable now but in the years ahead, it may proved to be extremely useful among all Nikon users. Lastly... (hopefully you never pay attention to this:- mail me if you intend to get the installer Disk Images (1 x 8 x 1.4MB)

| Back | Main Index Page - Nikon F5 Professional SLR camera

The Camera - Background, Issues & Summary

Basic Features | Focusing | Metering Systems | Exposure Control | Reliability Issues | Nikkor lens Compatibility

Prisms
/Finders -
Index page - 2 parts
Film Backs:
Index Page - 1 parts
Focusing Screens -
Index Page - 1 part
Flash System -
Index Page - 3 parts
System Accessories: |
Power Sources | Cases | Remote Control | Miscellaneous

Macro Photography - Related info on Micro-Nikkor lenses

Technical
Specification for Nikon F5
Main Reference Map / Nomenclature

Resource Centre
: Instruction Manuals
Nikon F5 Camera Body - 18 parts
MF-28 Multi-Function Back HTML - 8 parts
PC Links - Photo Secretary - 2 parts
AF-TTL Speedlights: SB-28 / SB28DX | SB29(s) info | SB30 | SB50DX | SB80DX | SB600 info | SB800

Variants:
F5 50th Anniversary Model | Nikon/Kodak DCS-620 | DCS-720 Digital Still SLR camera | NASA-modified Nikon F5

| Back | Index Page of Digital Nikon SLR cameras
| Back | Main Index Page of Pictorial History of Nikon SLR cameras

weblibrary.gif   Nikon F | Nikon F2 | Nikon F3 | Nikon F4 | Nikon F5 | Nikon F6 | Nikkormat / Nikomat | Nikon FM | Nikon FE/ FA | Nikon EM/FG/FG20 | Nikon Digital SLRs | Nikon - Other models

The Eyes of Nikon:-

Nikon Auto Focus Nikkor lenses:- Main Index Page
Nikon Manual Focus Nikkor lenses:- Fisheye-Nikkor Lenses - Circular | Full Frame | Ultrawides Lenses - 13mm15mm18mm20mm | Wideangle Lenses - 24mm28mm35mm | Standard Lenses - 45mm 50mm 58mm | Telephoto Lenses - 85mm105mm135mm180mm & 200mm | Super-Telephoto Lenses - 300mm 400mm 500mm 600mm 800mm 1200mm |

Nikkor Link.jpg

Index Page
  Special Application lenses:
Micro-Nikkor Lenses - 50mm~55mm -60mm 85mm -105mm 200mm Micro-Zoom 70-180mm
Perspective Control (PC) - 28mm 35mm PC-Micro 85mm
Dedicated Lenses for Nikon F3AF: AF 80mm f/2.8 | AF 200mm f/3.5 EDIF
Depth of Field Control (DC): 105mm 135mm
Medical Nikkor: 120mm 200mm
Reflex-Nikkor Lenses - 500mm 1000mm 2000mm
Others: Noct Nikkor | OP-Nikkor | UV Nikkor 55mm 105mm | Focusing Units | Bellows-Nikkor 105mm 135mm
Nikon Series E Lenses: 28mm35mm50mm100mm135mm | E-Series Zoom lenses: 36~72mm75~150mm70~210mm


MF Zoom-Nikkor Lenses: 25~50mm | 28~45mm | 28~50mm | 28~85mm | 35~70mm | 36~72mm E | 35~85mm | 35~105mm | 35~135mm | 35~200mm | 43~86mm | 50~135mm | 50~300mm | 70~210mm E | 75~150mm E | 80~200mm | 85~250mm | 100~300mm | 180~600mm | 200~400mm | 200~600mm | 360~1200mm | 1200~1700mm

Tele-Converters: TC-1 | TC-2 | TC-200 | TC-201 | TC-300 | TC-301 | TC-14 | TC-14A | TC-14B | TC-14C | TC-14E | TC-16 | TC-16A | TC-20E

Recommended links to understand more technical details related to the Nikkor F-mount and production Serial Number:
http://rick_oleson.tripod.com/index-153.html by: my friend, Rick Oleson
http://www.zi.ku.dk/personal/lhhansen/photo/fmount.htm by: Hansen, Lars Holst
http://www.mir.com.my/rb/photography/hardwares/nikonfmount/lens2.htm
http://www.photosynthesis.co.nz/nikon/serialno.html


Howkiat 3D F5 logo.gif
| Message Board | for Nikon F5 Series SLR model(s) |

|
Message Board | for your Nikon Optics in a shared environment
| Message Board | Specifically for Dispose or Looking for Nikon/Nikkor Photographic Equipment

W A R N I N G: The new G-SERIES Nikkor lenses have removed the conventional aperture ring on the lense barrel, they CANNOT adjust aperture(s) when operating in manual exposure control even with certain earlier MF/AF Nikon SLR camera models. But they are FULLY COMPATIBLE with the Nikon F5 featured here in all usable metering systems and/or exposure modes. Please refer to your local distributor for compatibility issue(s).

MIR Logo
HOME - Photography in Malaysia


A resource dedicated to my kids, Alvin Foo & Esther Foo- one day, BOTH might need to use all these information for his/her Nikon F5A camera.

Volunteered Maintainer(s) for the Nikon F5 Message Board: Tony Davies-Patrick, UK; Rick Oleson, US; Koh Kho King, Malaysia.

Credit: Mr. Chuck Hester, US for his text re-editing skill for this site; Our staff, HowKiat® who created the 3D-Nikon F5 logo. Mr. Lew Chee Wai of YL camera for lending his F5 for me to take some shots appeared in this site. All those nice folks who have contributed their images, in particular Mr. Mike Long, Edwin leong, Palmi Einarsson, Sergio Pessolano, Fred Kamphues, Harry Eggens, Curtis Forrester, Nick (Natures Moments), Sandra Bartocha; fellow countrymen, Vincent Thian, Koh Kho King, Philip Chong, CY Leow etc. and contributions from a few nice folks from Photo Malaysia Forum. Disclaimers & acknowledgments: Certain content and images appeared in this site were either scanned from official marketing leaflets, brochures published by Nikon and/or contribution from surfers who claimed originality of their own work for public publishing in this website, where majority of the extracted information are used basing on educational merits. The creator of this site will not be responsible for any discrepancies that may arise from any possible dispute except rectifying them after verification from respective source. Neither Nikon or its associates has granted any permission(s) in using their public information nor has any interest in the creation of this site. "Nikon", "Nikkormat", "Nippon Kokagu KK" "Silent Wave", "Focus Tracking Lock-on", "Nikkor" & other applicable technical/business terms are registered trade name(s) of Nikon Corporation Inc., Japan. Site made with an Apple G5 IMac.

.
