Modern Classic SLRs Series
Nikon F - Reference Map for Camera Body

- Front | Top | Back | Base View -
File Size for this page: 111k
(appro 31 sec for 28.8; 16 sec for 56.4 modem)

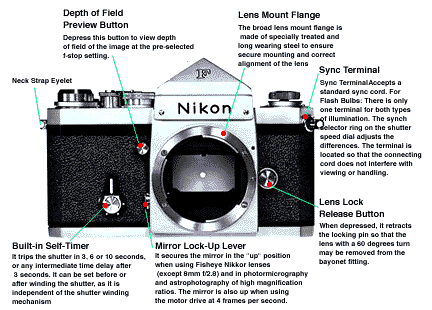

Main Body Front View.gif (11k) See if Pdf file is more viable...

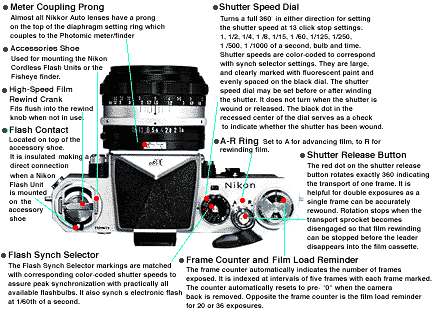

Main Body Yop View.gif

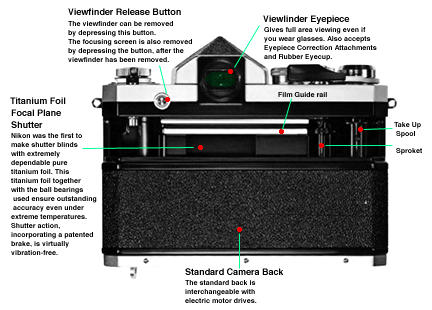

Main Body Back View.jpg (33k)

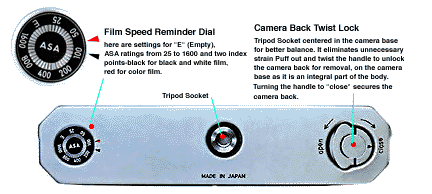

Main Body Base view. gif (11k)

Modern Classic SLRs Series
Nikon F - Reference Map for Body

PDF
(170k without FT n Finder)

Acrobat

PDF
(288k with FT n Finder)

Main Reference map in HTML & PDF:
Body with FTN Finder | FTN finder | camera body |
