Modern Classic SLRs Series :
Nikon FM - Viewing Section
DOF and Its main reflex Mirror mechanism


File Size: HTML Page (33k) Loading ...

Depth-of-field (DOF) preview

Conveniently shaped in the form of a lever and positioned for easy, coordinated activation by either the right index or middle finger, this control, when pressed, 'stops down' (A photographic term which means close the iris diaphragm of the blades in the lens) the lens to its taking aperture.

FM 1977.jpg (18k)
The photographer can then see exactly which elements of the picture will appear in sharp focus in the actual photograph, even though some of them may have appeared otherwise prior to pressing the lever. This is a clear departure from the mechanical Nikkormat FT series, where the DOF preview is via a button located at the top of the camera. It was not the first, the electronic Nikkormat EL series were already adopted this in 1972.

While the lever is kept pressed, the lens iris is not wide open (unless, of course, the photographer has set the lens to its maximum aperture); naturally, the image in the viewfinder 'darken' and will become even more so as smaller apertures (i.e., bigger f/numbers) are set. Note that you get more depth of field with smaller apertures. It should be mentioned that the selective use of depth of field through lens aperture manipulation, in accordance with any given picture-taking situation, is a significant camera operation since it is often closely connected with the creative effects that will be found in the actual picture. The FM's depth-of-field preview control has another function. It is used for stop-down (i.e., not at full aperture) exposure measurement with Nikkor lenses that do not have the AI (automatic aperture indexing, where a lens will automatically set to its largest aperture when mount to the camera for brightest possible image for view and focusing, stop down to the actual aperture value when you trip the shutter release button for an exposure) facility. This is an indispensable feature when you are frequently involved with creative depth of field priority assignments. For instance, close up, portraiture photography.

Reflex Mirror Mechanism

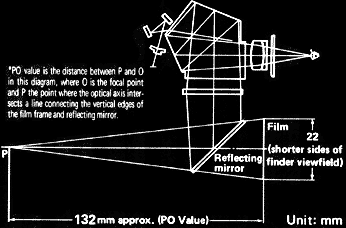

Although the FM is not the tiniest lot of the compact SLRs available in the market. But at its relatively compact body, it houses a very large reflex mirror in its main chamber. Employing a unique retraction system, the mirror's hinge mechanism moves back, then up, as the mirror itself flips out of the optical path when a picture is taken. This system, which was originally proven on the F2, has made it possible for the FM to employ a reflex mirror with a PO value
* (see illustration) that is substantially larger than what one would expect in such a compact camera. Note also how the aperture direct readout (ADR) works.

PO value.gif (11k)
The advantage of this extra-large size is that there is no image cutoff when the photographer uses a super-telephoto lens as long as 880mm or such close-up accessories as bellows and extension tubes for high magnification works. Noise and shock during the mirror's movement are further absorbed by the use of an air-damper in the mirror box. The mirror's back itself is specially treated to prevent flare-forming reflections off the back when the mirror is in the flip up position.

It should likewise be pointed out, too, that in motor-drive photography, it is the mirror mechanism that takes most of the punishment of the pounding motor drive. The FM's mirror mechanism, which is based on that of the reliable professional F2, is more than tough enough to take the demanding tension in motorized photography of up to 3.5 frames per second.

Mirror Mechansim.gif (8k)
However that since the FM omitted the a mirror lock up mechanism as with all the earlier Nikon (Including all the Nikkormat), some of the special lenses like the 6mm f/5.6 and 10mm f/5.6 fisheye Nikkor cannot be mounted onto the camera body.
