Leica M3 double
stroke model with an early Serial Number 700131
"..You are bidding a most important
Leica collection, Leica M3 early, #700131, made in 1954, the first version of M3,
you can look it as an prototype M3, some different with later M3. It comes with a
Leica Elmar 50mm f2.8 lens and original leather case. This M3 is an original one,
with glass plate, unaltered ...". Indicative Auction Start price of USD6380-00.
Credit: Image(s) of this rare, highly collectible M3-700131 courtesy of Mr. LIUZAN from DigifanCN®.
The group also operates
their own active, popular EBAY STORE,
trading for many major
camera brands and collectibles. Image Copyright © 2008. All rights reserved.
Please respect the visual property of the contributing photographer.
|
|

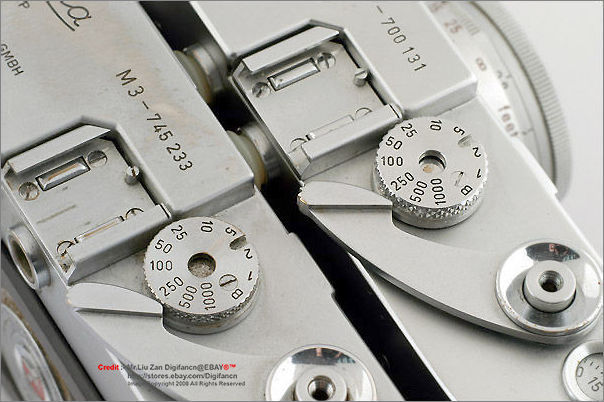

Comparison of differences
between early Leica M3 double stroke with the later single stroke model.
Please take notice that this M3-700131 has other differences with - even the M3 double
stroke models ! the auctioneer DIGIfan® is a very seasoned camera trader. He
knows these differences and has taken many details in each of them which include
the comparative illustration between new and older models to allow potential collectors
to see what to expect. This has made this profile with so many good illustrations
in visual. Thank You.
|
|
|
The film track casting in the first
few hundred of M3 has a different design. Later models has double rails design. This
is one of the most common reference point to identification. Serial number inscribed
inside the base (requires the base removal of two levels of plates to see this).
|
|
|
|

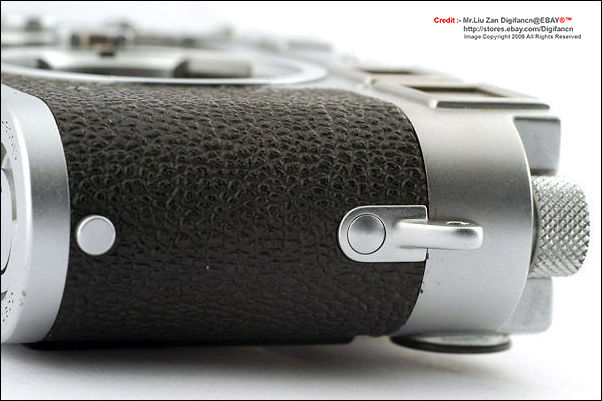

Early models has other tiny differences,
which includes the shape/design of the eyelet on both sides. It has a triangular
/ angle design. Later models use rounded contour design.
|
|
The highly collectible
1954's Leica M3 chrome, Double Stroke 700131 featured above has been packaged with
a Leitz Wetzlar ELMAR 1:2.8/50mm during the auction. The lens was probably just to
dress up the camera for the bidders. The shown optic has dual scales in feet/metres
which would suggest it was a late model. The ELMAR 50mm f/2.8 was a re-computed optic
evolved from the original Elmar with a slower f/3.5 and uses rare earth glass. The
M bayonet mount lens was first introduced in 1957/8 but it had been released in both
both SM and Bayonet.
| Summicron-M Collapsible 2/5cm Prototype, 1952 | A matching Summicron 2/5cm used on M3 S/N 100782 |
|
