Leica MP w/ choice of variable viewfinder magnification ratio - MIR Image Library




LEICA MP Chrome, 0.58X (10303), 06.2003

The LEICA MP is offered with three variable choices in different viewfinder magnifications of 0.58 x, 0.72 x, and 0.85 x. In a very nice way to put it, the alternatives are tailored ideally to the preferences and needs of the photographer: The smallest magnification option, the MP 0.58 x magnification can be ideal if 80% of the works by the photographers are using with wide-angle lenses. The smaller magnifications has another significant convenience for eyeglass wearers as the entire view field can be observed through a slight distance away from the eyepiece The 0.58X magnification finder MP was originally offered as one of the three standard MP. But due to lack of large volume of specific interest, Leica had decided to make it as an option in the exclusive
à la carte* range - a division setup by Leica AG to tailor made Leica for special request. Please take note that, 0.58X magnification finder has only been used in the previous M6 TTL as well as offered in the new Leica M7.

Regardless the magnification, the viewfinder principle of all Leica MP remains the same. It offers a large, bright line frame viewfinder with automatic parallax compensation. The Eyepiece is calibrated to -0.5 dpt with alternate options for correction lenses from -3 to +3 diopter. The bright line frames activated in pairs and automatically displayed when the lens is mounted. The preview selector can be used to display each of the pairs of frames. Alternative bright line frame configurations are available as part of the Leica a la carte range. The horizontal and vertical difference between the viewfinder and the lens is automatically compensated in line with the current distance setting. Split and superposed-image ranger finder displayed as a bright field in the centre of the viewfinder image. Effective measuring basis for 0.58X finder is approx. 40.2 mm (mechanical measuring basis 69.25 mm x viewfinder magnification 0.58x). Please take notice that on the LEICA MP 0.58X model, five frames are activated for the focal lengths up to 90mm (28+90mm, 35mm, 50+75mm). Please take note of the single focal length of 35mm offered in the 0.58X MP model.

What significant is 0.58X finder delivers in actual photography ? It has its strength and convenience esp. for eyeglass wearer. But smaller magnification also means smaller image inside the viewfinder. For an example, in comparison with a typical 0.72X universal finder, the viewfinders projects a smaller image in the 0.58X models for the 50 frameline. As focusing is still manual with the MP, it may need a little extra effort and precise adjustment of focus. Further, brightline frame for some popular focal length such as 135mm will not be shown. that is all.

Leica MP 0.58x finder model with Leica Elmar-M 1:2.8 f=50mm lens
Leica MP chrome 0.58x finder model  front view

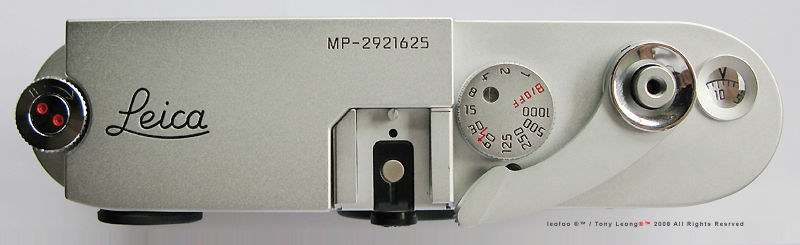

Camera top plate, Leica MP chrome 0.58x finder model, 2003

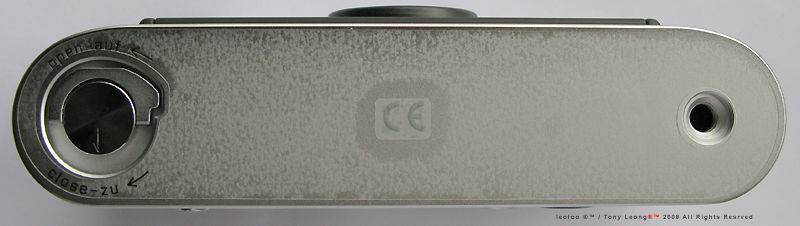

Base plate,  Leica MP chrome 0.58x finder model, 2003
 Leica MP chrome 0.58x finder model, 2003 rear section view with ASA film speed index disc

Leica MP 0.58X model maintains a high quality Leica tradition. Except for the rear film reminder disc section which I thought can be improved upon, overall, I would still think the physical built quality is exceptional and could lasts a few decades of hard use. In a world dominated by digital imaging, it remains a a purist camera which serves the traditional photographers.

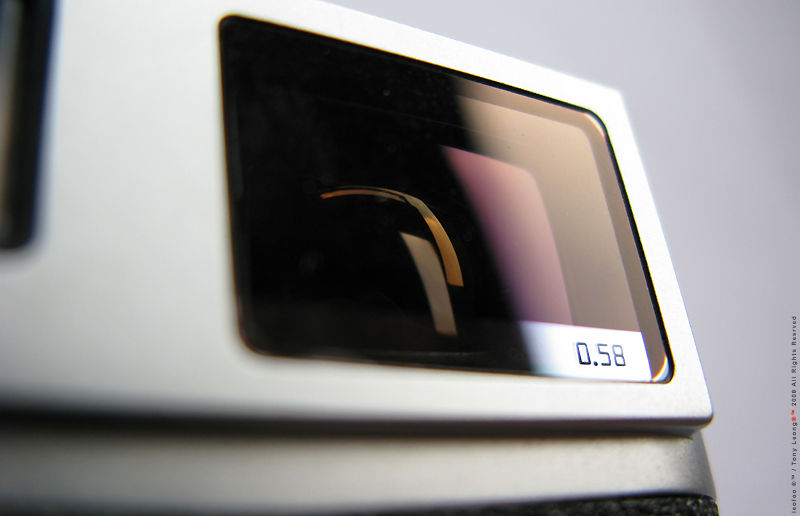

Viewfinder magnification 0.58X,  Leica MP chrome 0.58x finder model, 2003

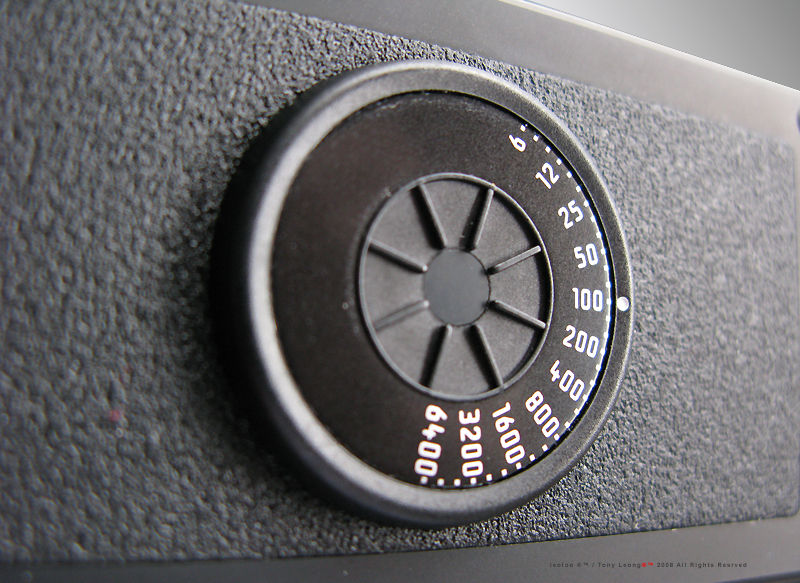

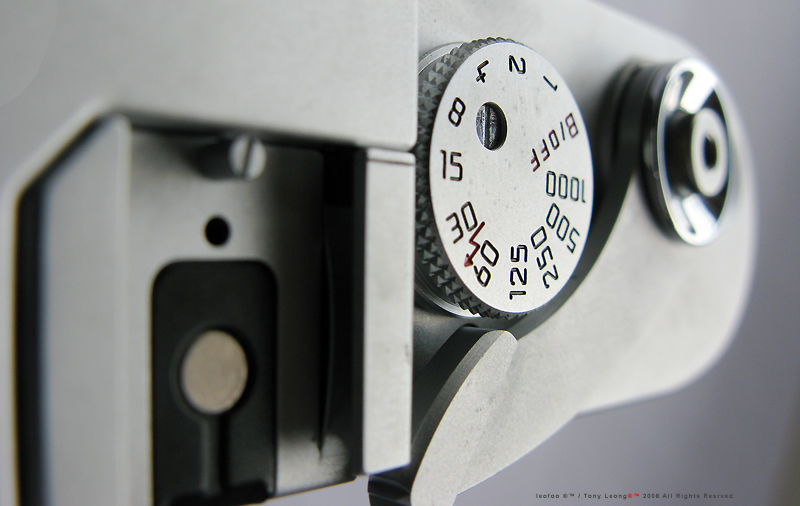

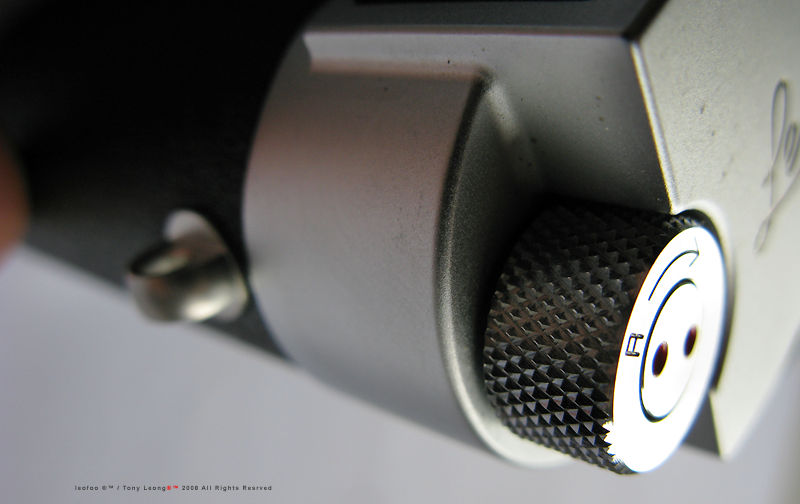

All metal construction on key camera control features,  Leica MP chrome 0.58x finder model, 2003.Film rewind knob,  Leica MP chrome 0.58x finder model, 2003Film speed ASA index disc, ASA 6~6400,  Leica MP chrome 0.58x finder model, 2003
 Leica MP chrome 0.58x finder model, 2003 with Leica ELMAR-M 50mm f/2.8

A LEICA MP 0.58 Silver chrome finishing model, sold in Japan.

A LEICA MP 0.58 Silver chrome finishing model, sold in Japan.


Leica (M6 TTL, MP or M7) with 0.58X is considered more rare than others. The rarity element is contributed by less interest in getting a wideangle lens-specfic Leica. But it is also meant for specific reason for those who intended to get a 0.58X finder. Presumably, Leica only offered this alternative in silver chrome finishing and for those who specifically requested for black lacquer finishing, it can be ordered through Leica
à la carte service. However, the next chapter has a black Leica MP 0.58X (10304) model but I am not sure if it was a à la carte MP.
